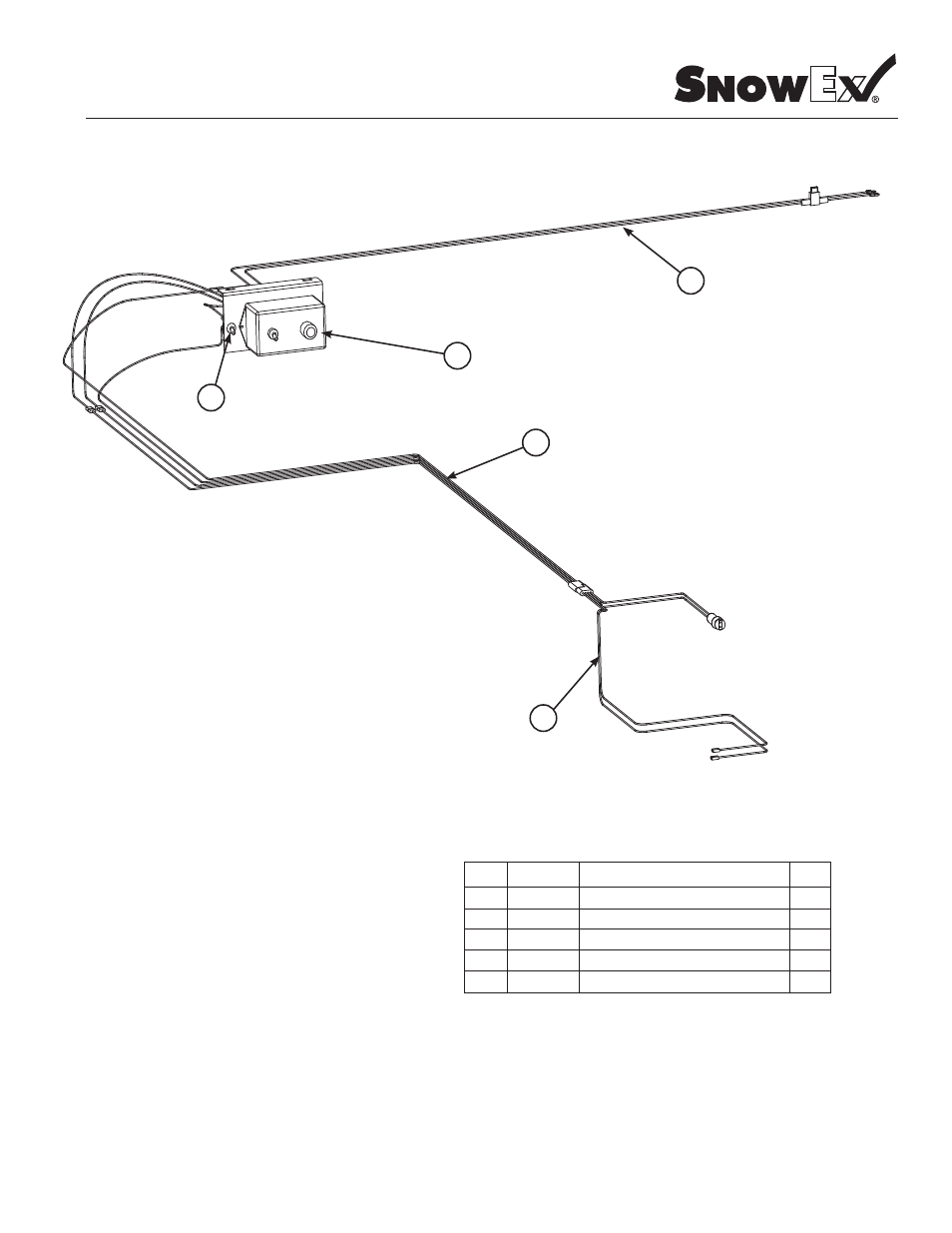

Control and Harness Diagram
Model # SP-100
Key Part No. Description Qty
1 D6474 Spreader Control | Utility 1
2 T15028 Vehicle Harness | 189” 2
3 T15083 Switch Assembly | DPDT 1
4 T15084 Spreader Harness | 43” 1
5 T15085 Control Power Cable | 144” 1
IMPORTANT: Do Not modify harness length. Any modifications
will void warranty.
Special Notes:
1) All external connections must have dielectric grease.
2) Read lead labels before attaching to power source or ground.
3) No other devices may be spliced into wiring harness.
4) Any repairs to wiring harness must be done with heat shrink butt
connectors.
