ShelterLogic 71534 Peak Style Storage Shelter 12 x 20 x 8 User Manual
Page 5
Page 6
STEP 10: INSTALLING THE
COVER ON THE FRAME:

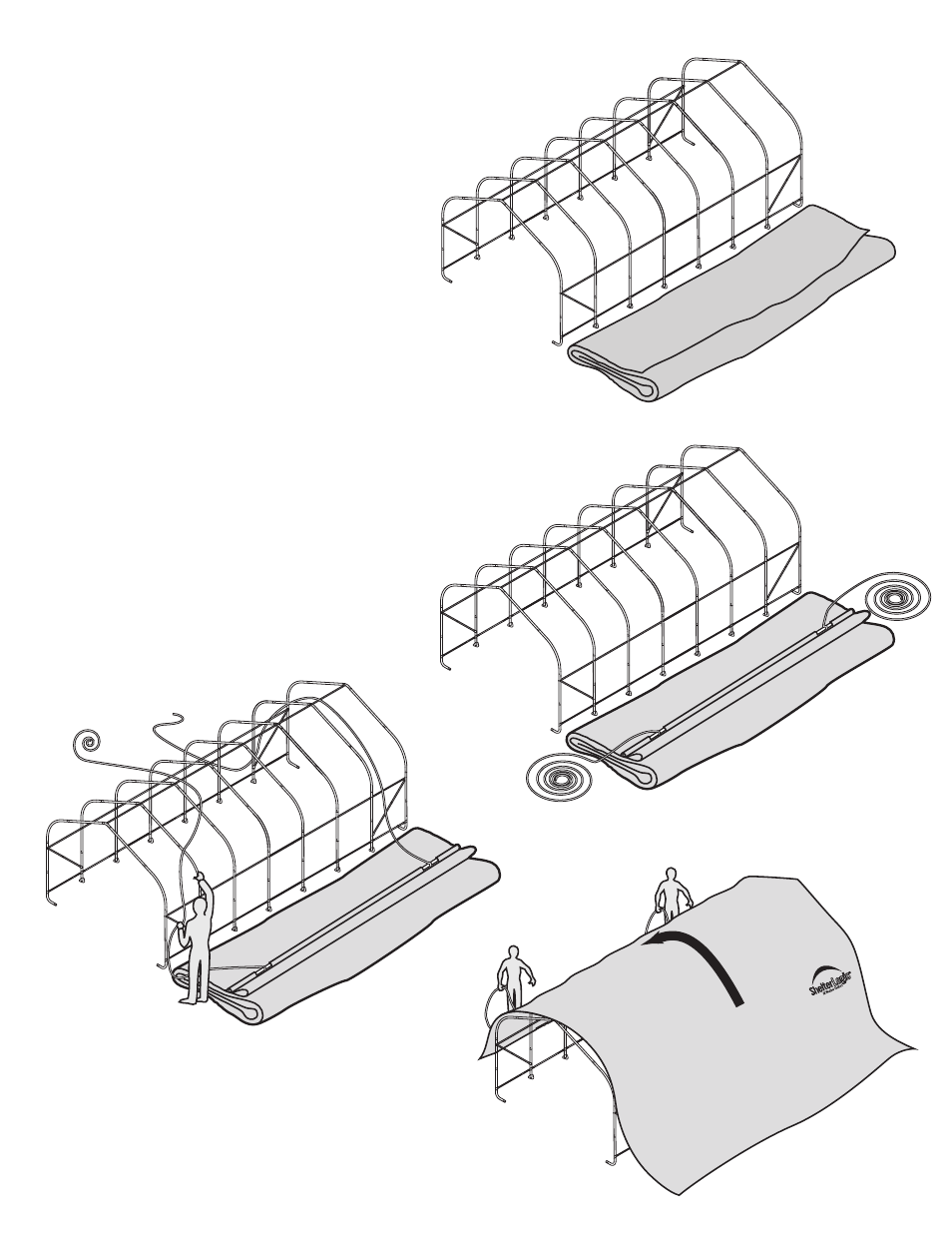

Fig. 10A, 10B, 10C & 10D
1.
Lay the cover on the ground next to the
frame with the inside of the cover (the side with
the pipe pockets) facing down and the webbing
on the front and rear of the corner of the
building. Position the cover so that it is
centered on the frame, front to back. Fig. 10A
2.
Fold over the side closest to the frame so
the pipe pocket is now accessible. Insert a
cover pipe at the first middle rib from the front
and the first middle rib from the rear so that it is
inserted in the pipe pocket on both ends of the
pipe but the center of the pipe is exposed. For
long buildings it may be necessary to use
additional pipes in the middle. Fig. 10B
3.
Tie the rope on each of the exposed pipes
and throw the other end of the rope over the
frame. FIg. 10C
4.
Move to the other side of the frame and pull
the cover over the frame with the rope. This
may require two or more people. Fig. 10D
Fig. 10A
Fig. 10B
Fig. 10C
Fig. 10D
