Connect front end rib to middle rib, Ab a b a, Cd f f – ShelterLogic 70423 8 x 8 x 8 Shed-in-a-Box User Manual
Page 5
05_70423_G3
Page 5
01010
801293
03032
e

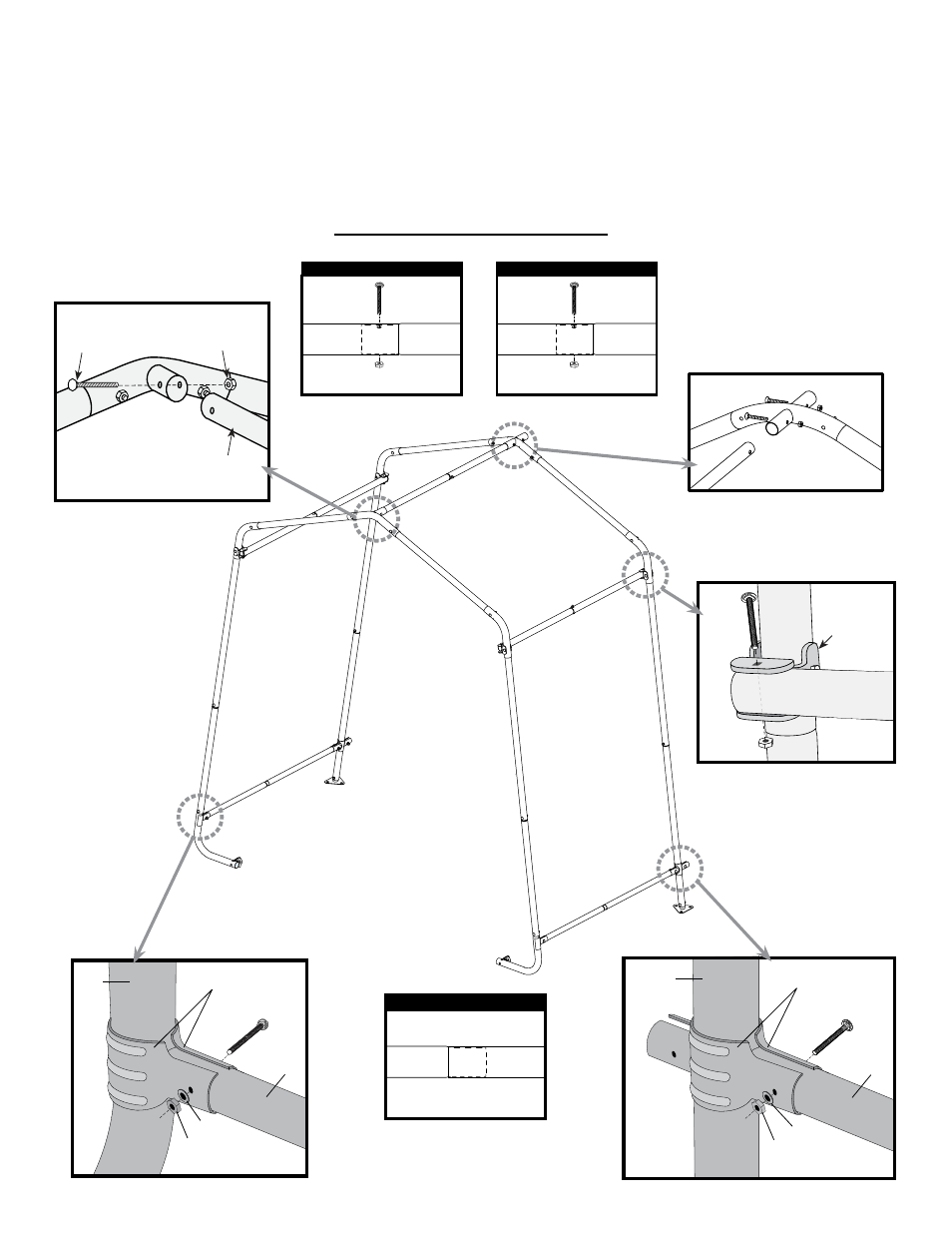

3. connect Front enD riB to MiDDle riB
10115
Cover
Rail
13202
01011
01010
10115
13201
Middle
Rib
01010
01011
Cover
Rail
A. Assemble 2 Side Cross Rails using parts as shown.
B. Assemble 1 Top Cross Rail using parts as shown.
C. Assemble 2 Cover Rails using parts as shown
D. Connect the 2 Side Cross Rails at the Shelterlock
®
3X (800938).
E. Connect the Top Cross Rail at the 3- and 4-Way Connectors as shown.
F. Place a Cover Rail at each leg and secure it with a Cover Clamp as shown. Slide the Cover Rails so they
are 8 inches up from the ground.
Only HAND-TIGHTEN these bolts!
Assemble Cover Rails
A
B
A
B
A
Assemble Side Cross Rails
Assemble Top Cross Rail
800703
13345
800703
800704
801293
800704
13344
800704
800704
800704
801293
800703
10115
10115
01010
01010
13345
13344
No Bolt at this connection
c
c
c
D
F
F
800938
03032
01010
Cross Rail
801277
03032
01010
800704
13345
13344
End
Rib
e
