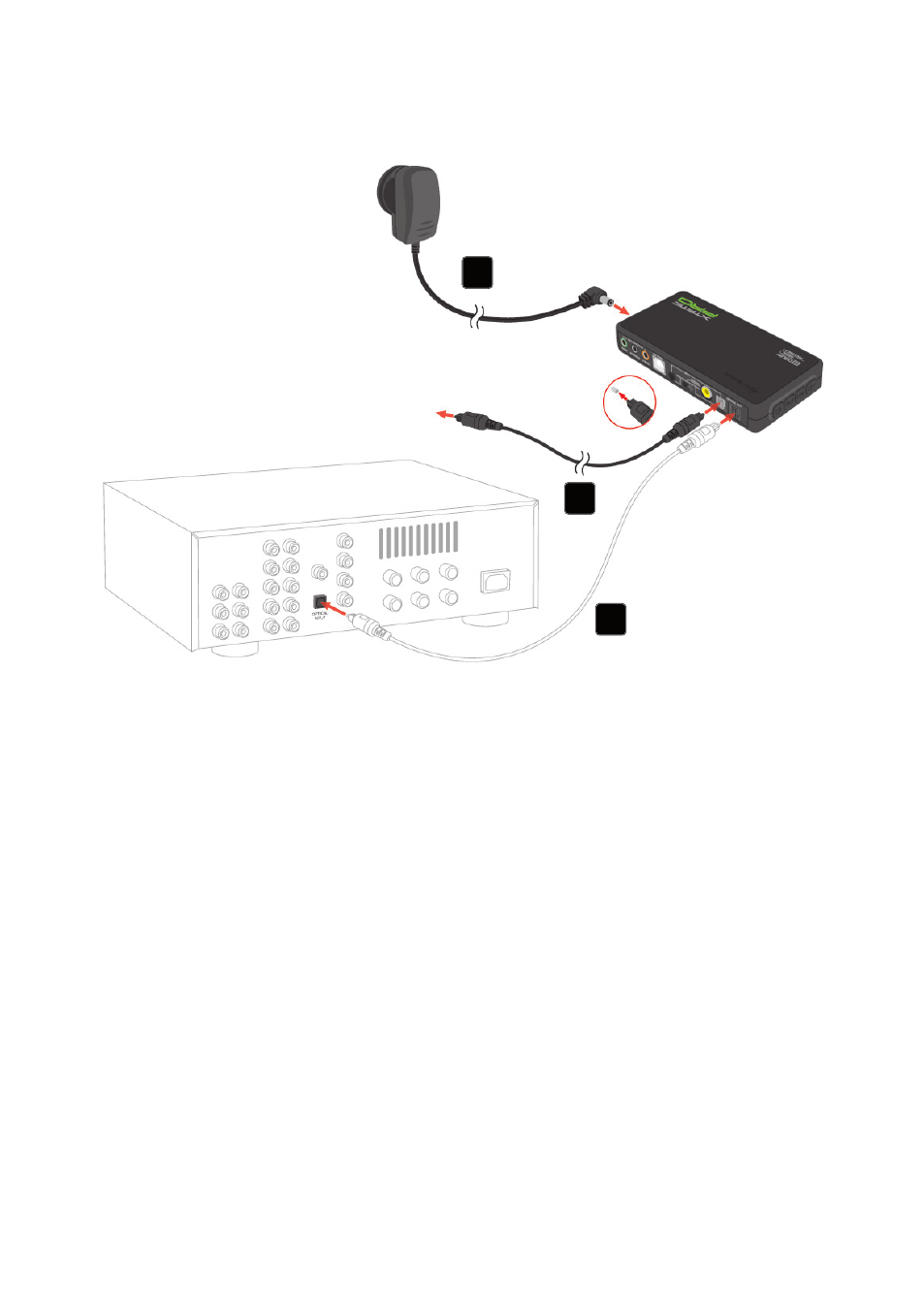

12. Connecting an amplifier
(or other device with optical audio in) to the SCU
1. Connect the included optical cable (remove protective caps on both ends!) to the
optical audio output of the sound source and the SCU’s optical audio input (grey lid).
2. Connect an additional optical cable (not included) to the optical audio output
of the SCU (black lid) and the optical audio input of the amplifier/other compatible
device.
3. Connect the power adapter of the X-Tatic to a wall outlet and the SCU‘s ISO
power jack.
4. Switch on the SCU, the audio source and the amplifier/other device.
Note:
For more convenience the SCU provides optical output to other devices. This output
only provides a pass through of the raw signal. The signal still needs to be decoded
by your amplifier.
To pass through the optical signal the SCU must be powered on.
The optical output only works, when the SCU receives a digital signal input (coaxial
or optical).
1
2
3
 
