scorpio 1000/2000

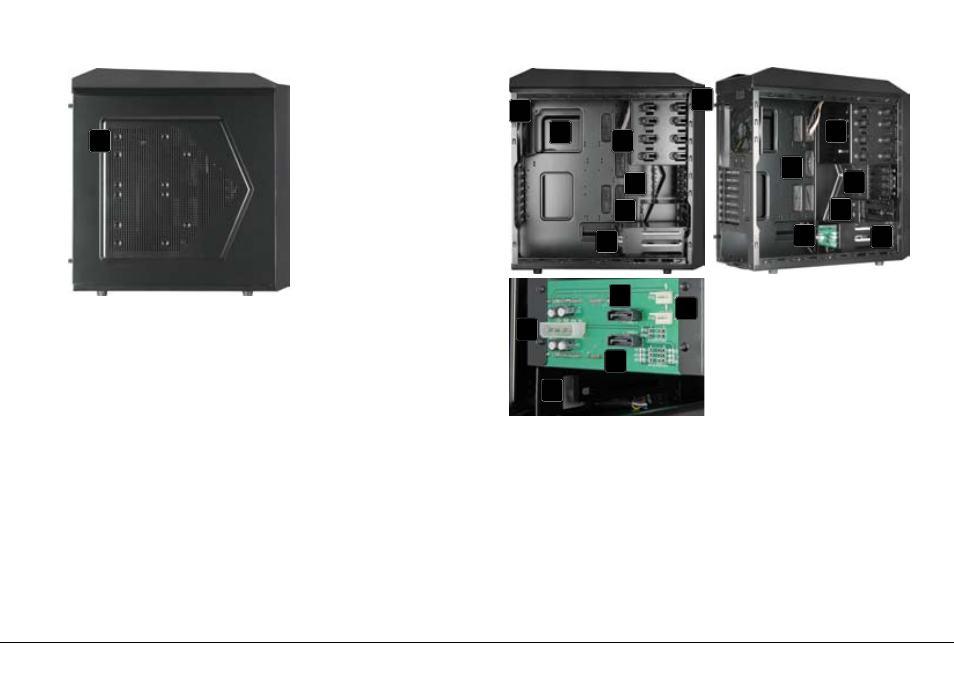

Side view (closed/left)
A – Fan brackets (1x 200 mm or 2x 120 mm fan)
Side view (opened/left)
A – Drive bays for 5.25" devices
B – Mainboard mounting panel
C – Installation opening for CPU coolers
D – Quick fasteners for optical drives
E – Mounting cage for 2.5“ HDDs/SSDs
F – Mounting cage for 3,5“ HDDs
G – Fast Swap drive bays
H – Cable openings
I – Circuit board to connect the front fans (no fan control!):
a – Circuit board’s 4-pin power connector
b – SATA data connector HDD 1 (top)
c – SATA data connector HDD 2 (bottom)
d – Fan power connectors
J – Mounting bay for a single 3.5" HDD
A
a
b
c
d
A
A
B
C
D
E E
F F
G
G
H
I
J
