scorpio 1000/2000

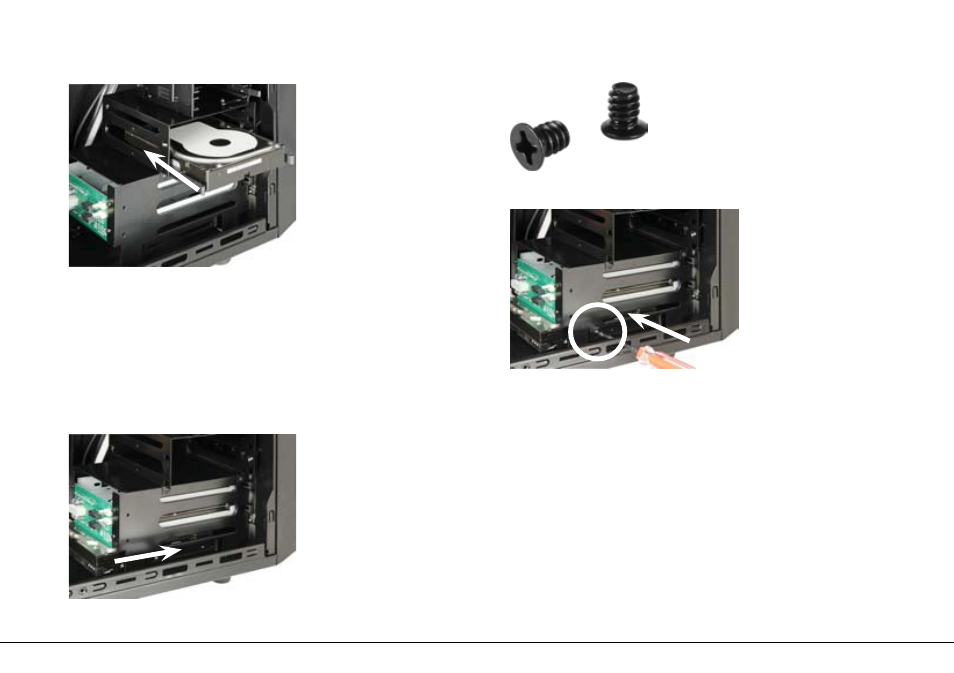

2. Slide the HDD with attached mounting rails into an available drive
bay inside the 3.5" HDD cage (fig. 10).
fig. 10
3. Connect the built-in HDD to the mainboard.
5.3 3.5" drive bay
1. Remove the case’s left and right side panel.
2. Insert a 3.5" HDD into the drive bay below the Fast Swap drive
bays inside the case (fig. 11).
fig. 11
3. Screw the HDD to the drive bay from both sides (fig. 12).
(Screws with coarse thread for HDD mounting)
fig. 12
4. Connect the installed HDD to the mainboard.
