rs30mdl1sm_haz duty-rev0614 Model RS30 Hazardous Duty Metallic Page 4

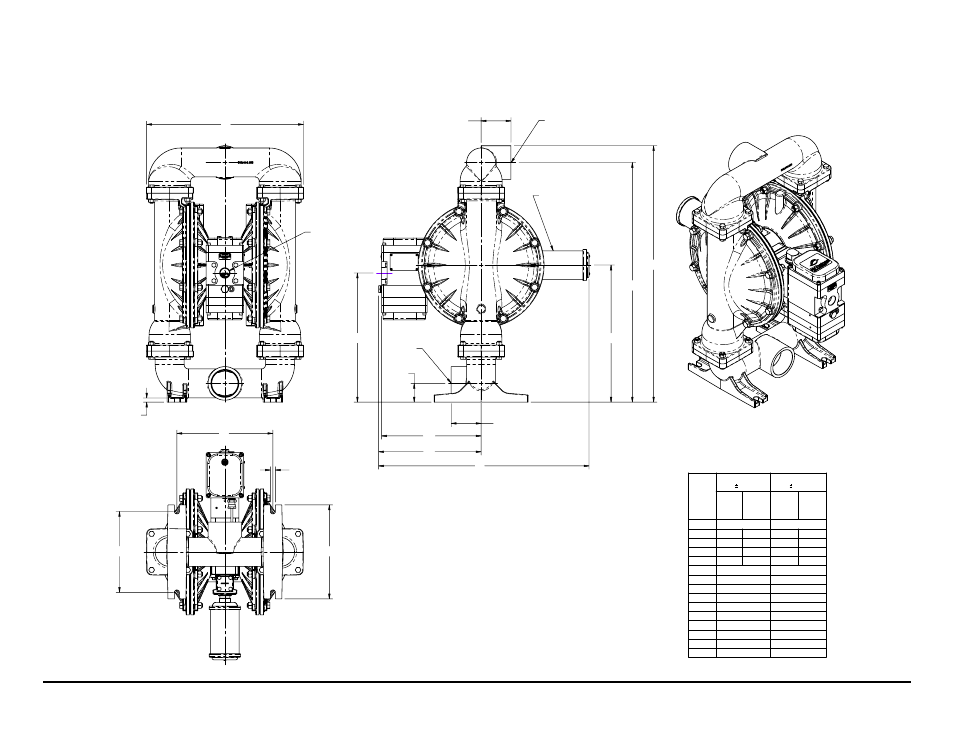

Dimensions: Hazardous Duty RS30 Metallic Standard NPT Port Connections
J
P
AIR INLET
1" NPT
K
L
M
Q
B
C
D
E
A
G
H
F
J
F DISCHARGE PORT
3" NPT
1" NPT HIGH FLOW
EXHAUST MUFFLER
SUCTION PORT
3" NPT
BOTH SUCTION AND DISCHARGE PORTS ARE
AVAILABLE WITH 3" BSP CONNECTIONS
English
.125
Metric
3mm
Aluminum
Cast Iron
Stainless
Alloy "C"
Aluminum
Cast Iron
Stainless
Alloy "C"
A 2.34 59
B 17.14 17.26 435 438
C 29.96 30.08 761 764
D 32.07 32.19 815 818
E 16.16 16.28 410 414
F 3.75 95
G 12.46 316
H 12.81 325
J 26.31 603
K 19.65 499
L 10.13 257
M 12.00 305
N 11.75 299
P .50 13
Q .62 16
