SANDPIPER RS30 Non-Metallic User Manual
Page 23

rs30nmdl2sm-rev0614
Model RS30 Non-Metallic Page 21

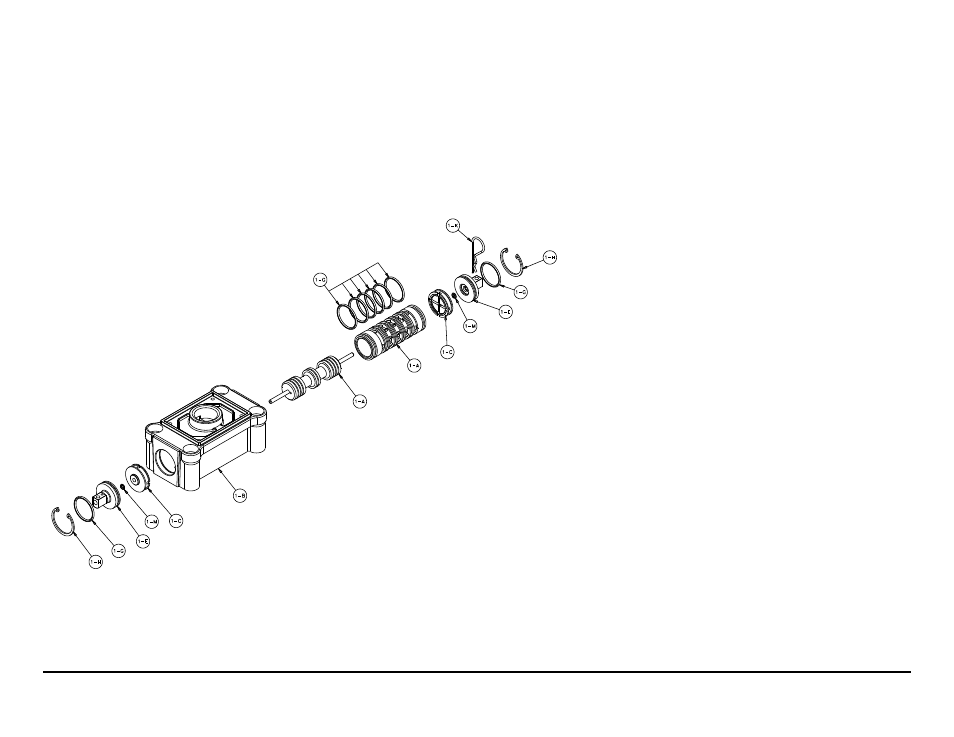

Air Valve Assembly Drawing with Stroke Indicator Option
RS30 Non-Metallic Design Level 1
PILOT VALVE ASSEMBLY PARTS LIST
ITEM PART NUMBER
DESCRIPTION
QTY
1
031.146.000
Air Valve Assembly
1
1-A
031.143.000
Sleeve and Spool Set w/Pins 1
1-B
095.094.551
Body, Air Valve
1
1-C
132.029.552
Bumper
2
1-E
165.098.147
Cap, End
2
1-G
560.020.360
O-Ring
8
1-H
675.044.115
Ring, Retaining
2
1-K
210.008.330
Clip, Safety
1
1-M
560.029.360
O-Ring
2
Note: Stroke Indicator is standard on Spill Containment models
