SANDPIPER M30 Non-Metallic - Manual (Page 7)

m30nmdl2sm-rev0713 Model S30 Non-Metallic Page 5

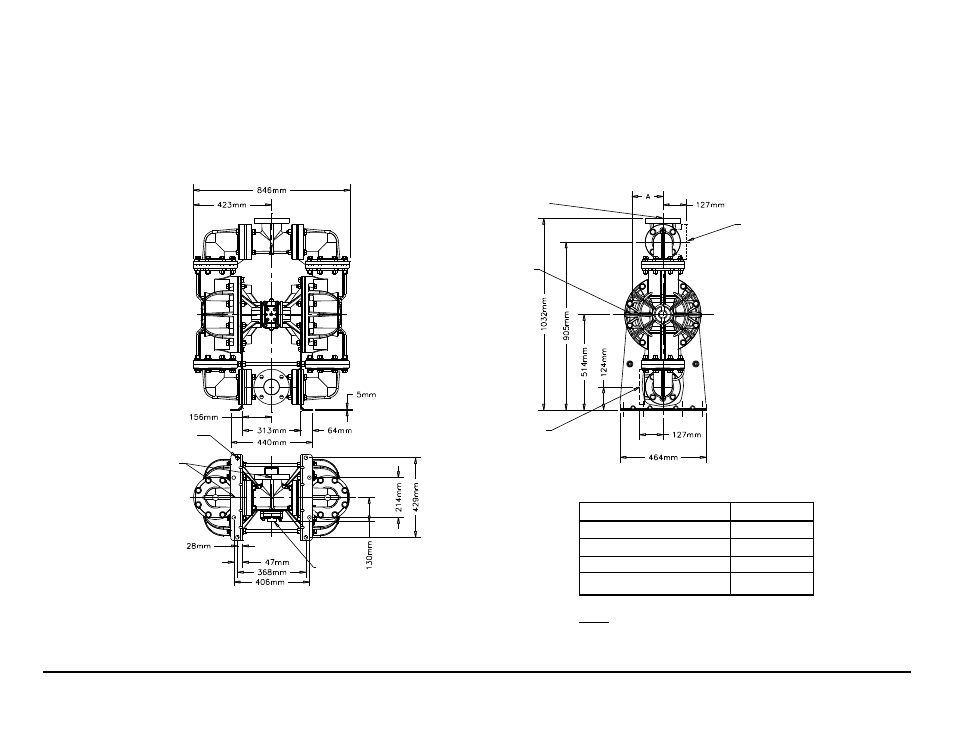

Metric Dimensions: M30 Non-Metallic
Dimensions in Millimeters
Dimensional tolerance: ± 3mm
DISCHARGE PORT
3” STANDARAD 125# FLANGE CONFIGURATION
3/4” DIA., (4) HOLES EQUALLY SPACED
ON A 6” DIA. BOLT CHANGE.
MANIFOLD CAN
ROTATE ±90º
FROM VERTICAL
CENTERLINE
BOLT PATTERN IS
SYMMETRICAL ABOUT
CENTERLINES
3/4” TYP.
8 PLACES
BOTTOM VIEW
SIDE VIEW
FRONT VIEW
SUCTION PORT
3” STANDARAD 125# FLANGE CONFIGURATION
3/4” DIA., (4) HOLES EQUALLY SPACED
ON A 6” DIA. BOLT CHANGE.
STANDARD INTEGRAL MUFFLER:
1” NPT EXHAUST PORT
FOR OPTIONAL MUFFLER
STYLES OR PIPING EXHAUST
AIR IN SUBMERGED APPLICATIONS
AIR INLET
3/4” NPT
Note: Porting Flanges are also available
with PN10 80mm DIN bolting configuration.
Note: Dimensions "A" is from
the vertical center line to the end
of the muffler.
Dimension
Standard Pump A
6 9/16"
6 9/16"
Pulse Output Kit
Sound Dampening Muffler
Mesh Muffler
13 3/4"
8 13/16"
