SANDPIPER M30 Non-Metallic - Manual (Page 25)

m30nmdl2sm-rev0713 Model S30 Non-Metallic Page 23
SOLENOID SHIFTED AIR VALVE PARTS LIST
(Includes all items used on Composite Repair Parts List except as shown)
ITEM PART NUMBER DESCRIPTION QTY
57 893-097-000 Solenoid Valve, NEMA4 1
58 219-001-000 Solenoid Coil, 24VDC 1
219-004-000 Solenoid Coil, 24VAC/12VDC 1
219-002-000 Solenoid Coil, 120VAC 1
219-003-000 Solenoid Coil, 240VAC 1
59 241-001-000 Connector, conduit 1
60 170-061-115 Capscrew, Hex HD 3/8-16 x 1.75 4
61 618-052-506 Plug 2
For Explosion Proof Solenoid Valve
58 219-009-001 Solenoid Coil, 120VAC 60 Hz 1
219-009-002 Solenoid Coil, 240VAC 60 HZ 1
219-009-003 Solenoid Coil, 12VDC 1
219-009-004 Solenoid Coil, 24VDC 1
219-009-005 Solenoid Coil, 110VAC 50 Hz 1
219-009-006 Solenoid Coil, 230VAC 50 Hz 1

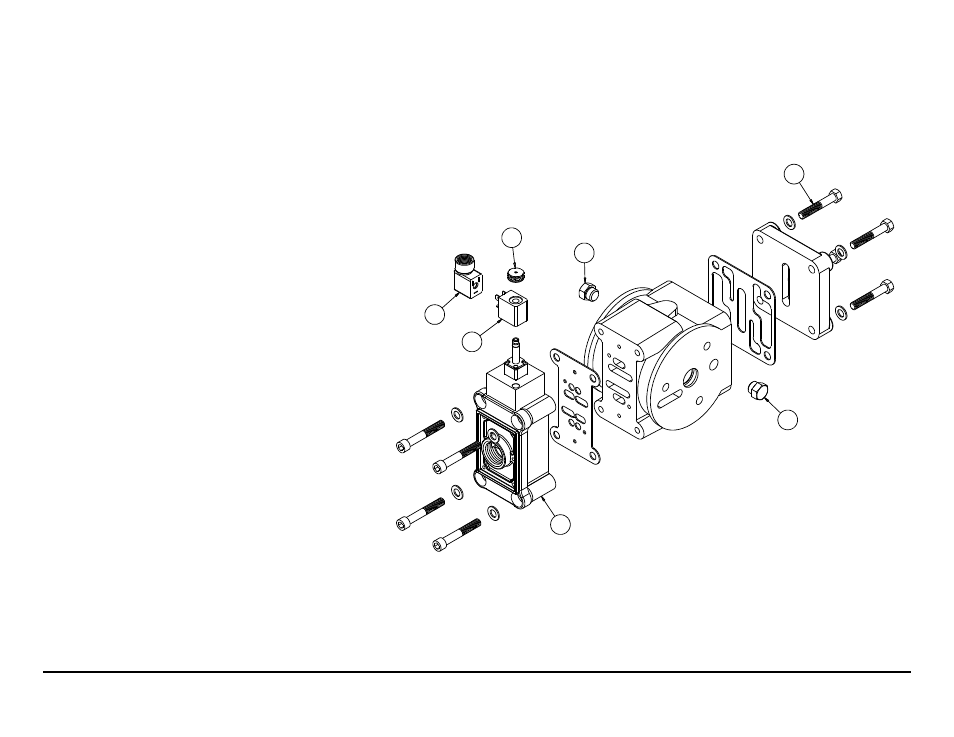

Solenoid Shifted Air Valve Drawing
59
57
61
61
60
58
57
