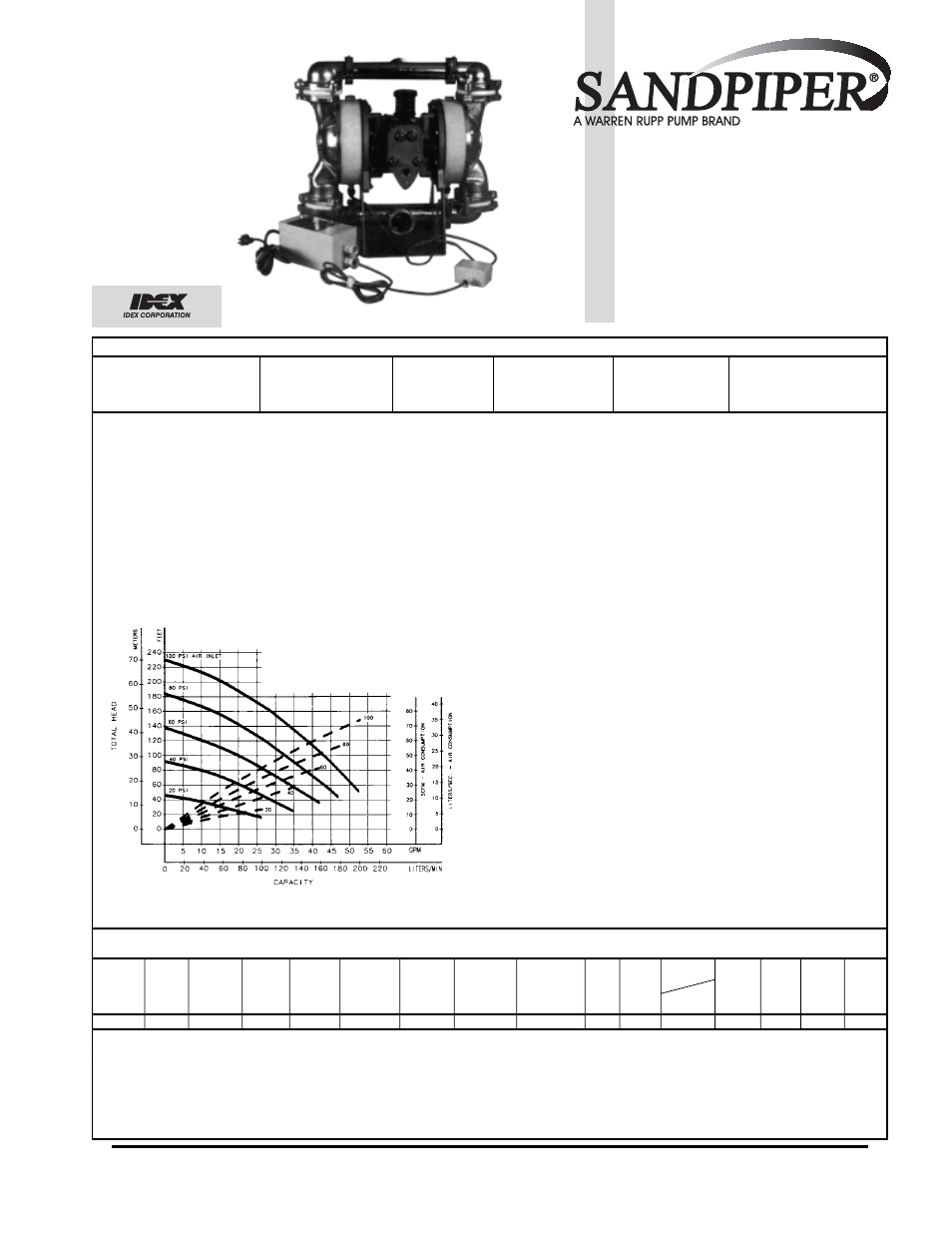

set1dl3sm-rev0614 Model SET1 Type 3 Page 1
SPSET1A-REV0106
BALL VALVE Type 3
Air-Powered
Double Diaphragm
Sanitary Containment Pumps
ENGINEERING, PERFORMANCE
& CONSTRUCTION DATA
PERFORMANCE CURVES
( SANDPIPER ® pumps are designed to be powered only by compressed air)
Temperature Limit: 212°F -
100°C MAXIMUM
MATERIALS OF CONSTRUCTION
Outer Inner
Driver Driver Ball Seat/ Shipping
SET1-A Driver Manifold/ Outer Inner Diaphragm Diaphragm Intermediate Diaphragm Valve Hard- Driver Valve Manifold Cap/ Weight
Chamber Elbow Chamber Chamber Plate Plate Housing Rod Seat ware Diaphragm Material Gasket Air Valve (lbs)
TGF-3-SS T 302/304SS 316SS * AL380DC 316SS * PS AL380DC 416SS T 304SS T/WN T T AL380DC 65
SET2-A
TGF-3-SS T 302/304SS 316SS * AL380DC 316SS * PS AL356T6 416SS T 304SS T/WN T T NONE 185
Quality System
ISO9001 Certified
Environmental
Management System
ISO14001 Certified
®Warren Rupp and SANDPIPER are registered tradenames of Warren Rupp, Inc.
SUCTION/DISCHARGE PIPE SIZE CAPACITY AIR VALVE SOLIDS-HANDLING HEADS UP TO
1½" Sanitary Clamp Fittings 0 to 52 gallons per minute
(0 to 196 liters per minute)
No-lube, no-stall
design
¼ in. (6 mm) 125 psi or 289 ft. of water
(8.8 Kg/cm 2 or 88 meters)
DISPLACEMENT/STROKE
.36 Gallon / 1.36 liter
MODEL SET1-A
SUCTION PIPE SIZE
2½" Sanitary Clamp Fittings
DISCHARGE PIPE SIZE
2" Sanitary Clamp Fittings
CAPACITY AIR VALVE SOLIDS-HANDLING HEADS UP TO
0 to 128 gallons per minute
(0 to 484 liters per minute)
No-lube, no-stall
design
¼ in. (6 mm) 125 psi or 289 ft. of water
(8.8 Kg/cm 2 or 88 meters)
DISPLACEMENT/STROKE
.36 Gallon / 1.36 liter
MODEL SET2-A
Pump shown with optional electronic leak detector.
Pumping
Diaphragm
SET1-A SET2-A
SANDPIPER ® Model SET1-A
Performance based on water at ambient
temperature.Average displacement per
pump stroke: .09 gallon (.34 liters)
Air consumption in SCFM
SANDPIPER ® Model SET1-A
Performance based on water at ambient
temperature.Average displacement per
pump stroke: .36 gallon (1.36 liters)
Air consumption in SCFM
Meanings of
Abbreviations:
* = Electropolished PS = Plated Steel
= Electroless Nickel Plated T = PTFE
AL = Aluminum SS = Stainless Steel
DC = Die Cast WN= White Nitrile - Food Grade
PP = Polypropylene - Glass Filled
NITRILE TEMPERATURE LIMITATIONS: 190 o F (88 o C) for Continuous Operation
280 o F (138 o C) for Intermittent Operation
.09 .34
