3
Chapter 1 Introduction

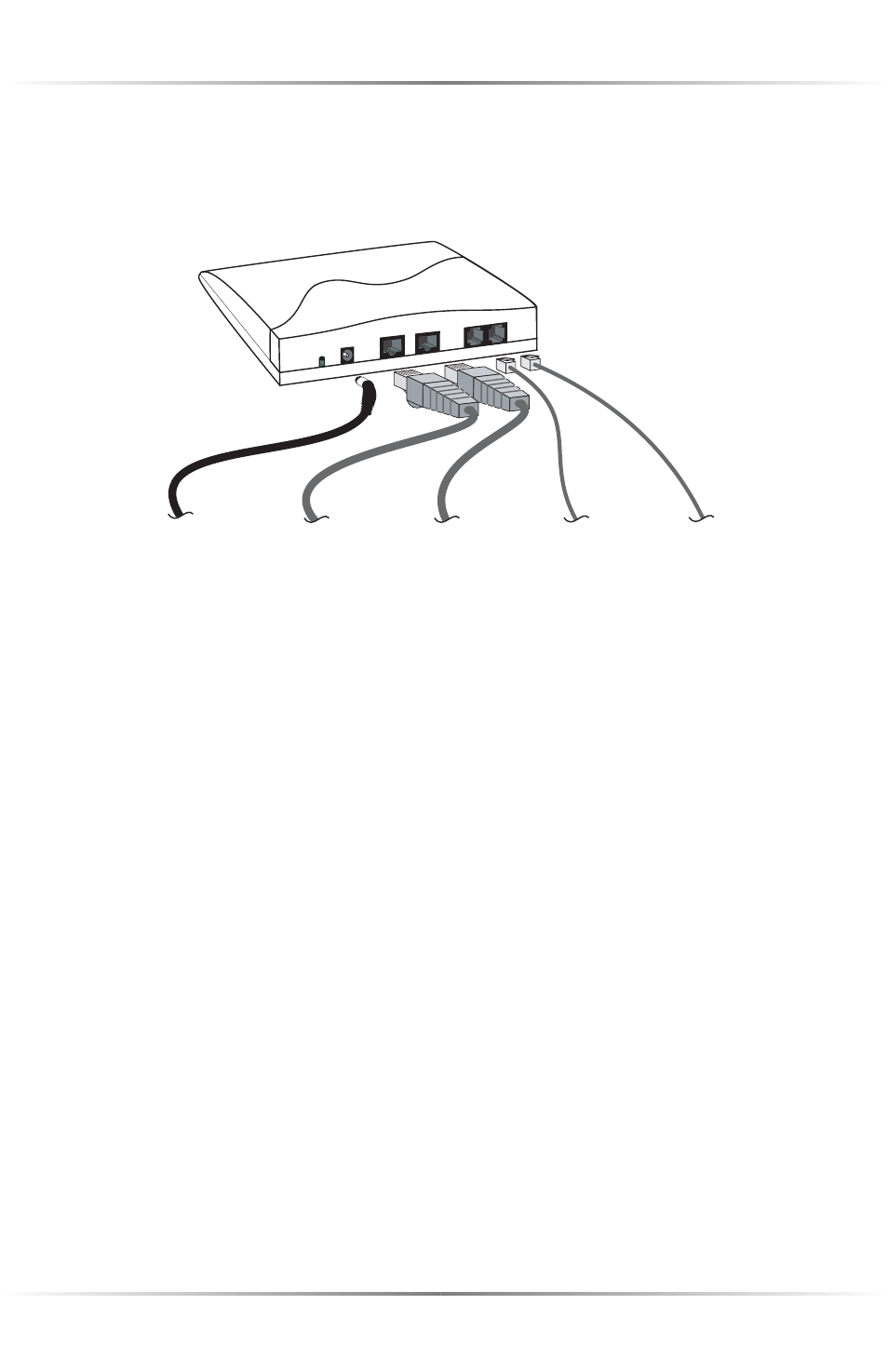

Rear Panel
There are 5 ports (Power, 2, 1, Line, and Phone) and a Reset Switch on the rear
panel.
Reset Switch
Depressing the reset switch for one or two seconds will reset the Modem. To
restore to factory default settings, depress and hold for at least 10 seconds.
Power Port
This port is used to connect the smaller end of the Power cord.
Port 2
This Ethernet port is used to connect an Ethernet cable between the Modem and
an additional computer.
Port 1
This Ethernet port is used to connect an Ethernet cable between the Modem
and the first computer connected.
POWER
LINE PHONE
Power Adapter
(from Power Port
to Power Outlet)
Phone Cord
(from Line Port
to Phone Jack)
Phone Cord
(from Phone Port
to Telephone)
RESET
2 ROUTE R TO COMPUTE
R 1
Ethernet Cable
(from Port 2 to
Second Computer)
Ethernet Cable
(from Port 1 to
First Computer)
