pb025nmdl3sm-rev0614 Page 7
1
3
1
2
3 DA05 Non-Metallic Surge Dampener
020-049-000 Filter/Regulator
Air Dryer
Available from
Warren Rupp
CAUTION
The air exhaust should be
piped to an area for safe
disposition of the product
being pumped, in the event
of a diaphragm failure.

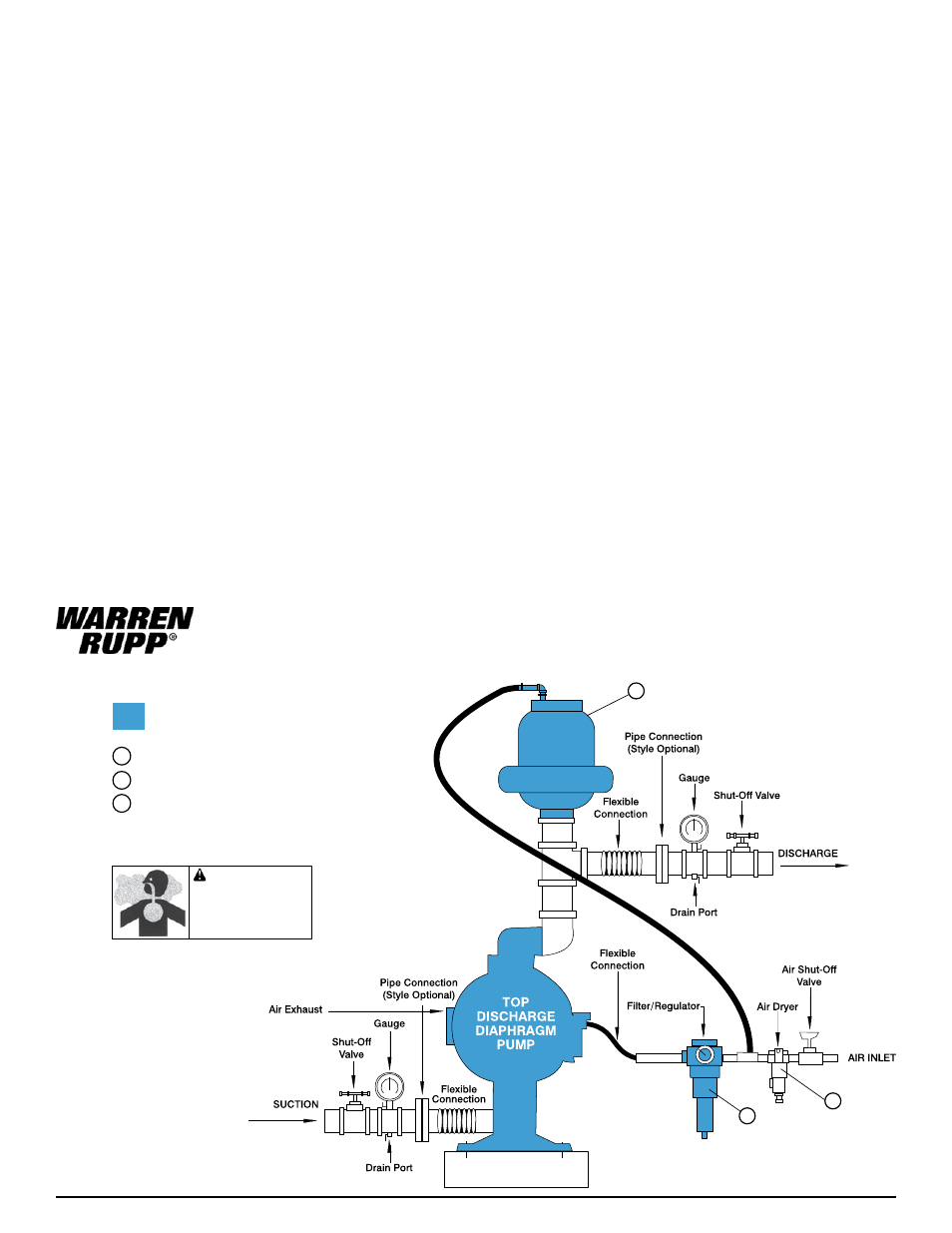

INSTALLATION GUIDE
Top Discharge Ball Valve Unit
2
Surge
Dampener
Limited to
100 psi
Material Codes
The Last 3 Digits of Part Number
000 Assembly, sub-assembly;
and some purchased items
010 Cast Iron
012 Powered Metal
015 Ductile Iron
020 Ferritic Malleable Iron
025 Music Wire
080 Carbon Steel, AISI B-1112
100 Alloy 20
110 Alloy Type 316 Stainless Steel
111 Alloy Type 316 Stainless Steel
(Electro Polished)
112 Alloy C
113 Alloy Type 316 Stainless Steel
(Hand Polished)
114 303 Stainless Steel
115 302/304 Stainless Steel
117 440-C Stainless Steel (Martensitic)
120 416 Stainless Steel
(Wrought Martensitic)
123 410 Stainless Steel (Wrought Martensitic)
148 Hardcoat Anodized Aluminium
149 2024-T4 Aluminium
150 6061-T6 Aluminium
151 6063-T6 Aluminium
152 2024-T4 Aluminium (2023-T351)
154 Almag 35 Aluminium
155 356-T6 Aluminium
156 356-T6 Aluminium
157 Die Cast Aluminium Alloy #380
158 Aluminium Alloy SR-319
159 Anodized Aluminium
162 Brass, Yellow, Screw Machine Stock
165 Cast Bronze, 85-5-5-5
166 Bronze, SAE 660
170 Bronze, Bearing Type,
Oil Impregnated
175 Die Cast Zinc
180 Copper Alloy
305 Carbon Steel, Gray Epoxy Coated
306 Carbon Steel, Black PTFE Coated
307 Aluminium, Gray Epoxy Coated
308 Stainless Steel, Black PTFE Coated
309 Aluminium, Black PTFE Coated
310 PVDF Coated
330 Zinc Plated Steel
331 Chrome Plated Steel
332 Aluminium, Electroless Nickel Plated
333 Carbon Steel, Electroless
Nickel Plated
335 Galvanized Steel
336 Zinc Plated Yellow Brass
337 Silver Plated Steel
340 Nickel Plated
342 Filled Nylon
353 Geolast; Color: Black
354 Injection Molded #203-40 Santoprene- Duro 40D +/-5;
Color: RED
355 Thermal Plastic
356 Hytrel
357 Injection Molded Polyurethane
358 (Urethane Rubber) (Compression Mold)
359 Urethane Rubber
360 Nitrile Rubber. Color coded: RED
361 Nitrile
363 FKM (Fluorocarbon). Color coded: YELLOW
364 EPDM Rubber. Color coded: BLUE
365 Neoprene Rubber.
Color coded: GREEN
366 Food Grade Nitrile
368 Food Grade EPDM
370 Butyl Rubber. Color coded: BROWN
371 Philthane (Tuftane)
374 Carboxylated Nitrile
375 Fluorinated Nitrile
378 High Density Polypropylene
379 Conductive Nitrile
405 Cellulose Fibre
408 Cork and Neoprene
425 Compressed Fibre
426 Blue Gard
440 Vegetable Fibre
465 Fibre
500 Delrin 500
501 Delrin 570
502 Conductive Acetal, ESD-800
503 Conductive Acetal, Glass-Filled
505 Acrylic Resin Plastic
506 Delrin 150
520 Injection Molded PVDF Natural color
540 Nylon
541 Nylon
542 Nylon
544 Nylon Injection Molded
550 Polyethylene
551 Glass Filled Polypropylene
552 Unfilled Polypropylene
553 Unfilled Polypropylene
555 Polyvinyl Chloride
556 Black Vinyl
557 Unfilled Conductive Polypropylene
559 Glass Filled - Conductive Polypropylene
570 Rulon II
580 Ryton
590 Valox
591 Nylatron G-S
592 Nylatron NSB
600 PTFE (virgin material)
Tetrafluorocarbon (TFE)
601 PTFE (Bronze and moly filled)
602 Filled PTFE
603 Blue Gylon
604 PTFE
607 Envelon
606 PTFE
610 PTFE Encapsulated Silicon
611 PTFE Encapsulated FKM
632 Neoprene/Hytrel
633 FKM/PTFE
634 EPDM/PTFE
635 Neoprene/PTFE
637 PTFE, FKM/PTFE
638 PTFE, Hytrel/PTFE
639 Nitrile/TFE
643 Santoprene ® /EPDM
644 Santoprene ® /PTFE
656 Santoprene Diaphragm and
Check Balls/EPDM Seats
Delrin and Hytrel are registered tradenames of
E.I. DuPont.
Gylon is a registered tradename of Garlock, Inc.
Nylatron is a registered tradename of
Polymer Corp.
Santoprene is a registered tradename of
Exxon Mobil Corp.
Rulon II is a registered tradename of
Dixion Industries Corp.
Ryton is a registered tradename of
Phillips Chemical Co.
Valox is a registered tradename of
General Electric Co.
Rupplon, SANDPIPER, PortaPump, Tranquilizer and
SludgeMaster are registered tradenames of
Warren Rupp, Inc.
