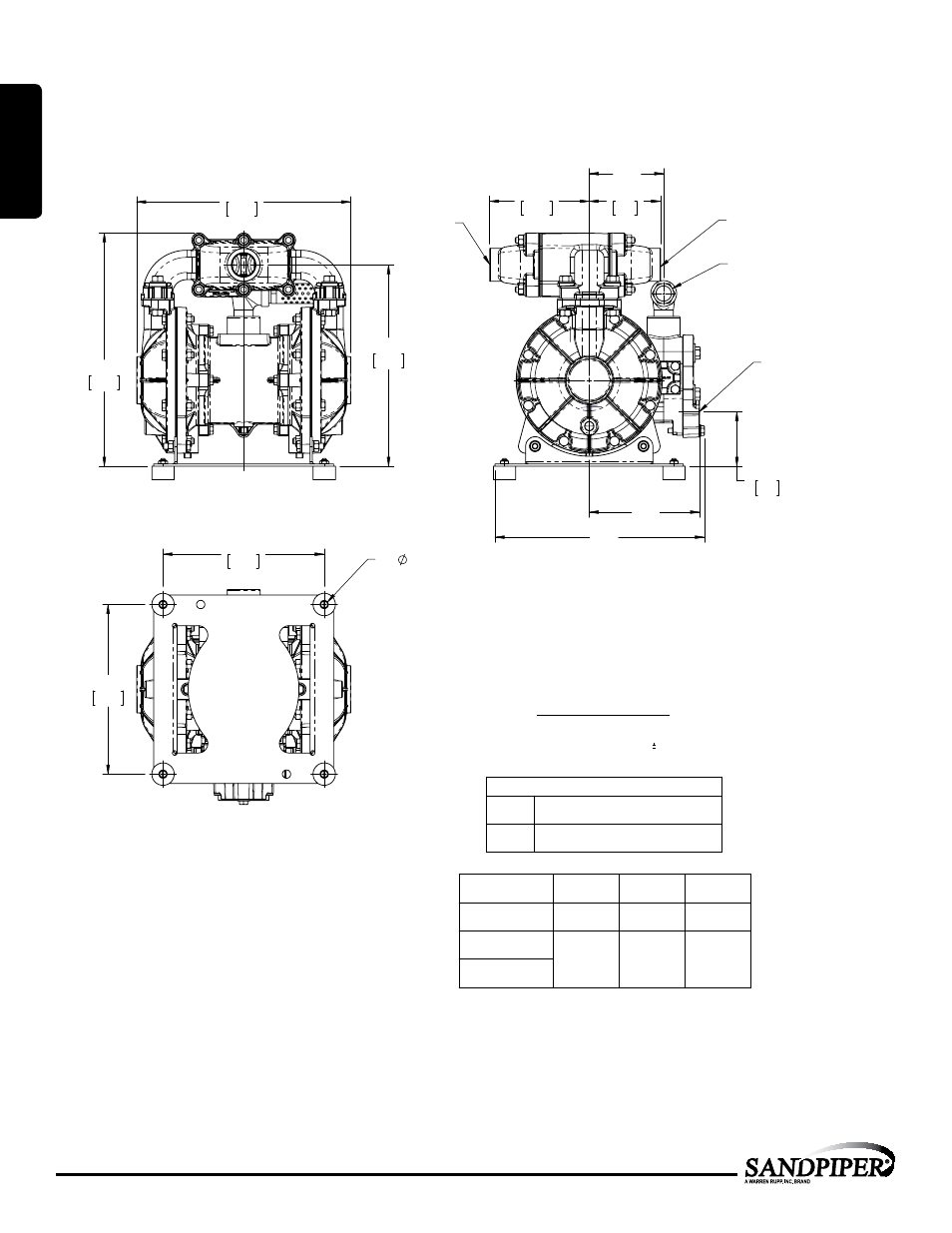

SA1 & SA25 Heavy Duty Flap Valve - Top Ported
Dimensions in inches (metric dimensions in brackets). Dimensional Tolerance .125" (3mm).
10.69
271
12.38
314
11.36
288
"C"
5.29
134
3.79
96
"A"
"B"
2.89
73
AIR EXHAUST
3/4" FNPT
SUCTION PORT
1" FNPT (SA1)
1" BSPT (SA25)
AIR INLET
1/2" FNPT
DISCHARGE PORT
1" FNPT (SA1)
1" BSPT (SA25)
9.00
229
8.56
217
4X .28 [7] MOUNTING HOLE
NOTE:
UNIT FURNISHED WITH SUB-BASE PLATE
AND RUBBER FEET AS STANDARD. FOR
STATIONARY BOLT DOWN USE, RUBBER
FEET CAN BE REMOVED.
SA1 / SA25
HEAVY DUTY FLAP VALVE PUMP
TOP PORTED
DIMENSIONAL TOLERANCE 1/8 [3]
[XX] = MILLIMETERS
SUCTION & DISCHARGE CONNECTIONS
SA1
1" NPT FEMALE THREADED
CONNECTIONS
SA25
1" BSP TAPERED FEMALE THREADED
CONNECTIONS
PUMP
CONFIGURATION
DIM "A"
DIM "B"
DIM "C"
ALUMINUM
CENTER SECTION
3.95 [100]
5.86 [149]
11.11 [282]
CAST IRON
CENTER SECTION
4.10 [104]
5.54 [141]
11.26 [286]
PULSE OUTPUT
CONFIGURATION
Dimensional Drawings
MODEL SPECIFIC
1: PUMP
SPECS
