SANDPIPER SB25 - Manual (Page 19)

sb1dl5sm-rev0714
sandpiperpump
.
com Model SB1 & SB25 •
16
Dual Port Suction / Single Discharge Repair Parts List
Item Part Number Description Qty.
15 170.122.330 Capscrew, Hex 5/16-18 UNC-2A X 5.00 3
23 334.013.110 Flange, Porting 1" NPT 1
334.013.110 E Flange, Porting 1" BSP Tapered 1
334.013.112 Flange, Porting 1" NPT 1
334.013.112 E Flange, Porting 1" BSP Tapered 1
334.013.157 Flange, Porting 1" NPT 1
334.013.157 E Flange, Porting 1" BSP Tapered 1
55 334.036.110 Flange, Dual Porting 1" NPT 1
334.036.110 E Flange, Dual Porting 1" BSP Tapered 1
334.036.112 Flange, Dual Porting 1" NPT 1
334.036.112 E Flange, Dual Porting 1" BSP Tapered 1
334.036.156 Flange, Dual Porting 1" NPT 1
334.036.156 E Flange, Dual Porting 1" BSP Tapered 1
56 170.125.330 Capscrew, Hex 5/16-18 UNC-2A X 6.00 3

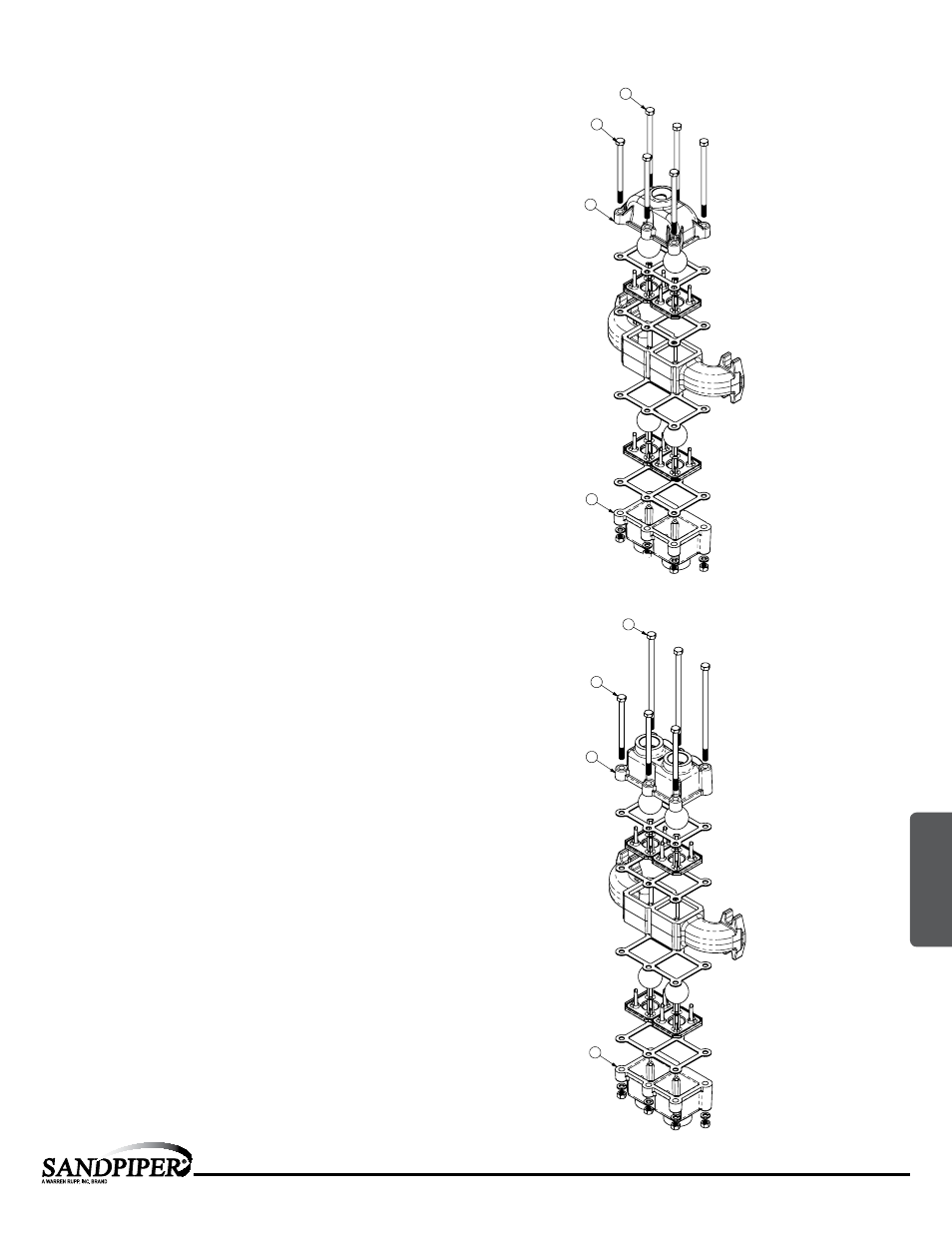

Dual Port Options
Illustration for Dual Port Suction
and Single or Dual Port Discharge
55
15
55
57
55
23
15
56
DUAL PORT SUCTION
SINGLE PORT DISCHARGE
DUAL PORT SUCTION
AND DISCHARGE
55
15
55
57
55
23
15
56
DUAL PORT SUCTION
SINGLE PORT DISCHARGE
DUAL PORT SUCTION
AND DISCHARGE
Dual Port Suction and Discharge Repair Parts List
Item Part Number Description Qty.
15 170.122.330 Capscrew, Hex 5/16-18 UNC-2A X 5.00 3
55 334.036.110 Flange, Dual Porting 1" NPT 2
334.036.110 E Flange, Dual Porting 1" BSP Tapered 2
334.036.112 Flange, Dual Porting 1" NPT 2
334.036.112 E Flange, Dual Porting 1" BSP Tapered 2
334.036.156 Flange, Dual Porting 1" NPT 2
334.036.156 E Flange, Dual Porting 1" BSP Tapered 2
57 170.127.330 Capscrew, Hex 5/16-18 UNC-2A X 7.00 3
UNIVERSAL ALL SP
6: OPTIONAL
