Dust Extraction
The machine is equipped with two dust extraction
ports, 4" and 2.5". (See Fig.14 B)
It is recommended that when in use, the machine is
connected to a suitable dust collector which should
be able produce an air speed of approximatley
350 CFM through the dust port areas.
Lower Blade Guard
When opening the lower band-wheel door on this
machine, the lower blade guard (C) swings down.
(See Fig.15)
When the lower door is closed, the guard MUST be
raised back to its operating position.
The band-wheel doors MUST be closed at all times
when the machine is being operated.
Tilting the Bandsaw Table
Ensure the table is clear of loose objects. Loosen
the wing nut (D) on the lower trunnion, then tilt the
table to the angle required using the scale (E).
(See Fig.16)
When the required setting is reached, re-tighten the
wing nut to lock the table into position.

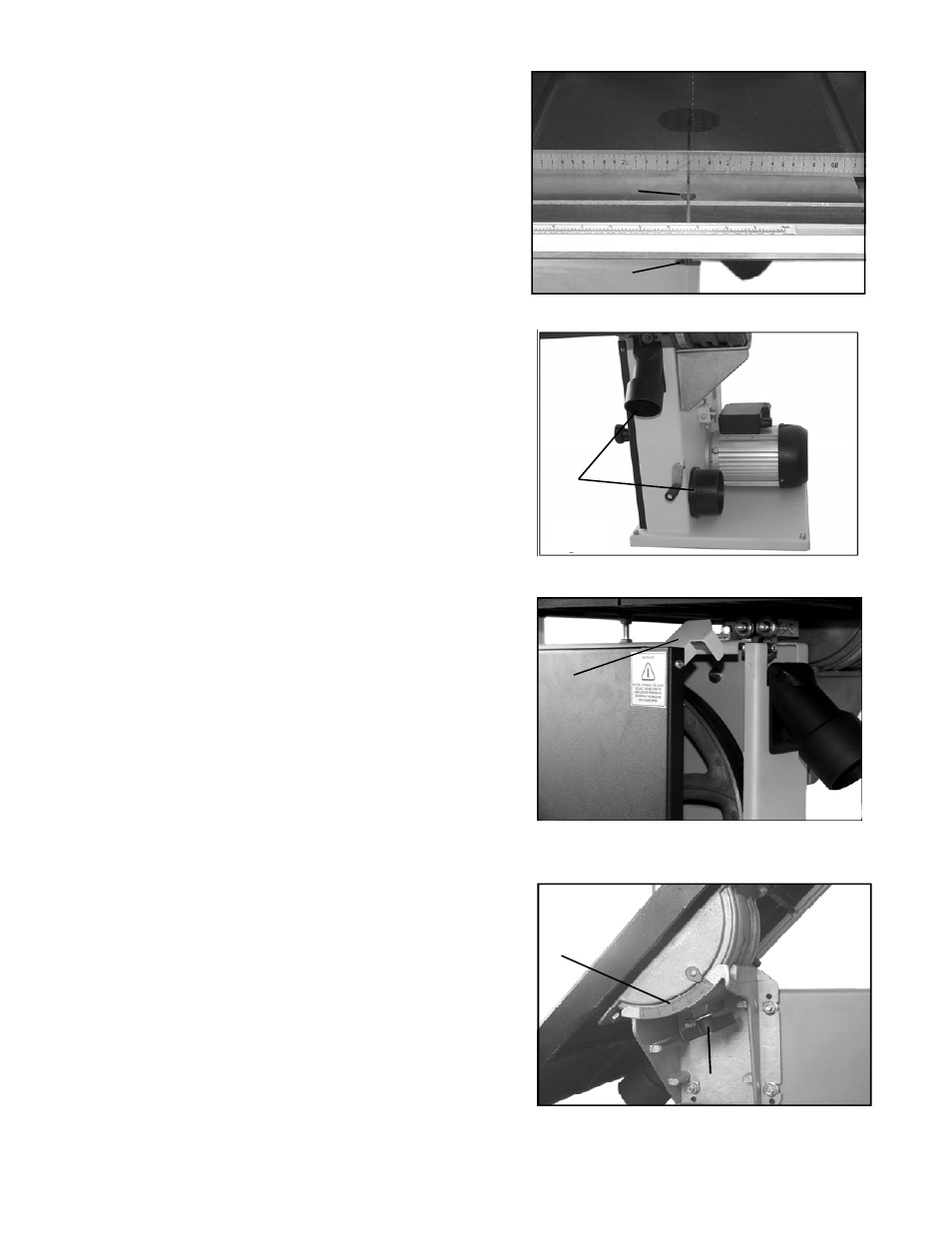

Fig. 13
