The machine is supplied with a 3-wire, grounded plug. Should this be changed by the customer, the
wires in the mains lead are colored in accordance with the following codes:
Green: Ground White: Neutral Black: Live
WARNING! This machine must be grounded.
REPLACING POWER SUPPLY CABLE
Replacement of the power supply cable should only be done by a qualified electrician.

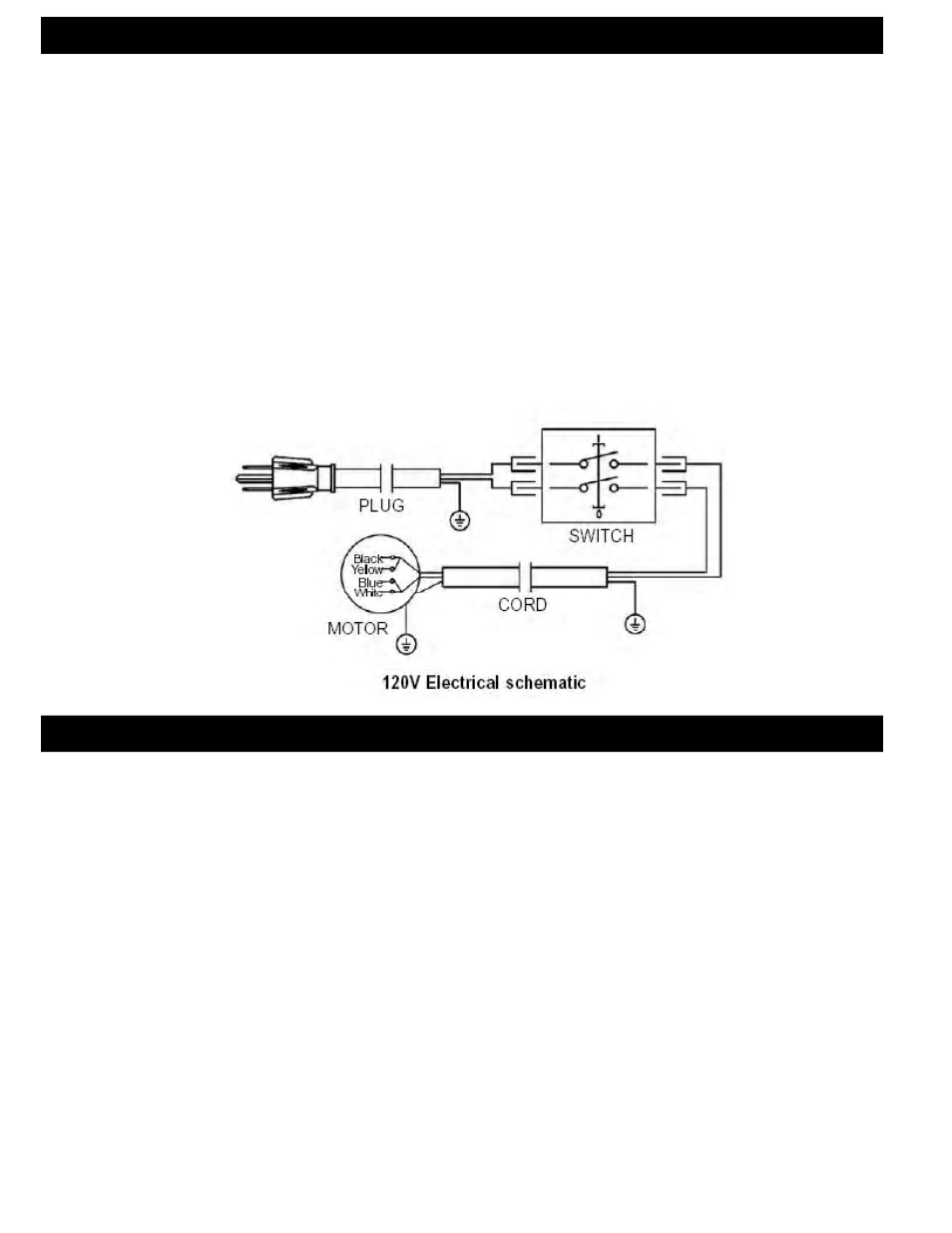

WIRING DIAGRAM
Before changing the drive belt, make sure that the bandsaw is unplugged
from the power source.
1. Release the saw blade tension by turning the blade tension
knob on the top of bandsaw counterclockwise.
2. Released the belt tension by using the crank handle.
3. Using C-clip pliers (not provided) remove the retaining ring from
the center of the lower wheel.
4. Carefully slide the lower wheel forward and at the same time
release the saw blade from this wheel.
5. Remove the old drive belt and install the new belt. Ensure ribs in
drive belt are seated correctly before reassembling and tensioning
the drive belt.
Changing The Motor Drive Belt
Wiring Diagram
