3. Run a strip of Tape (11) across the end of the Panel. (See Figure G.)
4. Slide the lower Panel (1) under the edges of the Panel above. Before installing
the Self Tapping Screws with Rubber Washers (9), make sure the lower Panel
is square with the Panel above. Then install the Self Tapping Screws with
Rubber Washers. (See Figure G.)
5.
Install all Panels (1) down the peak of the Car Shelter before moving on to the
lower section of panels. (See Figure H.)

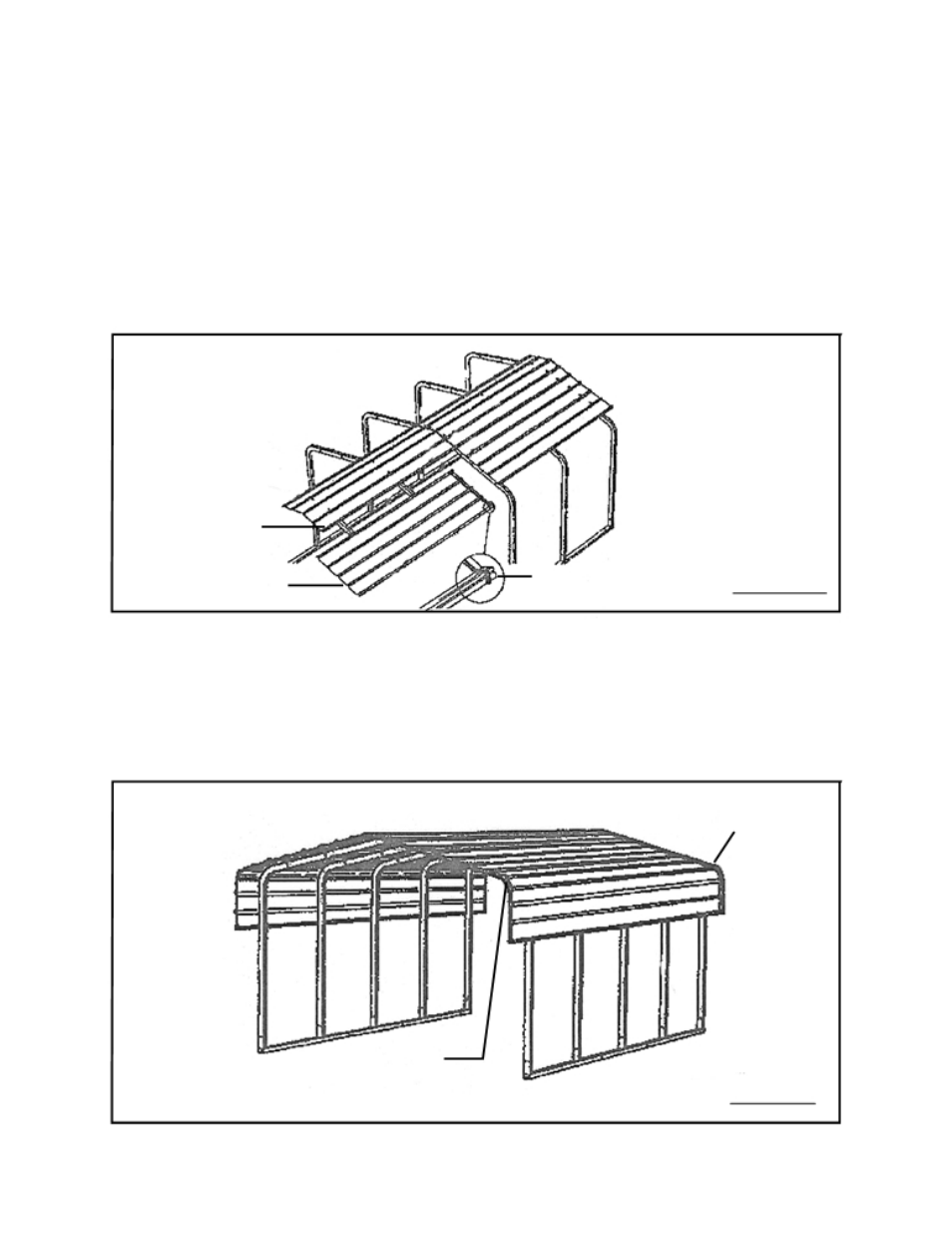

LIFT EDGE OF PREVIOUS
PANEL AND INSERT LOWER
PANEL UNDERNEATH
TAPE
PANEL
(1)
(11) FIGURE H
6. Continue installing Panels (1) down the peak of the Car Shelter and onward down
the sides of the frame. (See Figure I.)
7.
When finished installing the Panels (1), run a length of Edge Trim (10) along both
gable ends of the Car Shelter. (See Figure I.)
EDGE TRIM (10)
(GABLE END)
EDGE TRIM (10)
(GABLE END)
FIGURE I
