Digital Video Recorder User Manual
6
Item
Type
Name Description
4 Input button
Direction button Change direction to select items
Multi-screen Change screen display mode like1/4/9/16 channel
Enter button Confirm selection
5 IR receiver IR For remote controller
6 USB USB port
To connect external USB devices like USB flash,
USB HDD for backup or update firmware; or connect
to USB mouse
7 POWER POWER Shot switch off
2.3 Rear Panel Instructions
2.3.1 Rear Panel Interface

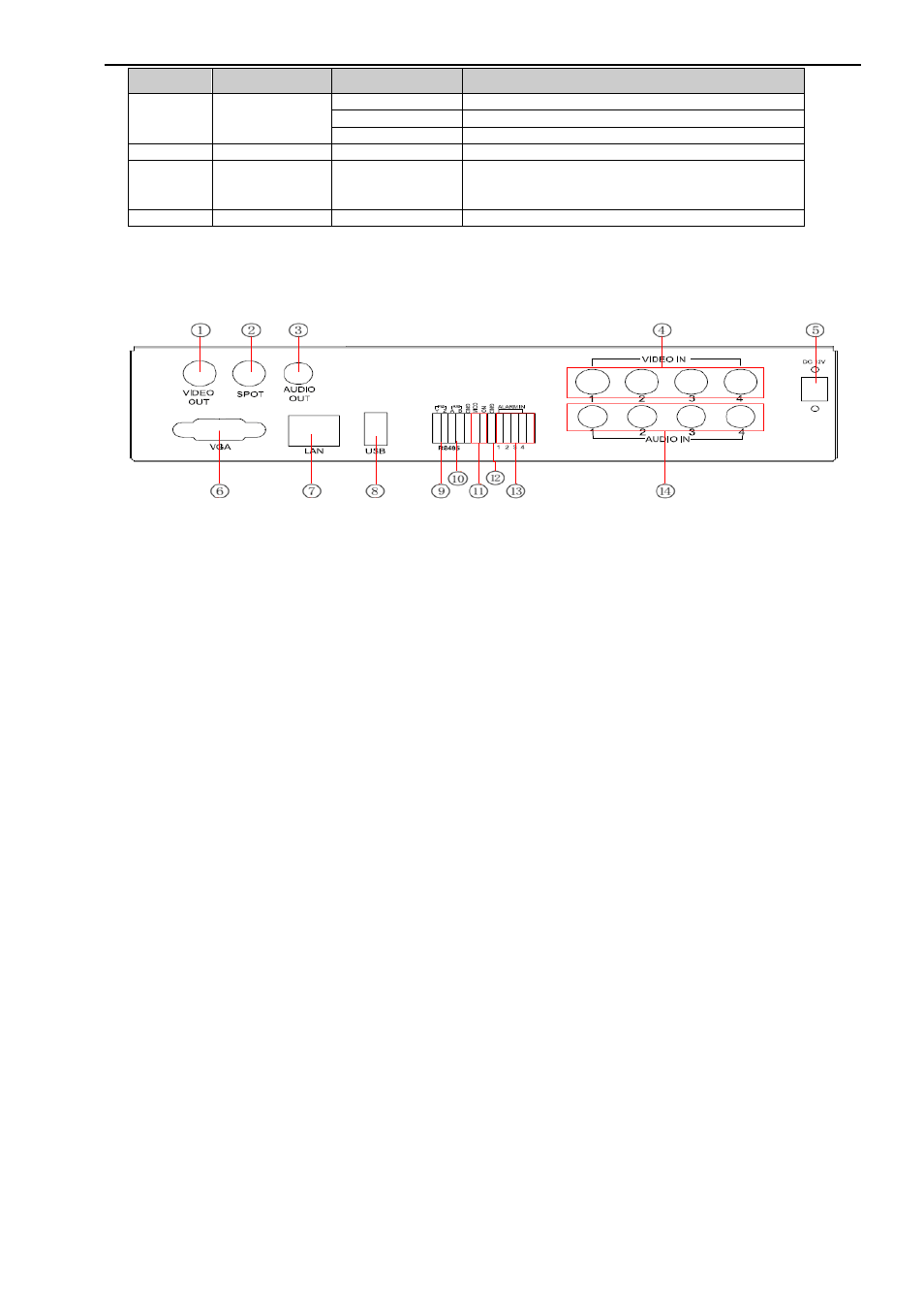

The rear Panel interface for 4-ch is shown as Fig 2.3:
Fig 2.3 Rear Panel for 4-ch
