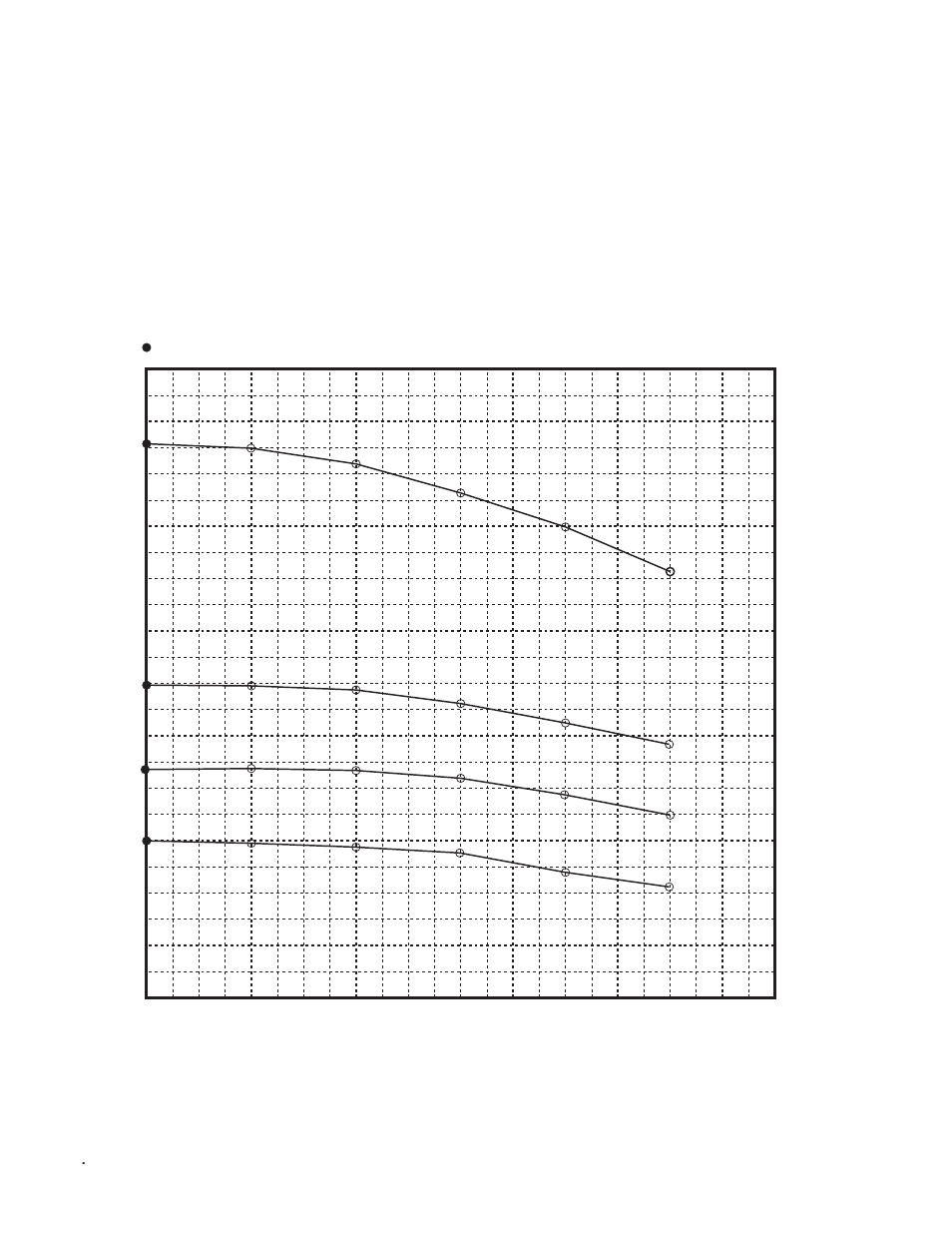

CLASSIC I and PIPELINER 200D and 200G with WIRE FEED MODULE Reference Output Curves For Selected Open Circuit Volts (OCV) at Wire Feeder 0 0 25 50 75 100 125 150 175 200 225 250 275 300 5 10 15 20 25 30 35 40 45 50 55 60 LOAD AMPS (DC) L O A D VO L T S (D C ) = WIRE FEEDER OCV
CLASSIC I and PIPELINER 200D and 200G with WIRE FEED MODULE
Reference Output Curves
For Selected Open Circuit Volts (OCV) at Wire Feeder
0
0 25 50 75 100 125 150 175 200 225 250 275 300
5
10
15
20
25
30
35
40
45
50
55
60
LOAD AMPS (DC)
LOAD VOLTS (DC)
= WIRE FEEDER OCV
