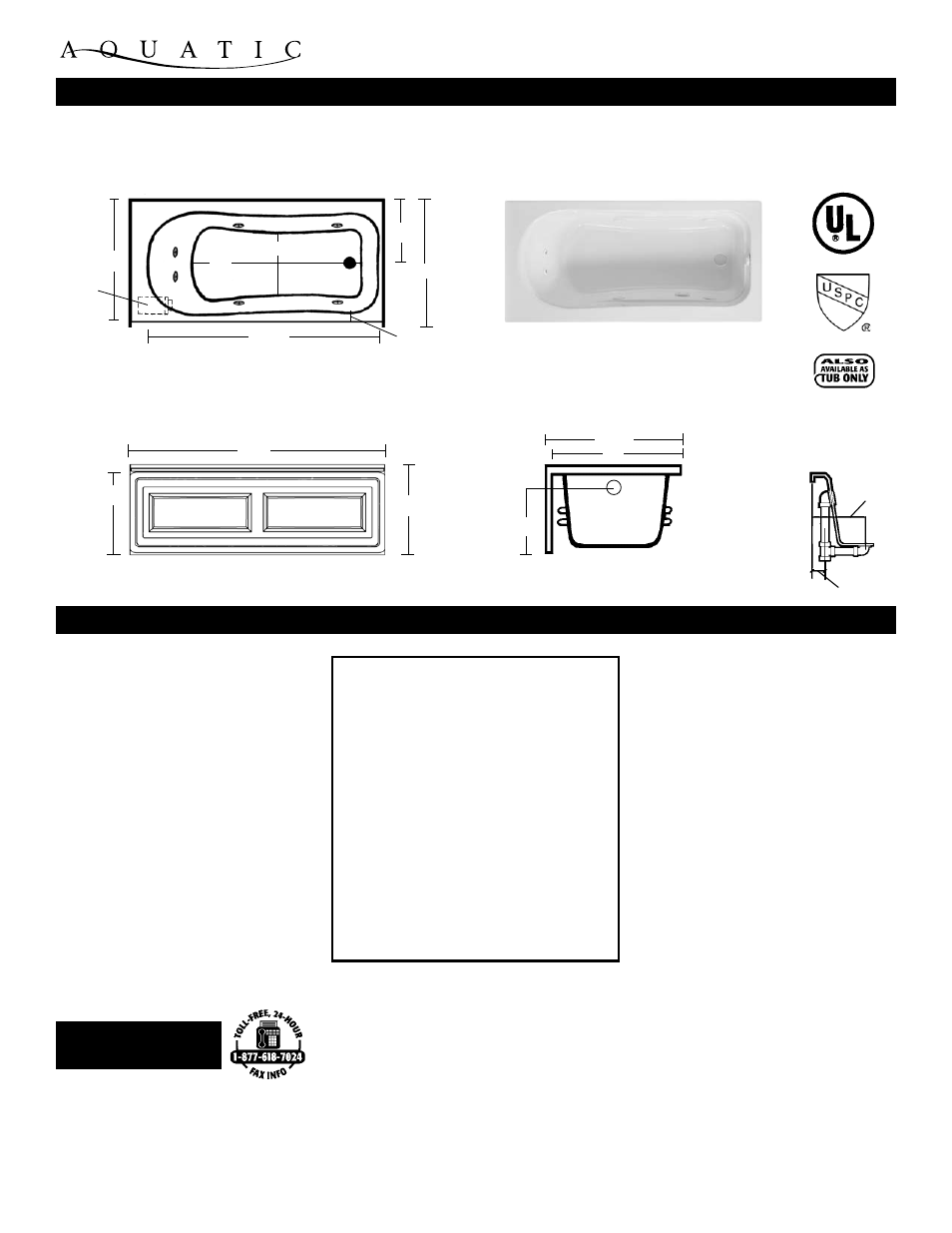

SPECIFICATIONS:

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation
and structure building should be measured from the tub; Aquatic Industries, Inc. assumes no responsibility for preparatory work.

www.aquaticwhirlpools.com 800.555.5324

October 2007

Rough-In Plumbing
Measurements

SymPhONy 10

SymPhONy SErIES

Model # -- See below

GeneRal SPecIfIcatIonS:

Tub Size

60” x 32” x 20 1/4”

152 cm x 81 cm x 51 cm

Bathing Well

41” long

18” wide

16 3/4” interior depth

Maximum Water Depth 13 1/2”
Shipping Weight

161 lbs. / 73 kg

Tub Weight Filled

561 lbs. / 254 kg

Tub Only Weight

120 lbs. / 120 kg

Gallons to Overflow

53 gal. / 201 L

Gallons to Operate

42 gal. / 159 L

electRIcal SPecIfIcatIonS:

Pump

.80 HP; 5.5 AMP; 110V

Requirement

15 AMP; 110V, separate circuit

required protected w/ Class A GFCI

6 Hydrotherapy Jets including:
- 2 Spinning Back Jets
- 4 Directional Jets

aquatic Quality features:
- .80 HP Run-Dry Pump
- Bath-Side On/Off Air Button
- Comfort Designed Back Rest
-

”Quiet Pad”

Anti-Vibration Pump Mount for Quiet Pump Operation

- Heat-bent Rigid PVC Piping for Optimum Sanitary Conditions
- 2 Arm Rests
- Integrally Molded Tile Flange
- Color Matched Integral Skirt with Removable Access Panels
- Color Matched Trim and Jets (Select Colors)
- Right or Left Hand Drain
- Durable, easy to Clean, Lucite

®

Cast Acrylic Surface

- Available in 8 Standard No-Charge Colors

Ul and IaPMo listed, factory tested

limited 10 Year Warranty

StandaRd eQUIPMent:

Comfort Pillow--Oval or Rectangle

Lift & Turn Waste and Overflow

- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel, or Oil Rubbed Bronze

Cable Drive Waste and Overflow

- Chrome, Polished Brass, Gold, Satin Nickel,
Polished Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit Only)

Removable Acces Panels (Tub Only)

All acrylic colors featured by Aquatic match the

industry’s leading fixture manufacturers.

oPtIonal eQUIPMent:

fax-on-demand

document # 1278

60”

16”

33 1/4”

32”

Deck Width

2 3/4”

aiiS6032lSY / aiiS6032lSYTo (lefT drain) / aiiS6032rSY / aiiS6032rSYTo (righT drain)

51 3/4”

19”

33 1/4”

20 1/4”

32”

17 1/4”

note: tub only model does not include

access panels unless ordered as an option.

Standard Pump

Location

41”

18”

2 1/4”

8 1/2”

Right drain Model
