The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation and structure building should be measured from the tub;
Aquatic Industries, Inc. assumes no responsibility for preparatory work.

www.aquaticwhirlpools.com 800.555.5324

Rough-In Plumbing

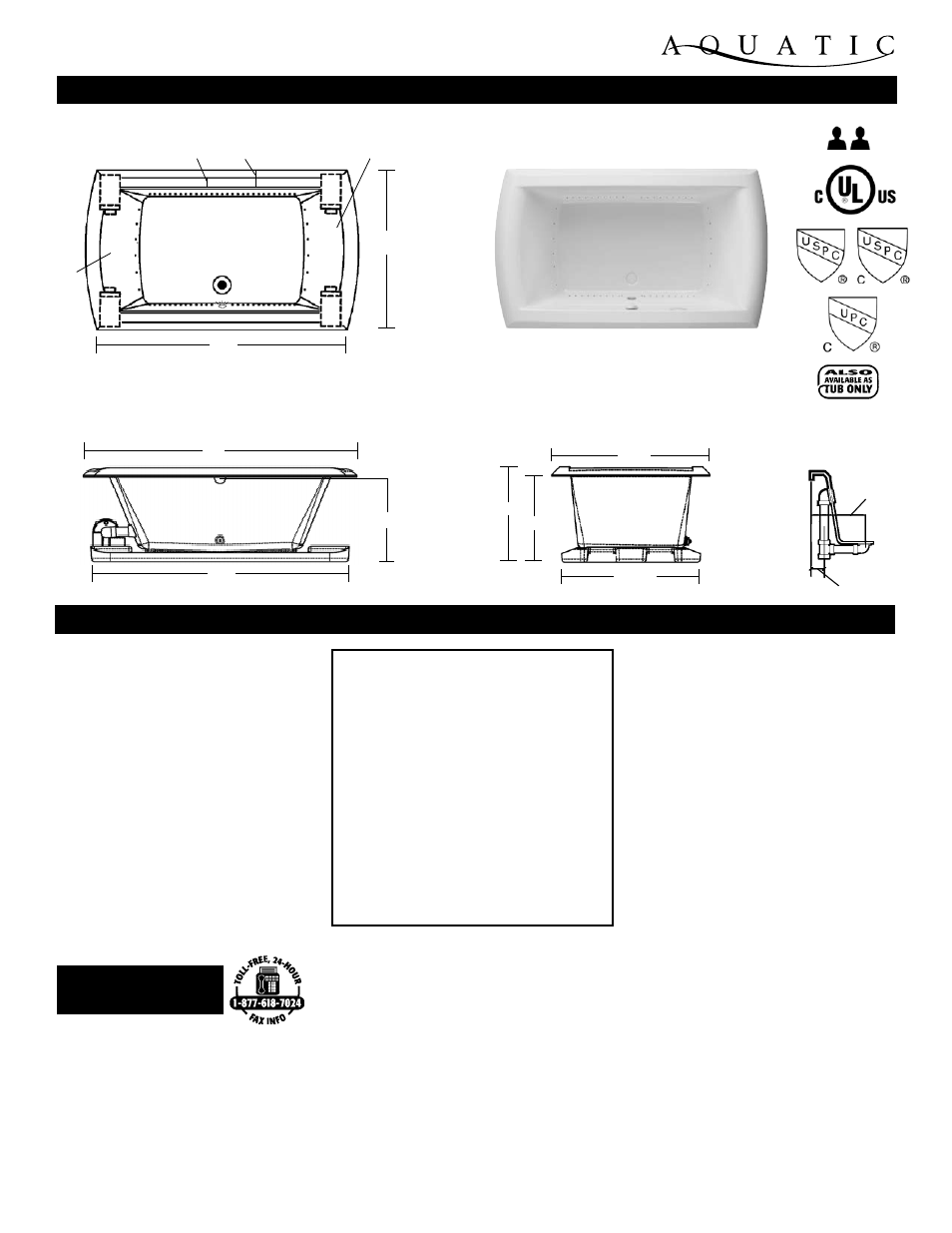

Measurements

serenity series

Model # AI28AIR7242 / AI28AIR7242To (Tub only)

serenity 28 Motif

42”

3 1/2”

12 1/4”

Deck

Width 3”

Total Width

5 1/2”

sPeCifiCAtions:

GeneRal SPecIfIcatIonS:

Tub Size

72” x 42” x 23 1/2”

183 cm x 107 cm x 60 cm

Bathing Well

42” long

26” wide

21 1/4” interior depth

Maximum Water Depth 17 1/2”

Shipping Weight

247 lbs. / 112 kg

Tub Weight Filled

1049 lbs. / 476 kg

Tub Only Weight

138 lbs. / 63 kg

Weight w/Equipment 169 lbs. / 77 kg
Gallons to Overflow 106 gal. / 401 L

electRIcal SPecIfIcatIonS:

Blower/Heater

1 HP; 10.5 AMP; 120V

Requirement

15 AMP; 120V, separate circuit

required protected w/ Class A GFCI

This unit is not recommended for shower installations.

Comfort Pillow - Oval or Rectangle

Bolt-On Grab Bar

- White, Biscuit, Chrome, Polished Brass, Gold,

Polished Nickel, Satin Nickel or Oil Rubbed Bronze

Lift & Turn Waste and Overflow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze

Cable Drive Waste and Overflow

- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit only)

Waterproof Remote Control with infrared sensor

and 25’ cord

Remote Blower Wiring Kit

Premium Colors

All acrylic colors featured by Aquatic match the

industry’s leading fixture manufacturers.

oPtIonal equIPMent:

air Bath System:
- 52 Air Jets
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- 600 Watt Air Heating System
- Electronic Control Package with wave and Pulse Features
- Automatic Purge and Dry Cycle with Water Sensors

aquatic quality features:
- Chromatherapy
- Slip Resistant Floor
- Air Channels Lined with Antimicrobial Coating
- Extra Deep and Long Bathing Well
- Pre-leveled ABS Support Base
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- available in 8 Standard No-Charge Colors

ul & IaPMo listed, factory tested

limited lifetime Warranty

StandaRd equIPMent:

Each Serenity Air Bath model is equipped with a 600 watt air heating system to raise the temperature of the air going into the bath. This air temperature
will be less than the bathing temperature of the water, but will help to reduce a rapid decrease in water temperature. In addition, the air coming from the
air jets will feel cool against the skin, just as a breeze on a warm day cools your body. This system does not heat the water.

fax-on-demand

document # 1072

Back

Angle 22˚

Back

Angle 22˚

20 1/4”

72”

42”

21”

23 1/2”

68”

Two Person Bath

November 2007
