C-4 MAINTENANCE C-4

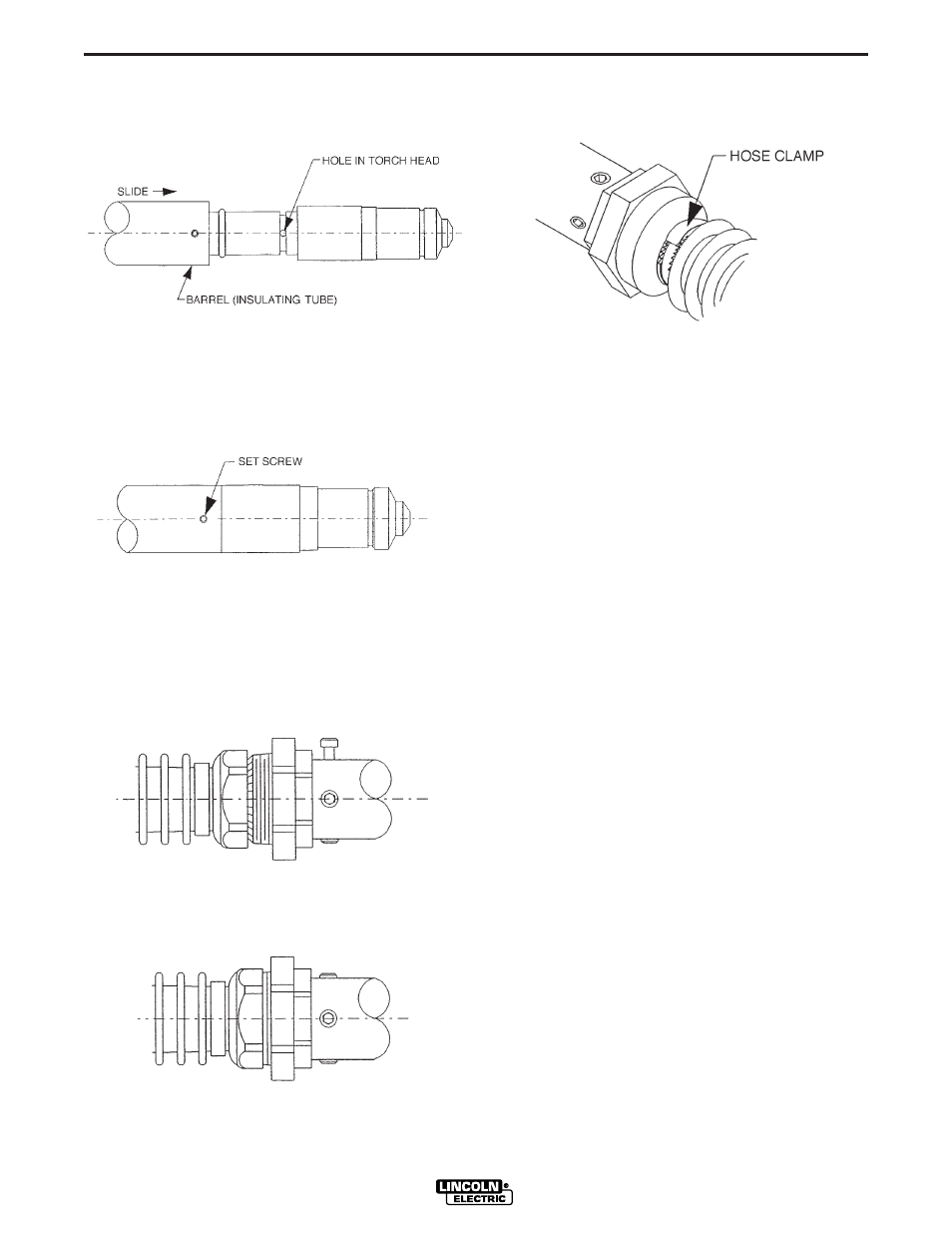

15. Slide the insulating tube over the cable and torch
head connections to the back of the torch head
and align the holes in the insulating tube with the
holes in the torch head.
16. Slide the barrel over the insulating tube, aligning
the holes in the barrel with the holes in the insulat-
ing tube. Secure the barrel and tube in place with
the set screws and tighten with a 5/64" Allen
wrench.
17. Slide the strain relief with the cable boot into the
barrel. Do not allow the boot to slip out from under-
neath the fingers of the strain relief. Align the holes
in the strain relief with the holes in the barrel.
Secure the barrel to the strain relief with the sock-
et head cap screws and tighten with a 9/64" Allen
wrench.
18. Tighten the strain relief cap hand tight and then
tighten an additional half-turn with channel locks.
19. Place the hose clamp around the boot. Assemble
the hose clamp such that it is snug around the
boot.
20. Restore power to the machine.
PLASMA TORCH
