Diagrams – Lincoln Electric IM926 EAGLE 10,000 User Manual
Page 30
F-1
DIAGRAMS
F-1
EAGLE™ 10,000

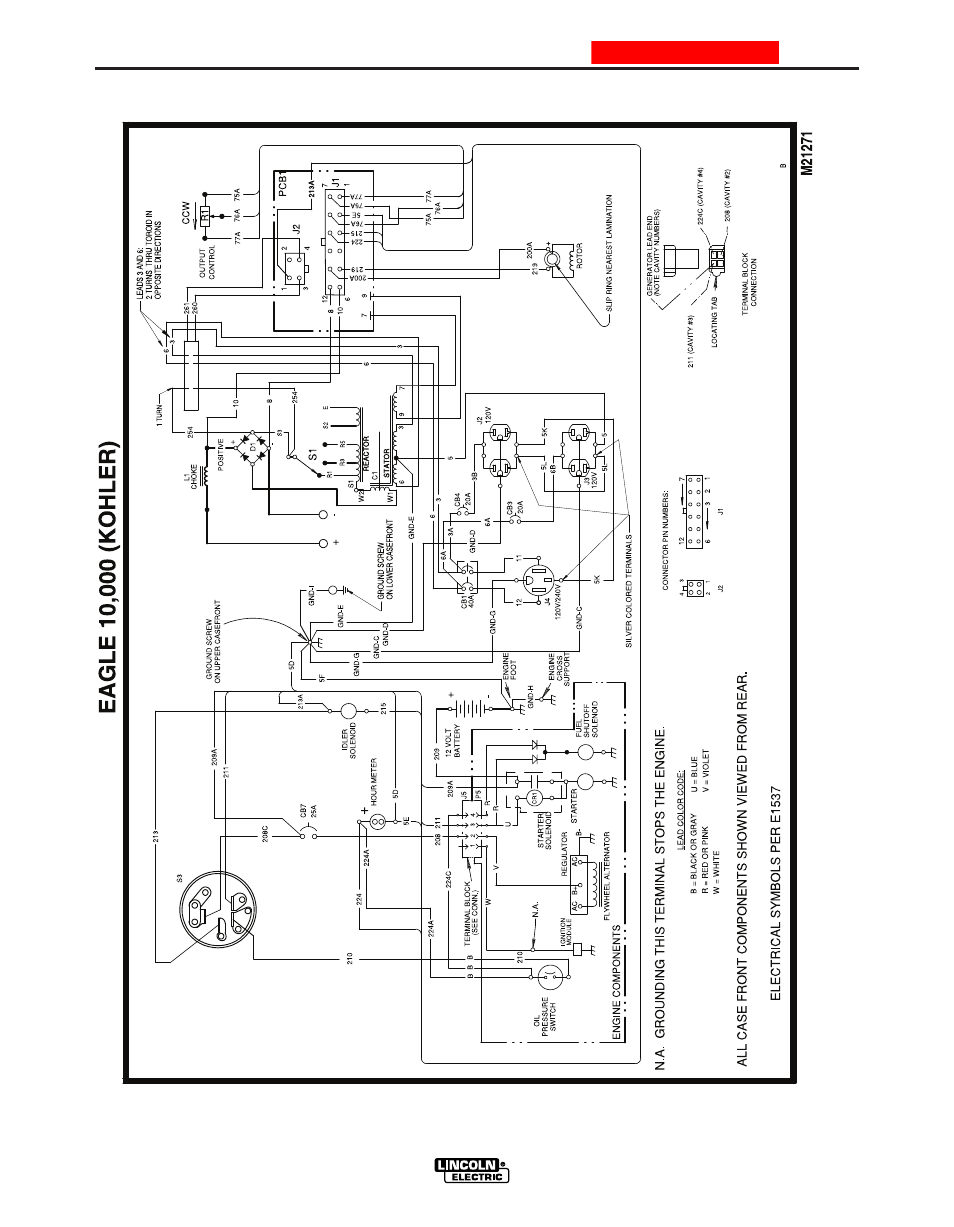

NOTE: This diagram is for reference only. It may not be accurate for all machines covered by this manual. The specific diag
ram for a particular code is pasted inside
the machine on one of the enclosure panels. If the diagram is illegible, write to the Service Department for a replacement. G
ive the equipment code number.
ENHANCED DIAGRAM
