8 ©2010 Johnson Level & Tool - Rev. 2
Note:
• Pay attention to the polarity of the batteries.
• Used (discharged) batteries are hazardous waste and should be
disposed of properly.
7. Using the Product
This base was specially designed for more extensive adaptability of
the instrument. Both the instrument and the base can be connected
with a standard tripod by 5/8"-11 thread and camera tripod by
1/4" – 20 thread. With the use of its base, the instrument can be
freely rotated, hung on the wall, attached to a metal plate, or bound on
staff or pipe with use of its strap.

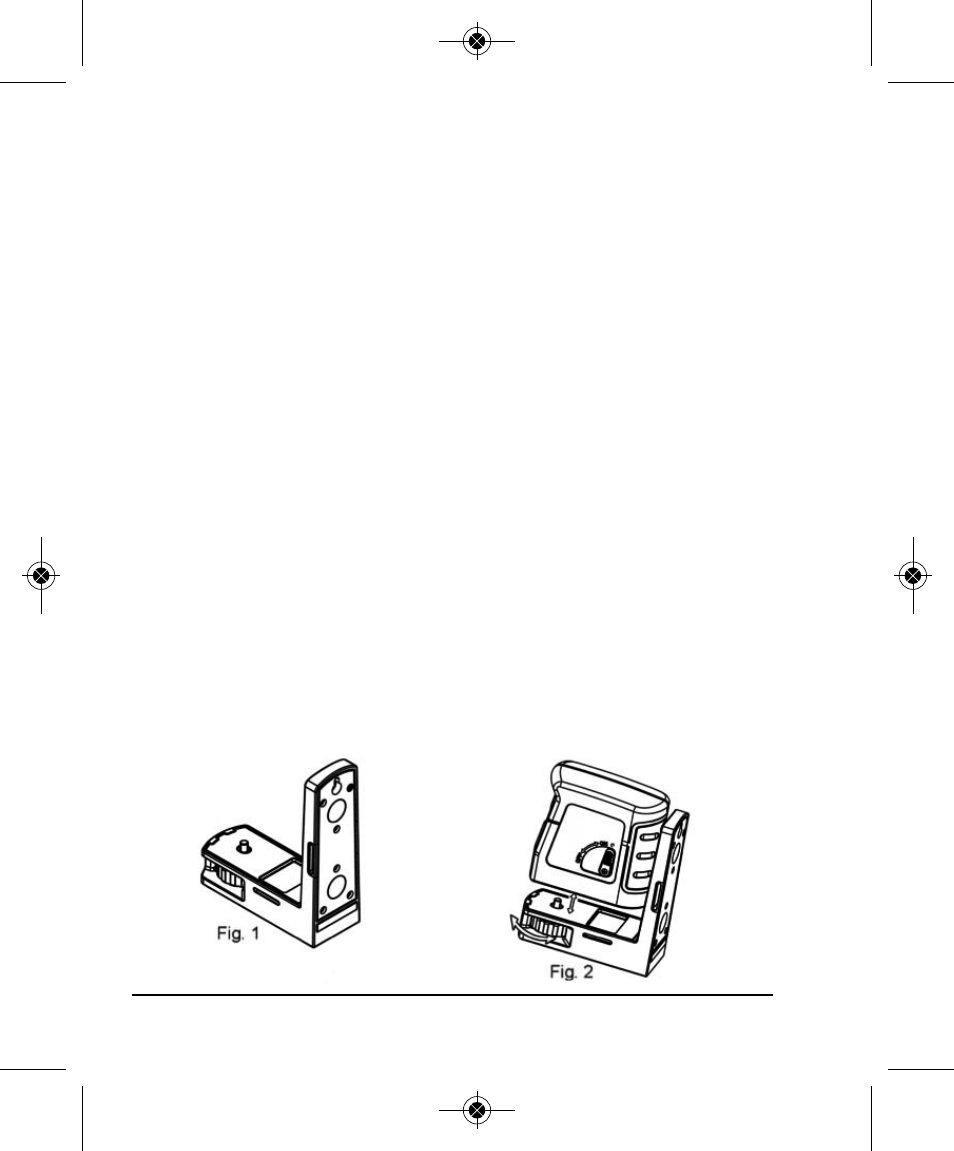

1. As shown in fig. 1, take out the magnetic base.
2. As shown in fig. 2, install the instrument on the base by
rotating the connecting knob counter-clockwise.
3. As shown in fig. 3 and fig. 4, the instrument can be rotated on the base.
4. As shown in fig. 5, the instrument can be hung on the wall or
column by a nail.
