1-18 Chapter 1: Product introduction
1.12 Connectors
This section describes and illustrates the internal connectors on the motherboard.
1. Hard disk activity LED (2-pin IDE_LED1)
This connector supplies power to the hard disk activity LED. The read or write
activities of any device connected to the primary or secondary IDE connector
cause this LED to light up.
2. Floppy disk drive connector (34-1 pin FLOPPY)
This connector supports the provided floppy drive ribbon cable. After
connecting one end to the motherboard, connect the other end to the floppy
drive. (Pin 5 is removed to prevent incorrect insertion when using ribbon cables
with pin 5 plug).

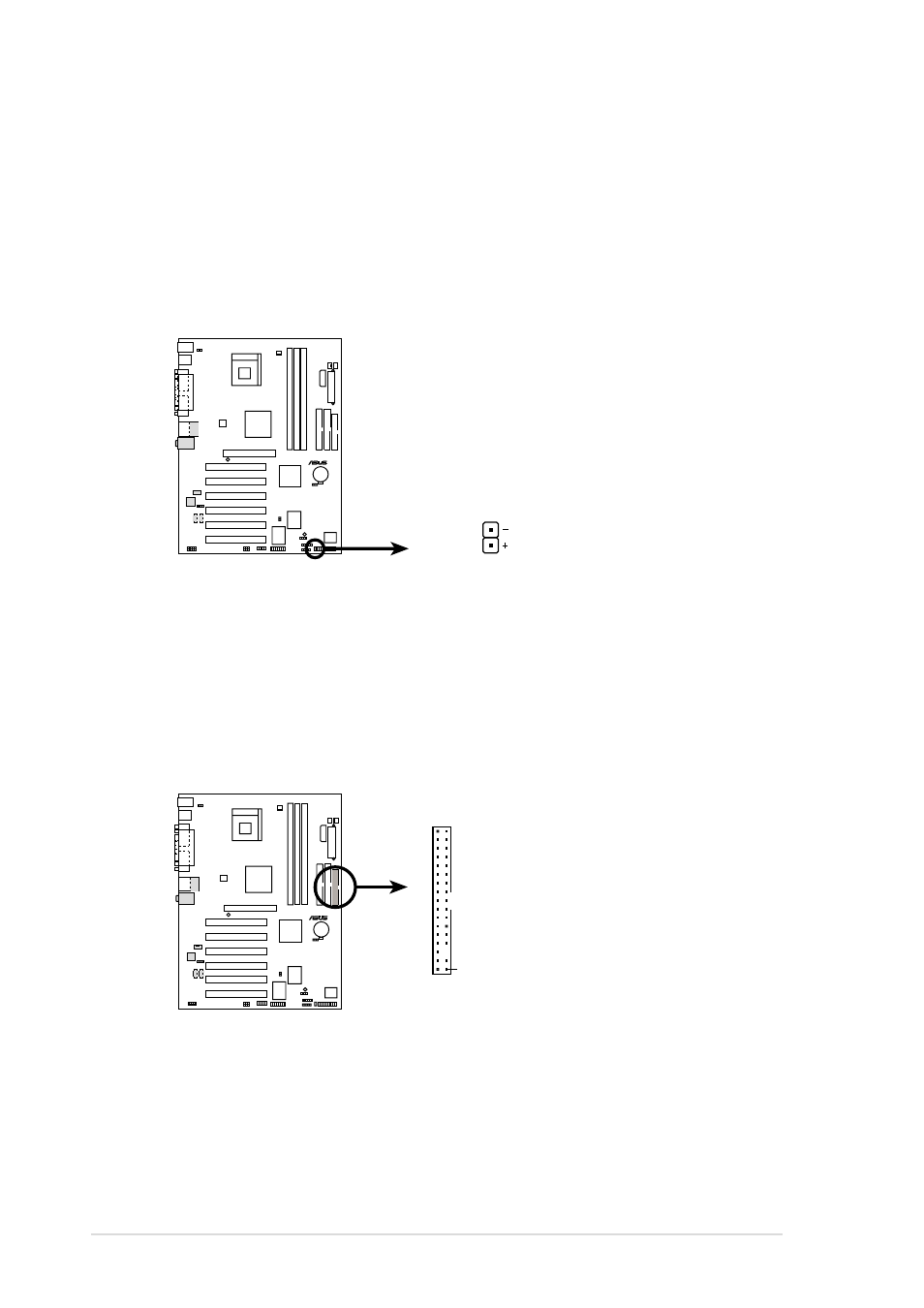

P4PE BP
®
P4PE BP HD Activity LED
TIP: If the case-mounted LED does not
light up, try reversing the 2-pin plug.
IDE_LED1
P4PE BP
®
NOTE: Orient the red markings on
the floppy ribbon cable to PIN 1.
P4PE BP Floppy Disk Drive Connector
PIN 1
FLOPPY1
