1-16 Chapter 1: Product introduction
1.11 Jumpers
1. Keyboard power (3-pin KBPWR1)
This jumper allows you to enable or disable the keyboard wake-up feature. Set
this jumper to pins 2-3 (+5VSB) if you wish to wake up the computer when you
press a key on the keyboard (the default is the Space Bar). This feature
requires an ATX power supply that can supply at least 1A on the +5VSB lead,
and a corresponding setting in the BIOS.
2. Wireless PCI and USB settings (3-pin WPCI_USB)
These jumpers are reserved. DO NOT change the default settings.

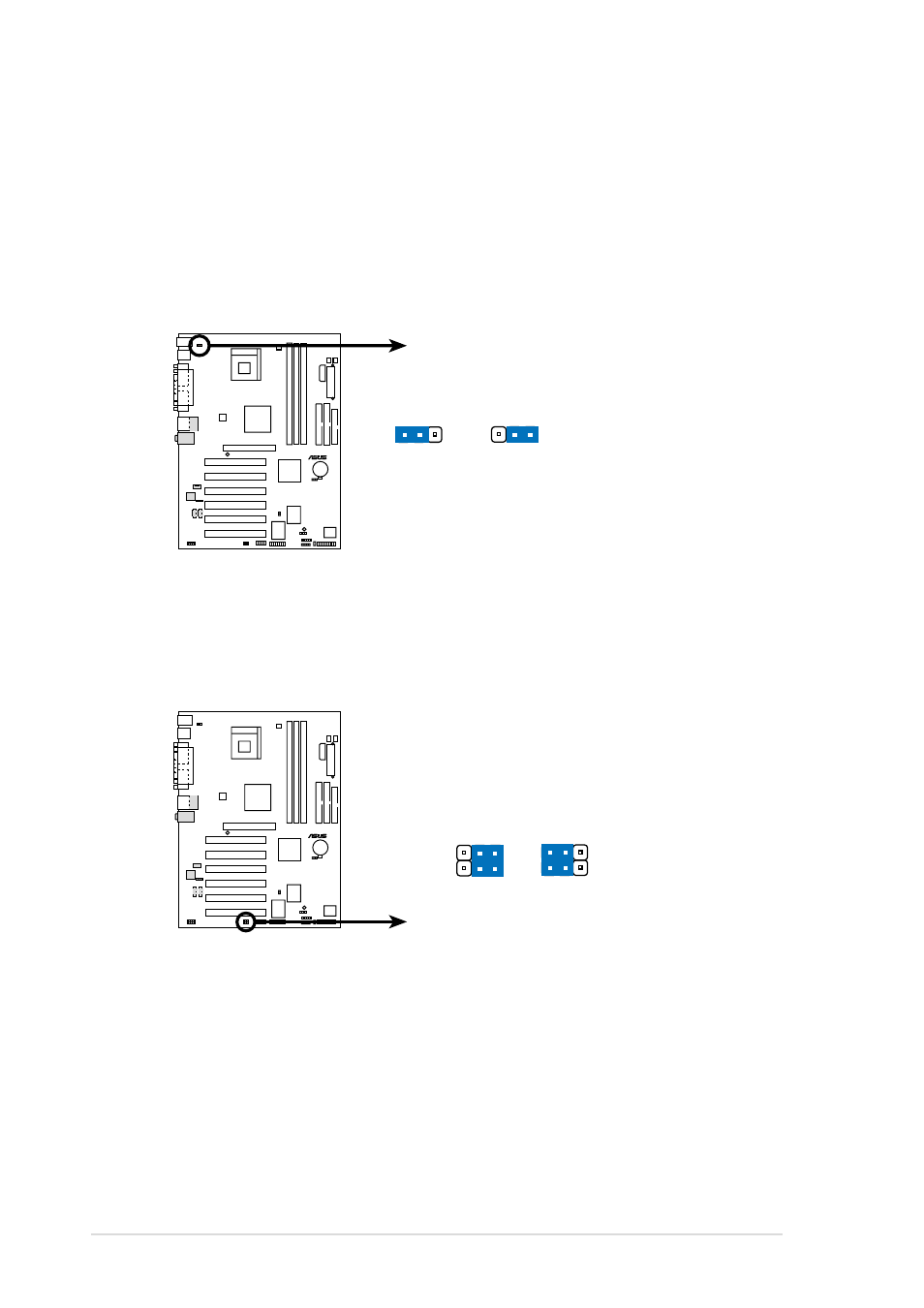

P4PE BP
®
P4PE BP WPCI_USB Setting
WPCI_USB
Wireless
PCI_USB
(Default)
3 5
4 6
1 3
2 4
Original
PCI
reserved pin
P4PE BP
®
P4PE BP Keyboard Power Setting
KBPWR1
+5V
(Default)
+5VSB
2 3 1 2
