M.Wiring Diagram
(Power Adapter With Built-in Wireless FM Modulator)

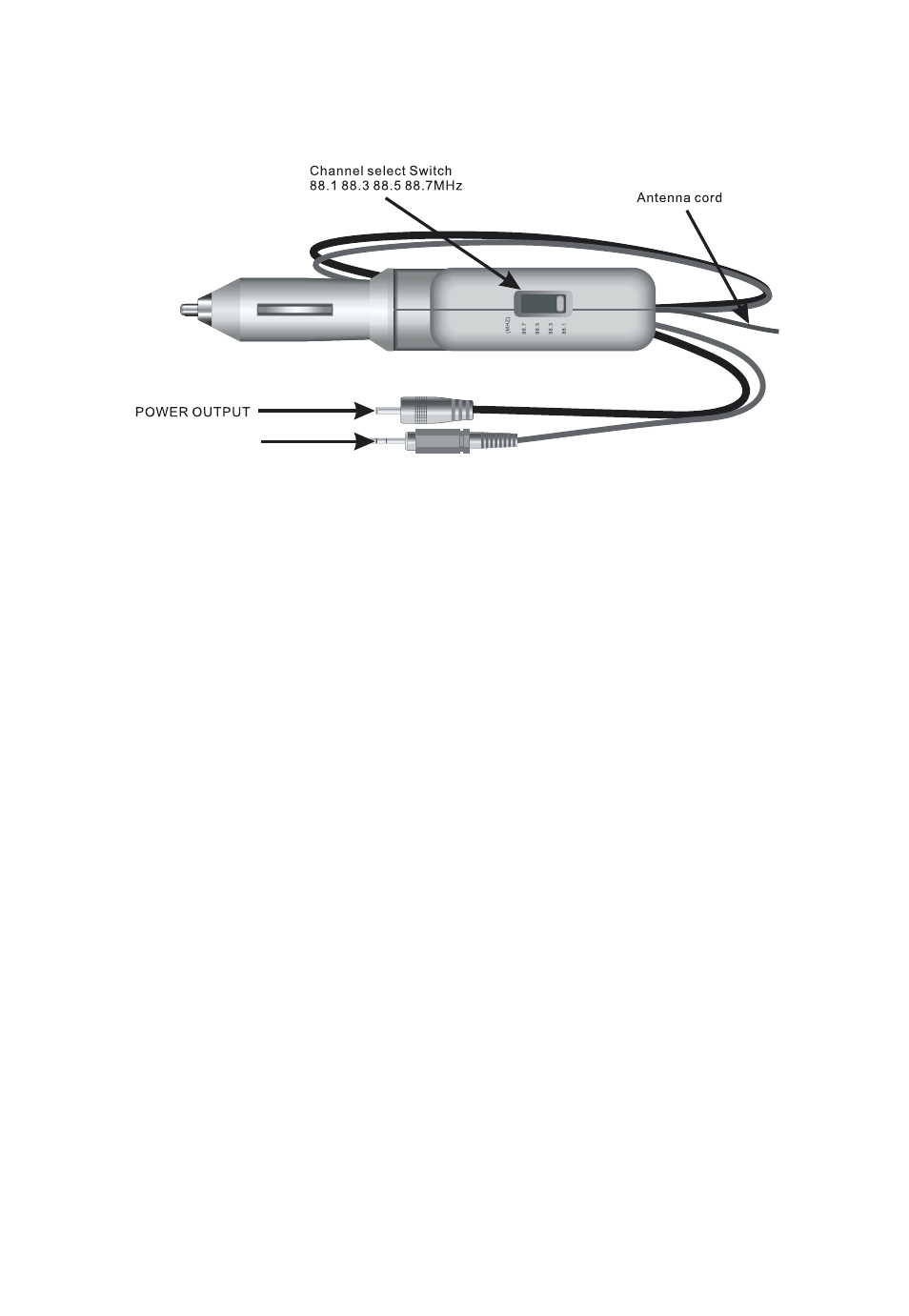

This power adapter has a built-in wireless FM Modulator. The FM modu-
lator is designed to transmit the audio from your DVD player to your
vehicle radio.
The channel select switch is used to select the modulator frequency
(88.1MHz, 88.3MHZ, 88.5MHz and 88.7MHz). The vehicle radio must
be tuned to the same frequency that is selected on the wireless FM
modulator.
Installation:
1) Plug the Power Adapter into the 12 VDC outlet in the vehicle.
2) Connect the 3.5mm audio jack to the audio output jack on the rear of
the DVD player.
3) Connect the DC jack to the 9 VDC input on the side of the DVD
player.
4) Tune the vehicle radio to the same frequency that is selected on the
modulator.
NOTE:
For best performance, use a radio frequency that is not
in use in your local area.
AUDIO L/R INPUT
