When adding oil or checking the level, the en-
gine must be in a horizontal position.
6

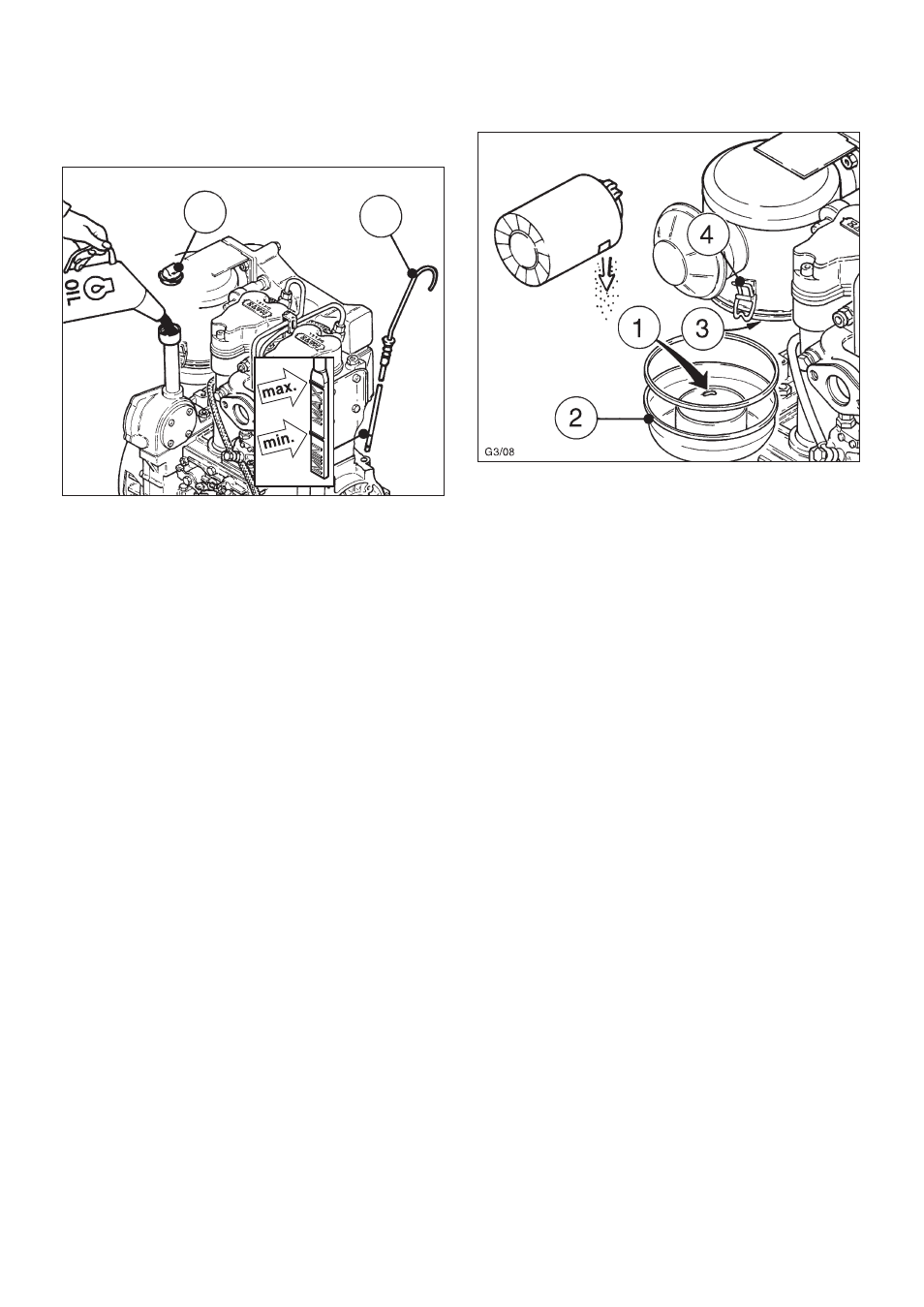

– Remove oil filler screw „1“ and dipstick „2“.
– Add engine oil up to the max. mark on the
dipstick.
Lubricating oil capacity: see Chapter 3.1.
– Insert the oil filler screw and tighten it (hand-
tight only).
Attention !
If the engine is operated while the oil level is
below the min. mark or above the max. mark,
it can cause damage to the engine.
1
2
4.1.2. Oilbath air cleaner
7
If a cyclone-type dust trap is fitted, make sure
that the dust outlet is pointing in the correct
direction.
– Fill the oil tank up to mark „1“ with engine oil.
– Attach oil tank „2“, making sure that sealing
ring „3“ is correctly seated and clips „4“ are
fastened securely.
9
