12

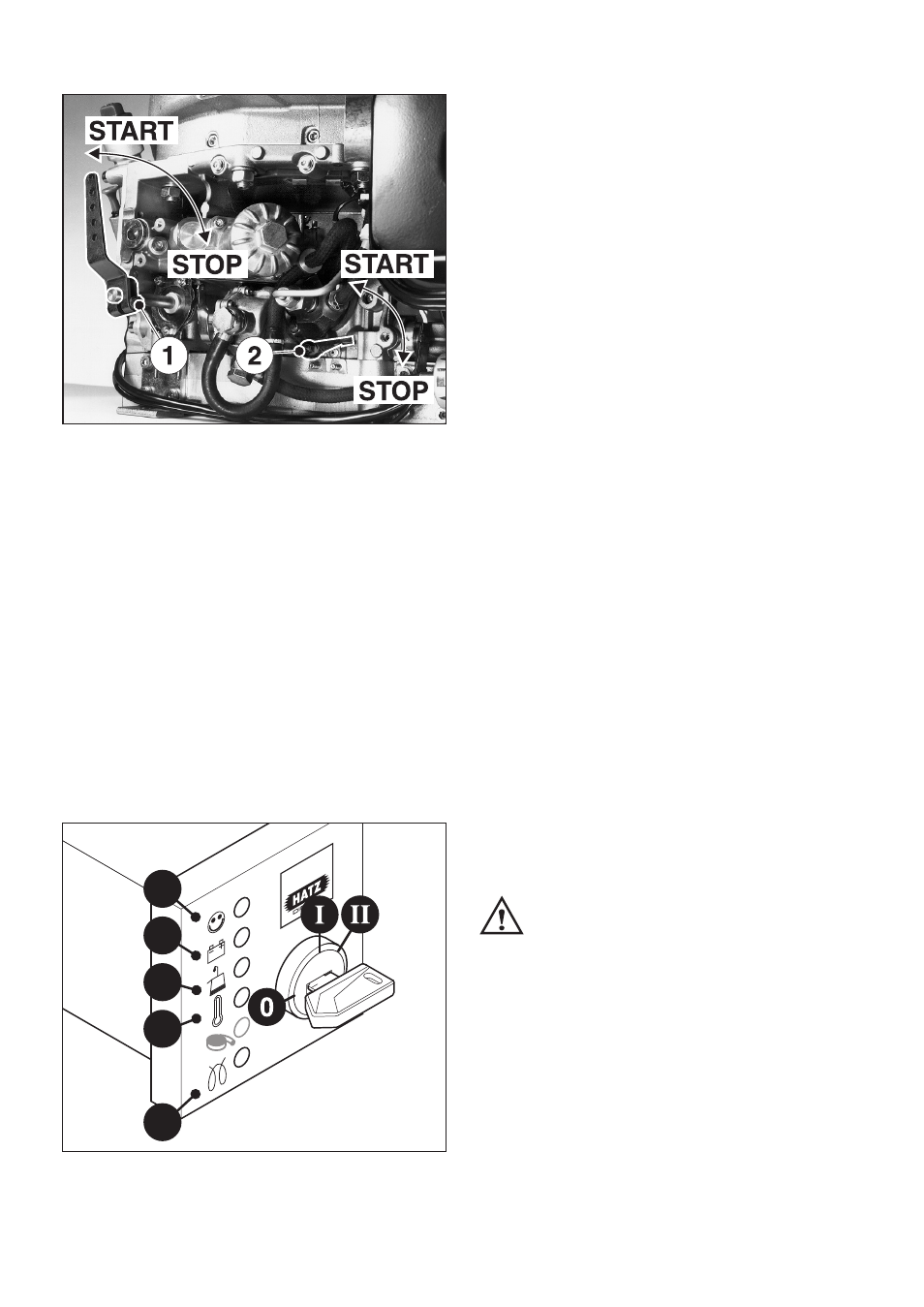

– Set speed control lever „1“ to a position be-
tween 1/2 START and max. START, according
to requirements.
Selecting a lower engine speed will reduce
smoke when starting.
– Make sure that stop lever „2“ - if fitted - is in
the operating „START“ position.
4.2.2. Electric starter
For preparations to start, see Chapter 4.2.1.
Starting procedure
13
– Insert start key and turn to position I (Fig. 13)
– Battery charge telltale „2“ and oil pressure
warning „3“ must light up.
– Turn start key to position II (Fig. 13).
– As soon as the engine runs, release the start
key. It must return to position I by itself and
remain in this position during operation.
The battery charge telltale and oil pressure
warning must go out immediately after start-
ing. Indicator light „1“ is on when the engine
is in operation.
– If anything seems to be incorrect, stop the en-
gine immediately and trace and rectify the fault
(chapt. 6).
– The engine temperature display „4“ (additional
equipment) lights up if the temperature at the
cylinder head becomes too high.
Switch off the engine and trace and elimi-
nate the cause of the problem, chapter 6.
– Always turn the start key back to position 0
before re-starting the engine. The repeat lock
in the ignition lock prevents the starter motor
from engaging and possibly being damaged
while the engine is still running.
Note:
Start for max. 30 seconds. If the engine does
not run after this time, turn starter key back to
position 0 and eliminate the cause, Chapter 6.
Never operate the electric starter when
the engine is running or coasting to a
standstill. There is a risk of broken starter pin-
ion or ring gear teeth.
Important !
If a starter protection module is installed, the
start key has to be returned to position 0 for at
least 8 seconds after the engine has failed to
start or after switching it off before a further at-
tempt can be made to start the engine.
1
2
3
4
5
