The engine must be in a horizontal position be-
fore adding oil or checking the oil level.
6

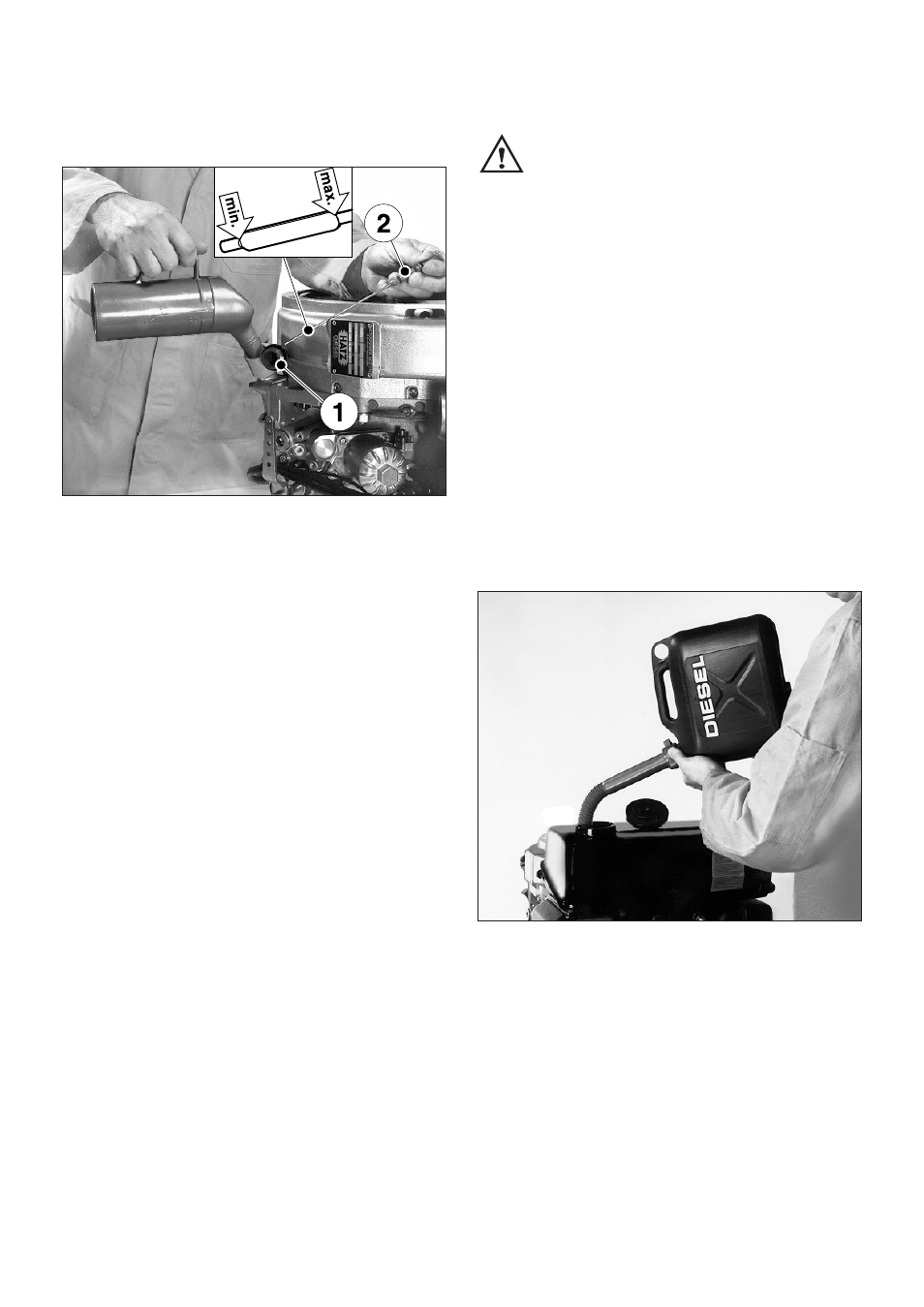

– Remove oil fill screw „1“ and dipstick „2“.
– Add engine oil up to the max. mark on the
dipstick.
Lubricating oil capacity: see Chapter 3.1.
– Tighten oil fill screw by hand.
Attention !
If the engine is operated while the oil level is
below the min. mark or above the max. mark,
it can cause damage to the engine.
4.1.2. Fuel
Only refuel when engine is stopped.
Never refuel close to open flames or
flammable sparks, don’t smoke. Use only pure
fuel and clean replenishing cups. Don’t spill
the fuel.
All diesel fuels sold as fuel and complying with
the following minimum specification can be
used:
EN 590 or
BS 2869 A1 / A2 or
ASTM D 975 - 1D / 2D
Important !
The use of fuels of different specifications
requires the prior written consent of the HATZ
headquarters.
7
– Add diesel fuel to the fuel tank until it is at
leasthalf full.
The fuel system is bled automatically if the fuel
tank is attached to the engine or located higher
than the injection pump.
9
