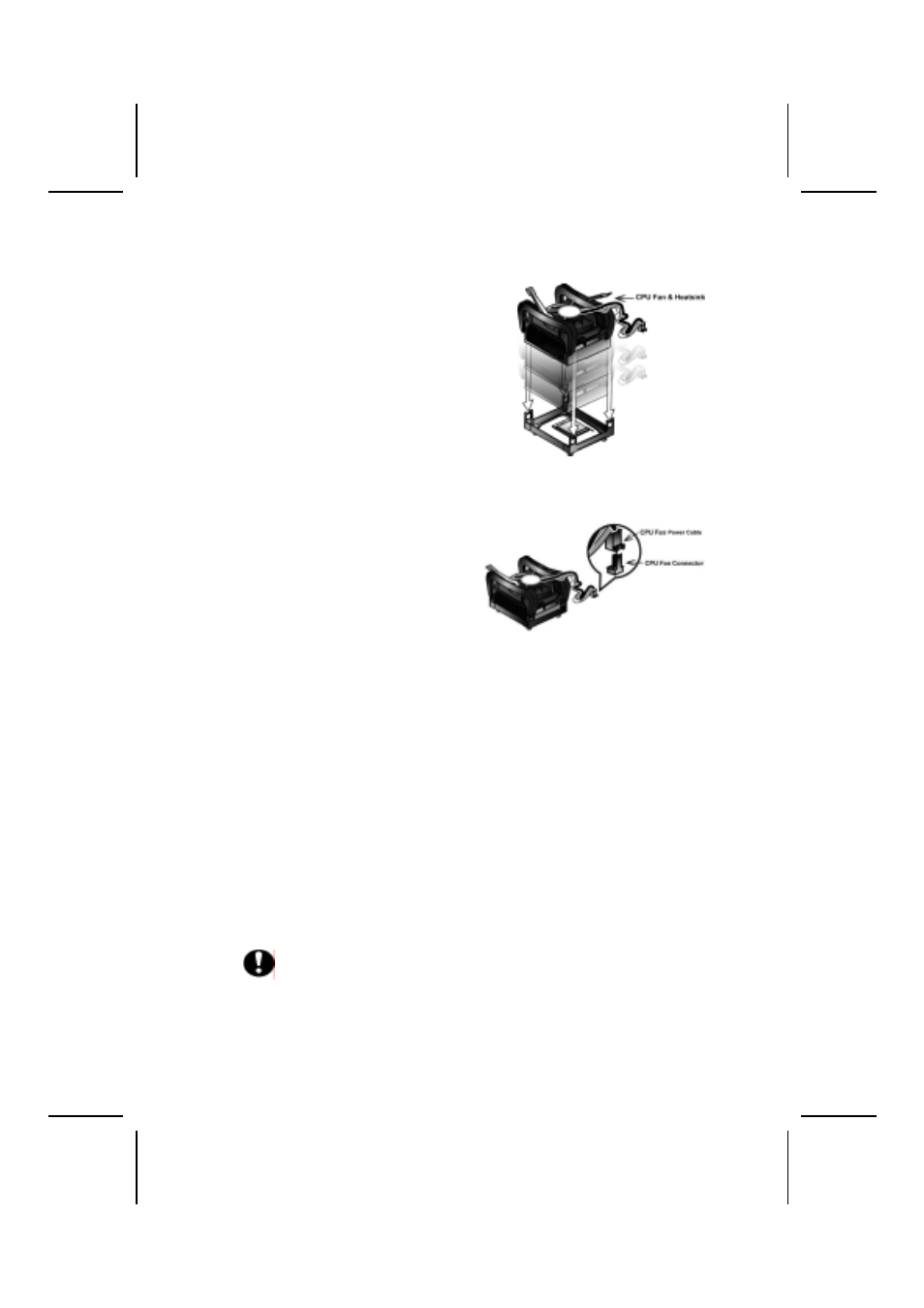

4. Apply thermal grease on top of the CPU.
5. Put the CPU Fan down
on the retention module
and snap the four
retention legs of the
cooling fan into place.
6. Flip the levers over to lock the heat sink in place.
7. Connect the CPU
Cooling Fan power cable
to the CPUFAN1
connector. This
completes the
installation
.
Notes:
•
To achieve better airflow rates and heat dissipation, we suggest that
you use a high quality fan with 4800 rpm at least.
•
CPU fan and heatsink installation procedures may vary with the type of
CPU fan/heatsink supplied. The form and size of fan/heatsink may also
vary.
Installing Memory Modules
This motherboard accommodates two 184-pin 2.5V unbuffered Double Data
Rate (DDR) SDRAM memory modules. Double Data Rate (DDR) SDRAM
doubles the rate to 2.7 GBps and 5.4 GBps. The memory chips must be stan-
dard SDRAM (Synchronous Dynamic Random Access Memory). The memory
bus can run up to 200 MHz.
You can install DDR266/333/400 memory modules; the motherboard accom-
modates two memory modules. You must install at least one module in any of
the two slots. Each module can be installed with 128 MB to 1 GB of memory;
total memory capacity is 2GB.
Do not remove any memory module from its antistatic packaging until
you are ready to install it on the motherboard. Handle the modules only
by their edges. Do not touch the components or metal parts. Always
wear a grounding strap when you handle the modules.
Refer to the following to install the memory modules.
1. This motherboard supports unbuffered DDR SDRAM only. Do not attempt
to insert any other type of DDR SDRAM into the slots.
