H87h3-m user manual, Chapter 2 – Elitegroup H87H3-M (V1.0) User Manual
Page 22
Chapter 2
18
H87H3-M USER MANUAL

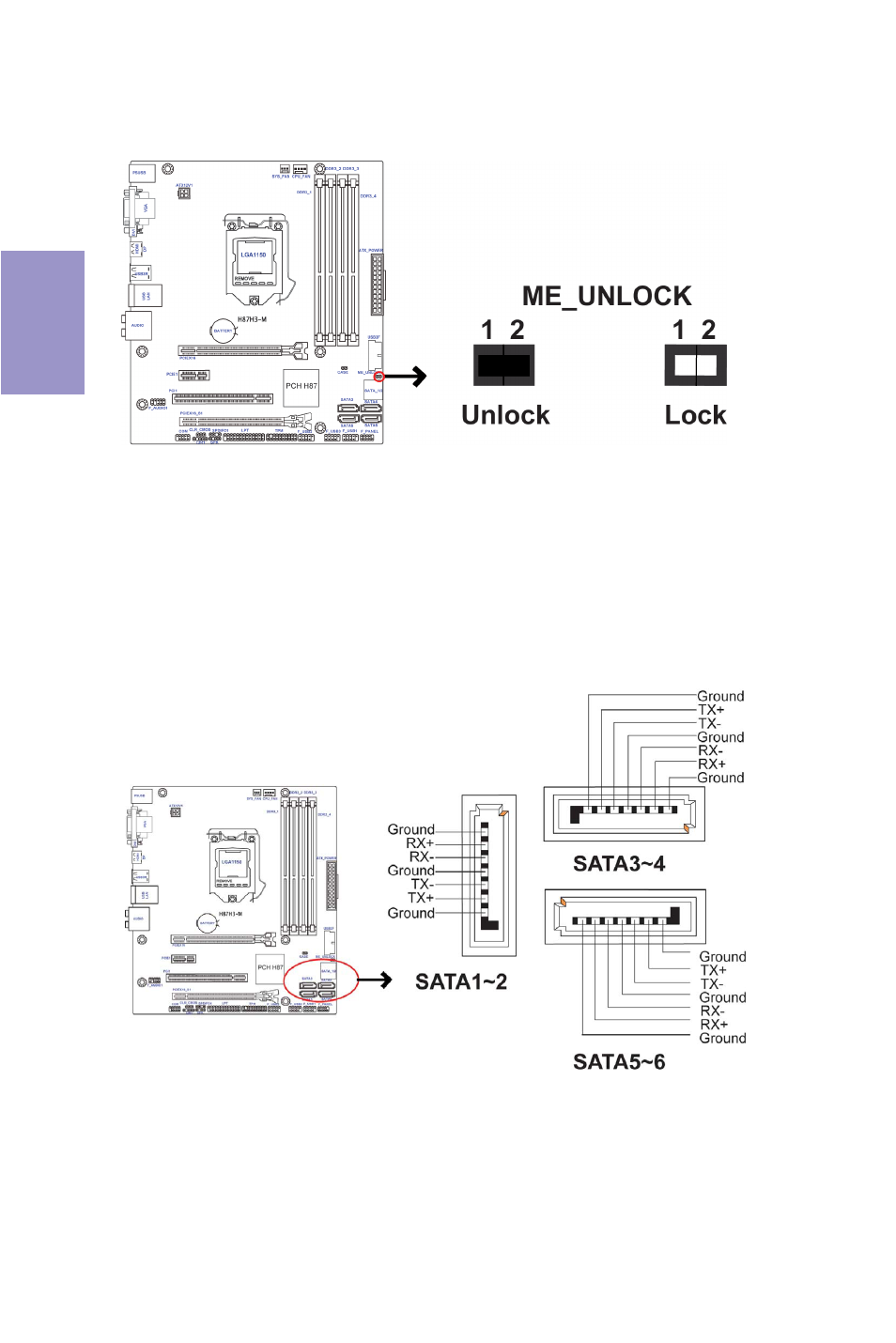

3. ME_UNLOCK: ME Unlock Header
SATA1~6 connectors are used to support the Serial ATA 6.0Gb/s device, simpler disk
drive cabling and easier PC assembly. It eliminates limitations of the current Paral-
lel ATA interface. But maintains register compatibility and software compatibility
with Parallel ATA.
4 & 5. SATA1~6: Serial ATA connectors
