Chapter 2

28

H87H3-M4 USER MANUAL

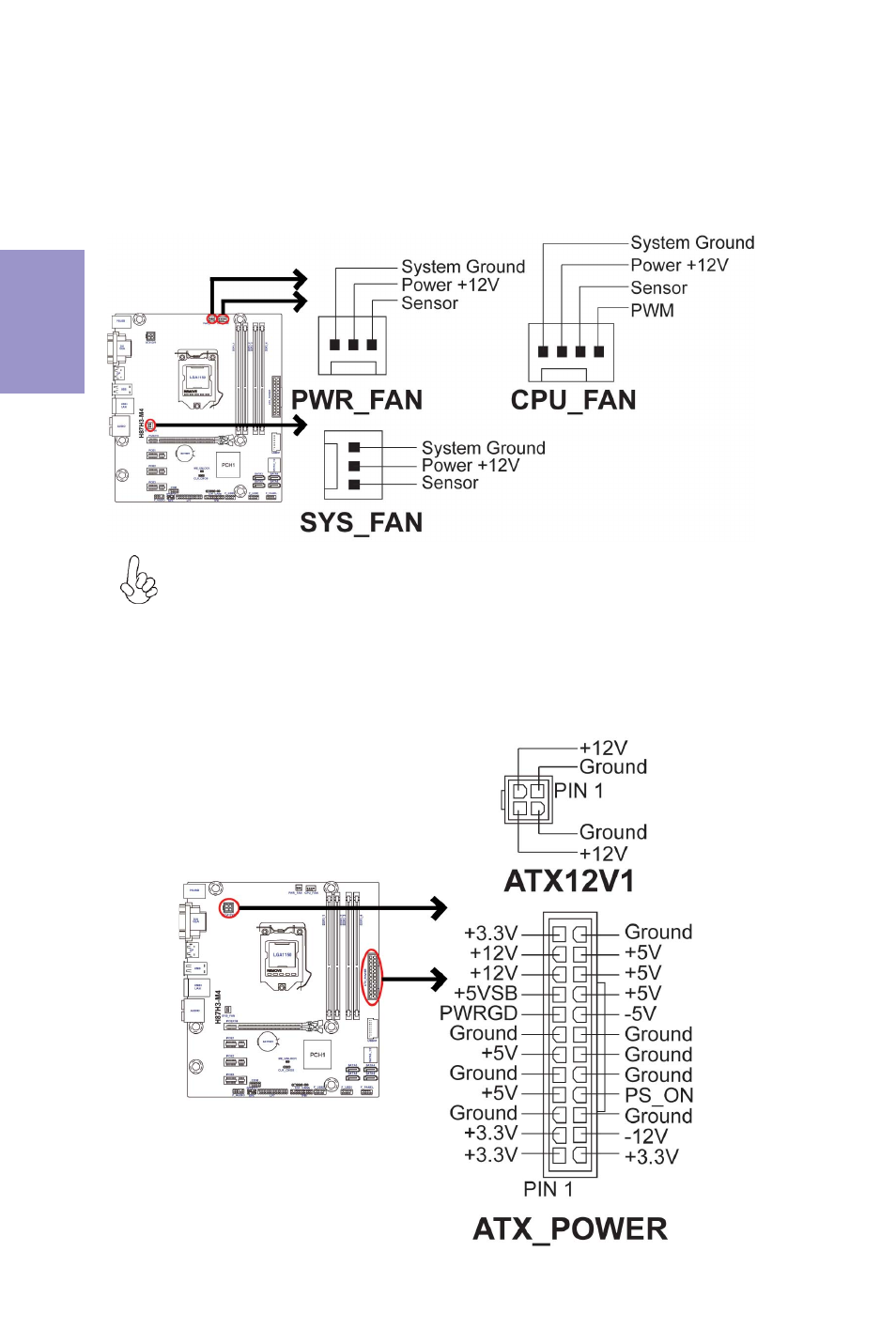

1 & 2 & 6. CPU_FAN (CPU Cooling FAN Connector) & PWR_FAN (Power Cooling
FAN Connector) & SYS_FAN (System Cooling FAN Connector)

Connect the CPU cooling fan cable to CPU_FAN.

Users please note that the fan connector supports the CPU cooling fan of 1.1A
~ 2.2A (26.4W max) at +12V.

Connect the system cooling fan connector to SYS_FAN.
Connect the power cooling fan connector to PWR_FAN.

3 & 7. ATX_POWER (ATX 24-pin Power Connector) & ATX12V (ATX 12V Power
Connector)

Connect the standard power supply connector to ATX_POWER.
Connect the auxiliary case power supply connector to ATX12V1.
