9 - 29
9.1 REAR AXLE DISASSEMBLY
1. Remove wheel, hub cap, cotter pin, and retainer
from short axle and remove short axle.
2. Remove roll pin in long axle and remove long axle
along with washer on inside of axle.
3. Inspect all parts for wear or damage and replace
as necessary.
4. Assemble in reverse order.
9.2 GEAR CASE REMOVAL
1. Remove wheel, cotter pin, spindle cup and hub cap
from short axle and remove axle.
2. Drive roll pin out of long axle opposite gear case
and remove long axle along with washer inside of
axle bearing.
3. Remove cotter pin from brake rod and remove rod.
4. Remove three flange whizlock screws from seal
and remove seal.
5. Remove three cap screws holding gear case to
frame and remove gear case.
SECTION 9 - DRIVE TRAIN

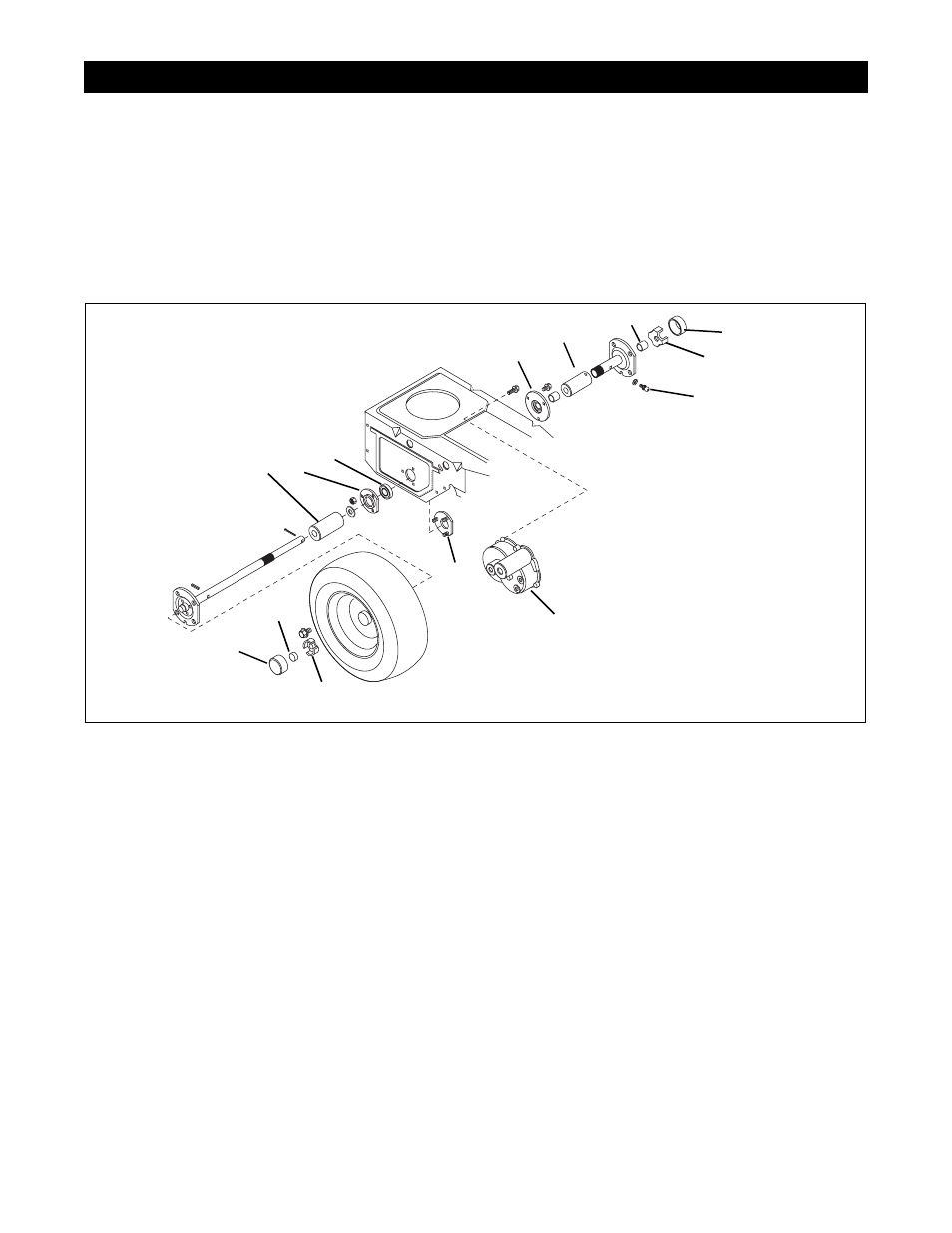

Figure 29
1. Hub Cap
2. Spindle Cup
3. Sleeve Bushing
4. Zerk Fitting
5. Tube
6. Seal
7. Bearing Flange
8. Gear Case-Complete
9. Push Nut
10.Tube
11.Bearing Flange
12.Radial Bearing
PA0160
1
2
3
4
5
6
7
8
9
10
11
12
1
2
