4.1 CONTROLS AND FEATURES
SECTION 4 - GENERAL MAINTENANCE & ADJUSTMENTS
R
N
1
2
3
4 5 6
Speed
Selector
Located on
r ight hand
side of
dr iver's seat
WARNING
Read operator's manual.
Understand location and
function of all controls.
Look down and behind before
and while backing.
Remove objects thatcould be thrown
by the blade.
Avoid sudden turns.
Check interlock system per manual
before use.
Keep all sheilds in place.
Never carry childern.
Keep people and pets away when operating
machine. Go up and down slopes, not across. If machine stops going uphill. shut off
PTO and back down slowly.
Release parking brake
Depress clutch pedal
Shift to 1st or 2nd speed
Slowly release clutch
Shift to desired speed
Depress clutch pedal
Depress Brake pedal
Before leaving operator's
position:
Shift to neutral
Engage parking brake
Disengage mower clutch
Stop Engine
Remove ignition key
Wait for all movement to stop
Disconnect spark plug wire
Before tipping unit, drain
gas tank and remove
battery - if electric
GO
STOP
SERVICING
TO AVOID SERIOUS INJURY
OR DEATH
Before starting engine be
sure machine is in neutral
and mower clutch is
disengaged
CA CAUTION UTION
Depress clutch pedal
and push latch to set. P
OS0792

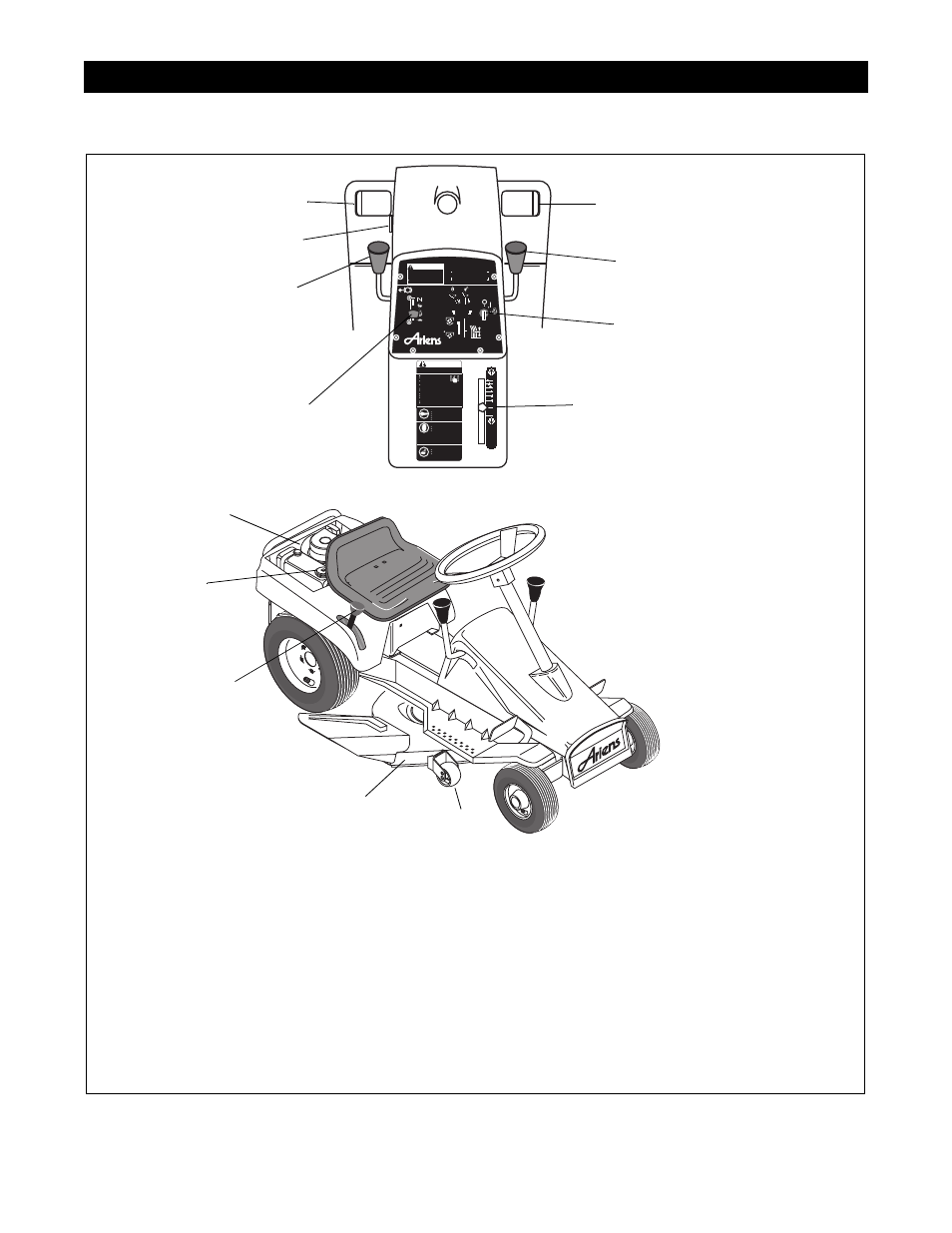

1. Throttle Control
2. Mower Clutch Lever
3. Parking Brake
4. Clutch Pedal
5. Brake Pedal
6. Mower Height Lever
7. Ignition Key Switch 8. Speed Indicator
9. Speed Selector
10.Engine Oil Fill
11.Fuel Tank Fill
12.Mower Pan
13.Roller
Figure 2
1
2
3
4 5
6
7
8
9
10
11
12
13
