14 Source 3000 Operation and Maintenance Manual

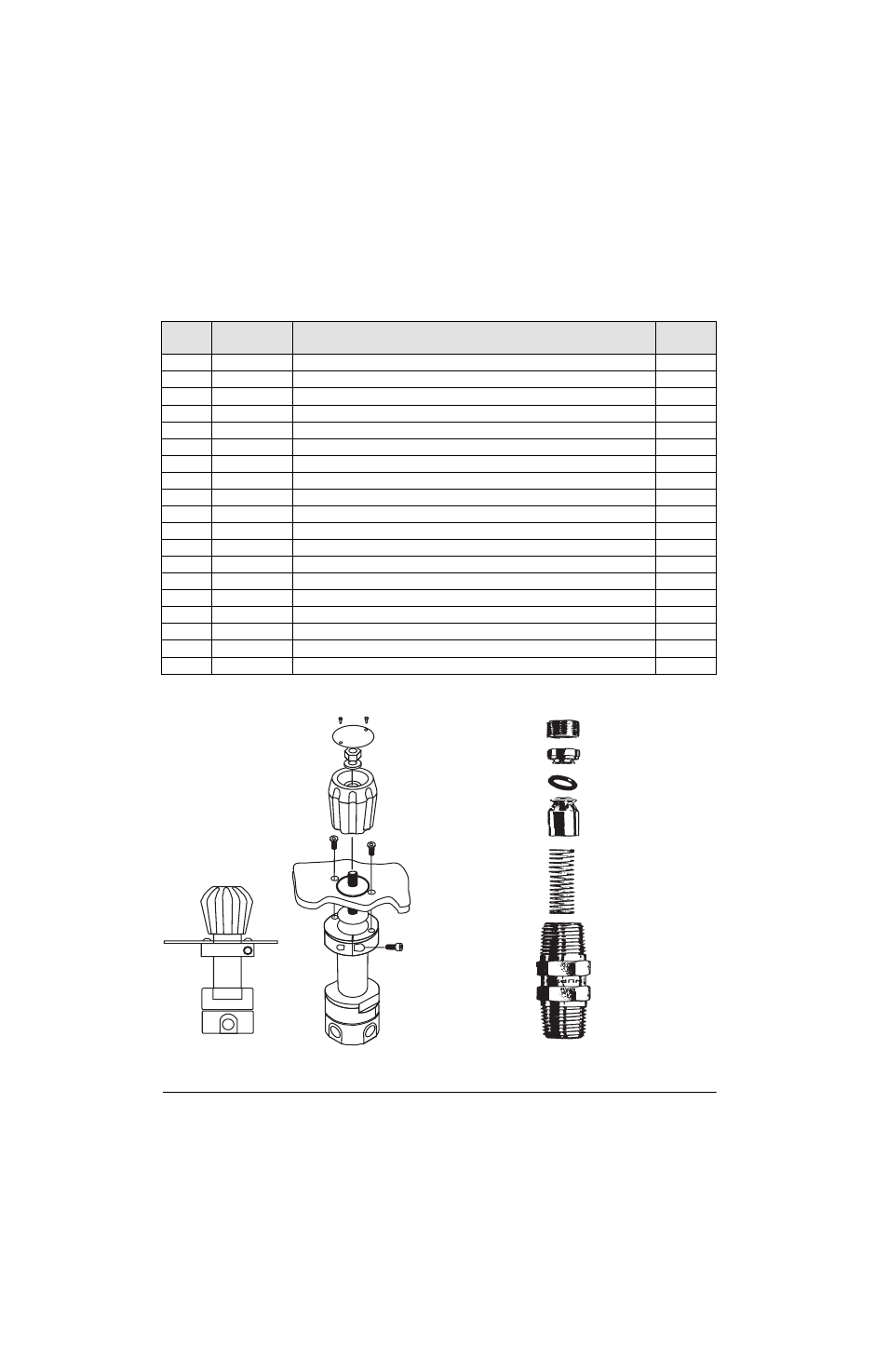

Figure 3-1. Standard Pneumatic Regulator (PN 65455) Figure 3-2. Nitrogen Inlet Check Valve Assembly (PN 60263)
20 56784 Locknut,9/16-18UNF-3A, SST 1
21 59845 Plug,Expansion , .1562 +.0000/-.0012 Hole Diameter 14
23 59383 Setscrew,6-32NCx1/8 SST 4
24 58342 Screw,Cap Hex Socket Head, #2-56UNC-3A Purchase per MIL Spec 16995-2 6
25 59322 Setscrew,6-32NCx1/4 SST 6
26 59326 Setscrew,2-56NCx1/8, alloy steel 4
27 55554 O-ring,AS568A Dash No 010, Buna N (Nitrile) 70 Durometer Color Black 5
28 55536 O-ring,AS568A Dash No 002, Buna N (Nitrile) 70 Durometer Color Black 4
29 55573 O-ring,AS568A Dash No 117, Buna N (Nitrile) 70 Durometer Color Black 1
30 60633 Retainer, Packing Backup , Single Turn Tetrafluoroethylene 4
31 55570 Washer,Backing .04 Thick, Tetrafluoroethylene Resin 4
32 55577 O-ring,AS568A Dash No 111, Buna N (Nitrile) 70 Durometer Color Black 1
33 59245 Washer,#8 Screw Size .187, ID x .440 OD x .040 Thick Nylon 2
34 60202 Setscrew, hex 2
35 60837 Screw, MACH Pan Head #10- 32NFx1/2 Phillips Head 300 Series SST 2
36 58976 Screw,Self Sealing,8-32 x 5/8 Modified to Print 1
38 53308 Label Roll,1.25x1.25, Polytrans 3000 Void 3" Core 8" OD 1
41 59878 Spacer .005 thk Mylar 2
42 59880 Spacer .007 thk Mylar 2
Ref
Number PN Description Quantity
Table 3-2. Orion 2C Valve Assembly Parts List
INSERT LOCK SCREW
INSERT
O-RING (PN 66654)
POPPET
SPRING
BODY
