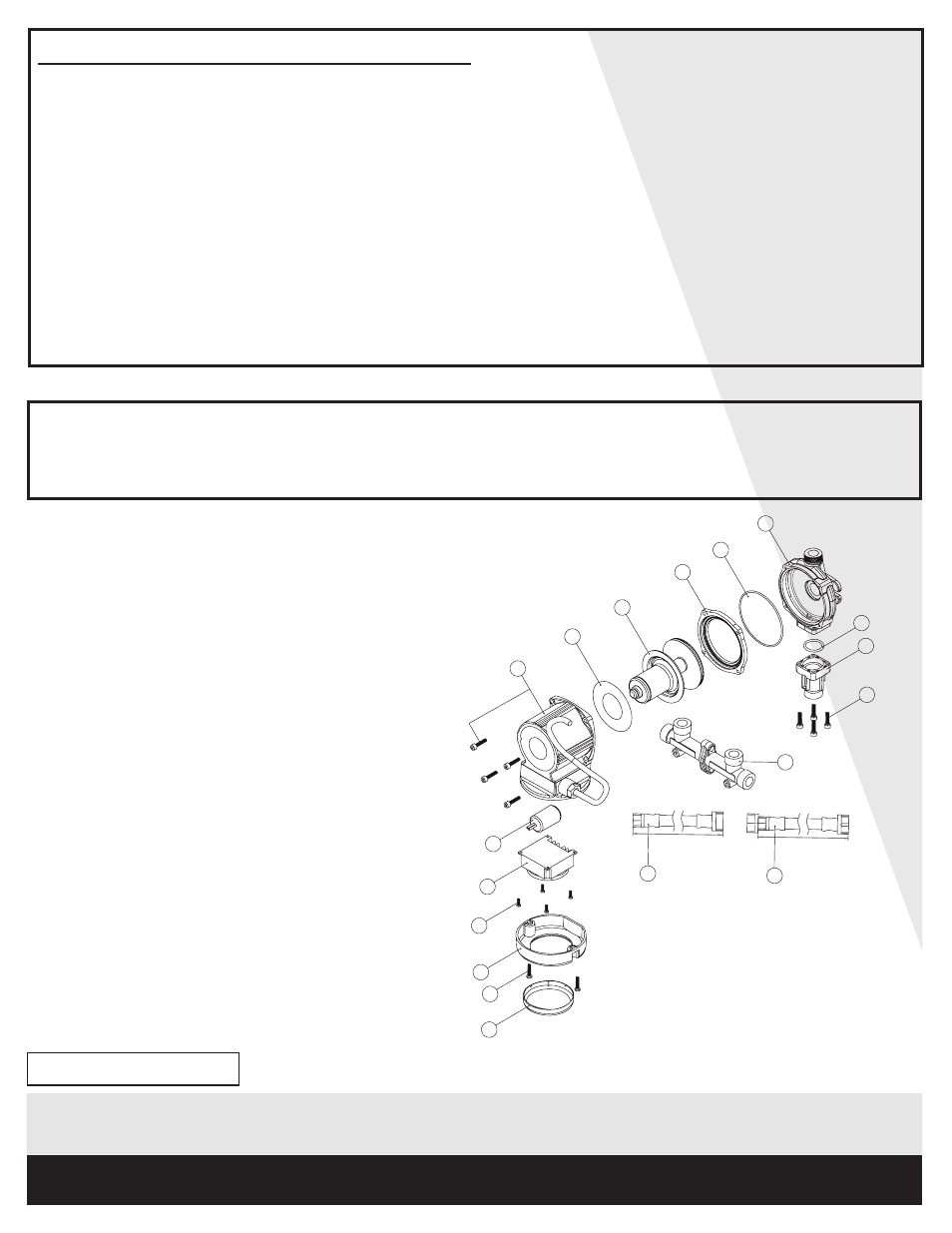

REPAIR PARTS
Ref Pieces Descriptions
1 310178 Complete motor
2 310179 Insulation sheet
3 310180 Rotor & impeller assembly
4 310181 Seal plate
5 310182 Pump ‘ O ‘ ring
6 310183 Pump housing
7 310184 Inlet ‘ O ‘ ring
8 310186 Inlet adaptor
9 310187 Inlet adaptor screws (4)
21 310177 Capacitor
22 310176 Timer
23 310175 Timer screws (4)
24 310174 Capacitor top cover
25 310173 Screws (2) (Capacotor case)
26 310172 Timer cover
31 310188 Thermostatic valve
32 310189 Threaded flex hose 3/8" X 1/2"
33 310190 Threaded flex hose 1/2" X 1/2"
Repair parts may be ordered from your autorized point of sale or from
BUR-CAM PUMPS
5
FOR INFORMATION TEL: 514.337.4415 FAX: 514.337.4029
300521 2011
1/2” 3/8”
1”
1/2” 1/2”
1”
08
07
01
02
03
04
05
06
22
21
23
24
25
26
32 33
31
09
Genie by-pass valve operation :
Trouble shooting
AFTER THE INSTALLATION, IF THERE IS NO HOT WATER AT THE HOT WATER
FAWCET OR IF THERE IS HOT WATER ON THE COLD WATER SIDE, PLEASE PROCEED WITH
THE FOLLOWING STEPS TO DETERMINE IF THE GENIE BY-PASS VALVE IS FULLY FUNCTIONAL.
A. Close the cold water supply valve under your sink.
B. Open the cold water fawcet to test the Genie by-pass valve.
C. The water should flow from the fawcet until hot water reaches the Genie by-pass
valve. Then, the flow should eventually decrease until no more water is flowing
from the cold water fawcet when the Genie by-pass valve is closed. If the Genie
by-pass valve does not close, you will have a mixture of cold and hot water.
Contact our customer service departement at 1.800.361.1820.
