Aquatic AI30AIR6642 - Manual

The manufacturer accepts a 1/4” variance. There are variations on each tub and specifications are subject to change as we improve upon our product as required. The dimensions needed for site preparation and structure building should be measured from the tub;
Aquatic Industries, Inc. assumes no responsibility for preparatory work.
www.aquaticwhirlpools.com 800.555.5324
Rough-In Plumbing
Measurements
serenity series

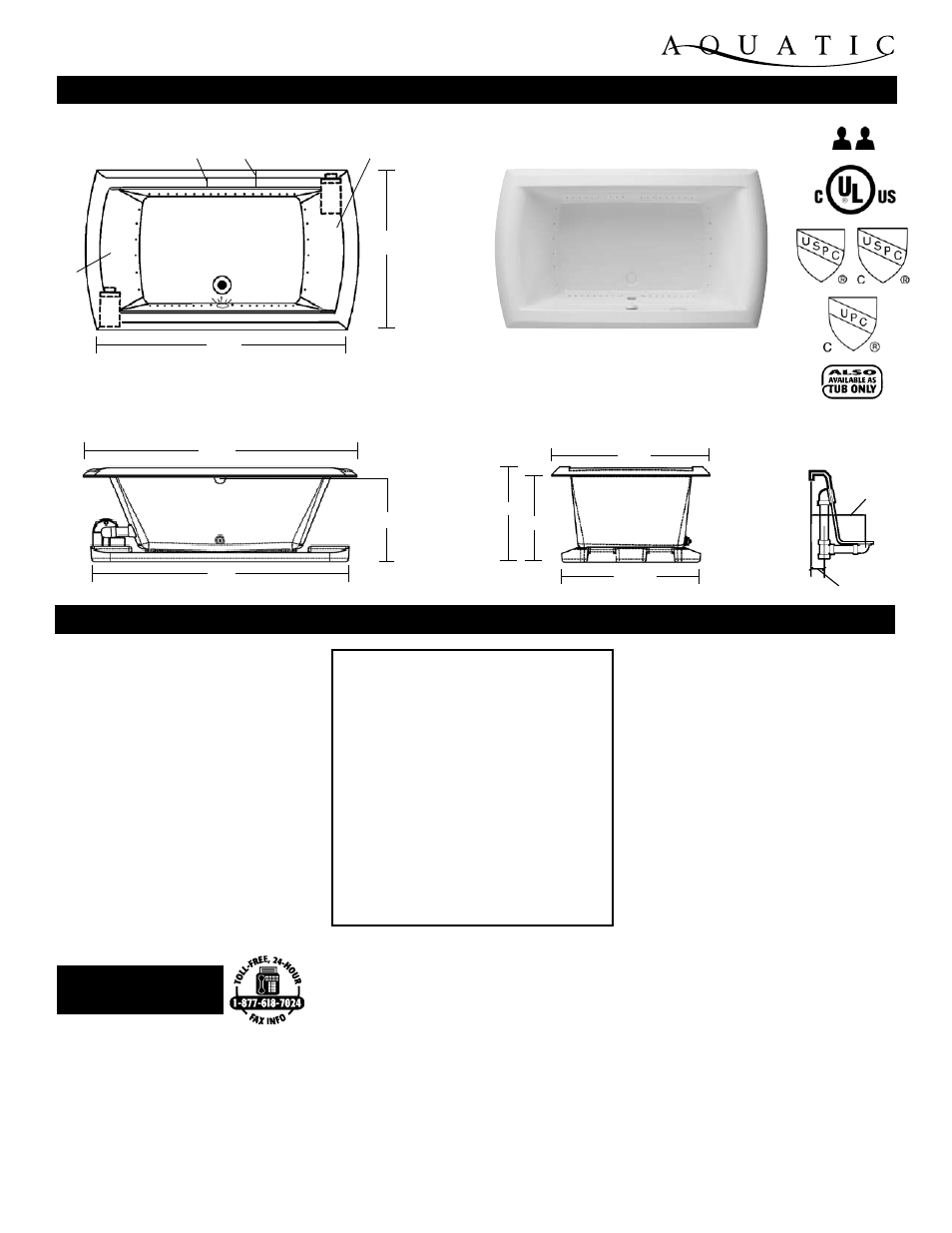

Model # AI30AIR6642 / AI30AIR6642To (Tub only)
serenity 30 Motif
42 1/2”
3 1/2”
12 1/2”
Deck Width
2 3/4”
Total Width
5 1/4”
sPeCifiCAtions:
GeneRal SPecIfIcatIonS:
Tub Size 65 3/4” x 42 1/2” x 24 1/4”
167 cm x 108 cm x 62 cm
Bathing Well 35” long
25 1/2” wide
21 1/4” interior depth
Maximum Water Depth 17”
Shipping Weight 189 lbs. / 86 kg
Tub Weight Filled 883 lbs. / 401 kg
Tub Only Weight 101 lbs. / 46 kg
Weight w/Equipment 111 lbs. / 50 kg
Gallons to Overflow 93 gal. / 352 L
electRIcal SPecIfIcatIonS:
Blower/Heater 1 HP; 10.5 AMP; 120V
Requirement 15 AMP; 120V, separate circuit
required protected w/ Class A GFCI
This unit is not recommended for shower installations.
•
Comfort Pillow - Oval or Rectangle
• Bolt-On Grab Bar
- White, Biscuit, Chrome, Polished Brass, Gold,
Polished Nickel, Satin Nickel or Oil Rubbed Bronze
• Lift & Turn Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel or Oil Rubbed Bronze
•
Cable Drive Waste and Overflow
- Chrome, Polished Brass, Gold, Polished Nickel,
Satin Nickel, Oil Rubbed Bronze or
Color Matched (Bone, White and Biscuit only)
• Waterproof Remote Control with infrared sensor
and 25’ cord
•
Remote Blower Wiring Kit
• Optional Blower Location
•
Premium Colors
All acrylic colors featured by Aquatic match the
industry’s leading fixture manufacturers.
oPtIonal equIPMent:
air Bath System:
- 48 Air Jets
- 1 HP Variable Speed Air Blower with 20-Minute Timer
- 600 Watt Air Heating System
- Electronic Control Package with Wave and Pulse Features
- Automatic Purge and Dry Cycle with Water Sensors
aquatic quality features:
- Chromatherapy
- Slip Resistant Floor
- Air Channels Lined with Antimicrobial Coating
- Extra Deep and Long Bathing Well
- Pre-leveled ABS Support Base
- Durable, Easy to Clean, Lucite® Cast Acrylic Surface
- available in 8 Standard No-Charge Colors
ul & IaPMo listed, factory tested
limited lifetime Warranty
StandaRd equIPMent:
Each Serenity Air Bath model is equipped with a 600 watt air heating system to raise the temperature of the air going into the bath. This air temperature
will be less than the bathing temperature of the water, but will help to reduce a rapid decrease in water temperature. In addition, the air coming from the
air jets will feel cool against the skin, just as a breeze on a warm day cools your body. This system does not heat the water.
fax-on-demand
document # 1301
Back
Angle 24˚
Back
Angle 22˚
21 1/4”
65 3/4” 42 1/2”
24 1/4”
62”
Two Person Bath
July 2008
39 1/2”
59 1/2”
2
1
21 3/4”
