O

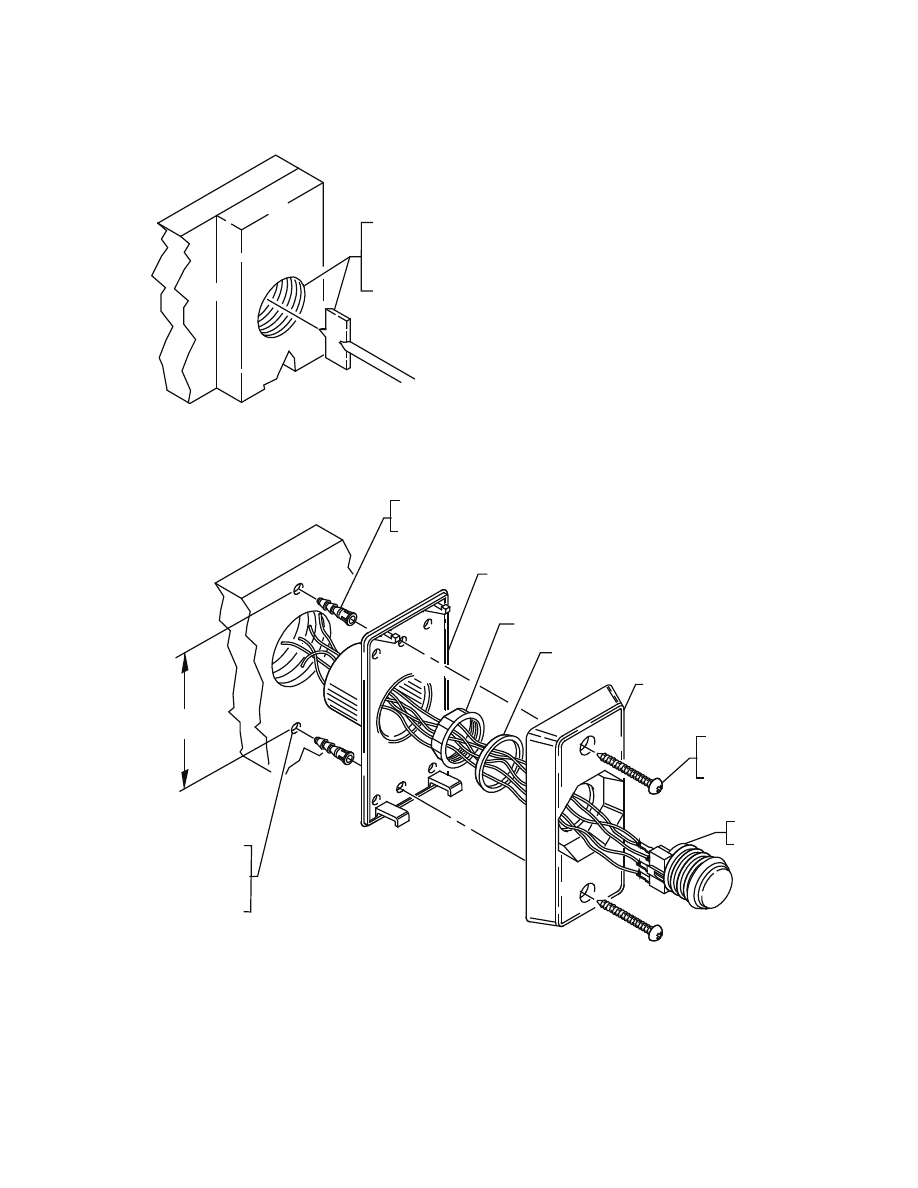

INSTALLATION PROCEDURE
DIRECTLY TO WALL OR DOOR CASING
USING A SPADE BIT, DRILL A
1.5 in.(38mm) HOLE, PULL
WIRE THROUGH AND COMPLETE
INSTALLATION AS SHOWN.
ANCHOR (2) PROVIDED FOR MASONARY
OR WALLBOARD SURFACE ONLY
BACKPLATE
RETAINING NUT
WASHER
FACEPLATE
19039 SCREW
#6 X 1-1/2 in.
(2) PROVIDED
BUTTON ASSEMBLY
(SEE PAGE 4)
FOR MASONRY OR
WALLBOARD MOUNTING
DRILL (2) 3/16 in. DIA.
HOLES ONLY)
3-9/32 in.
STEP 1
STEP 2
G
C
