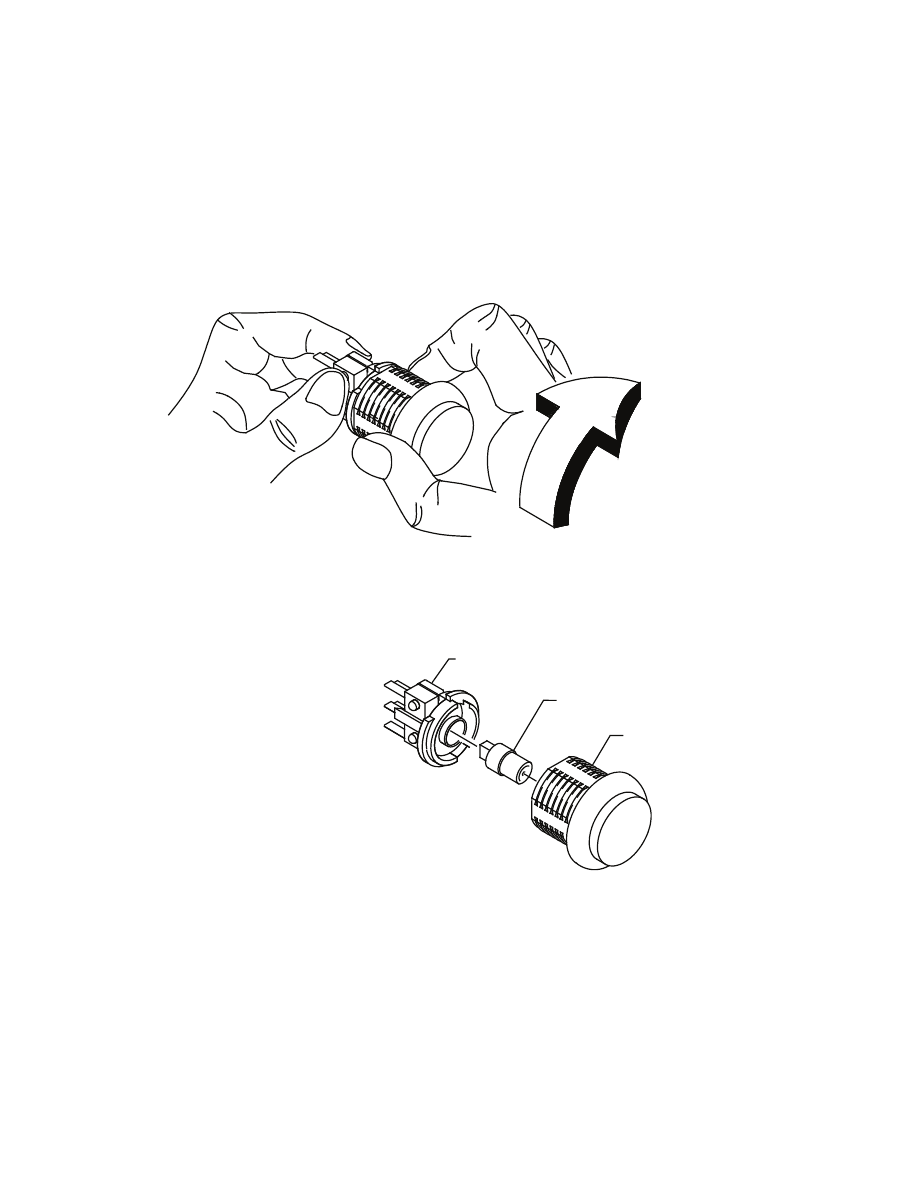

LAMP REPLACEMENT
F
O
LAMP HOLDER ASSEMBLY
24 VDC LAMP STD.
BUTTON ASSEMBLY
NUT
W
F
GRASP SWITCH HOLDER ASSEMBLY
AS SHOWN. USING OTHER HAND
ROTATE BUTTON 1/4 in.
CLOCKWISE AND SEPARATE THE TWO
PIECES. PULL LAMP STRAIGHT OUT.
STEP 1
INSERT NEW LAMP AND COMPLETE
INSTALLATION AS SHOWN ABOVE BUT
ROTATE COUNTER-CLOCKWISE TO LOCK
THE PIECES TOGETHER.
STEP 2
F
REPLACEMENT LED
PIN
12 VDC RED
10132
12 VDC BLUE
10136
24 VDC RED
10131
24 VDC BLUE
10135
