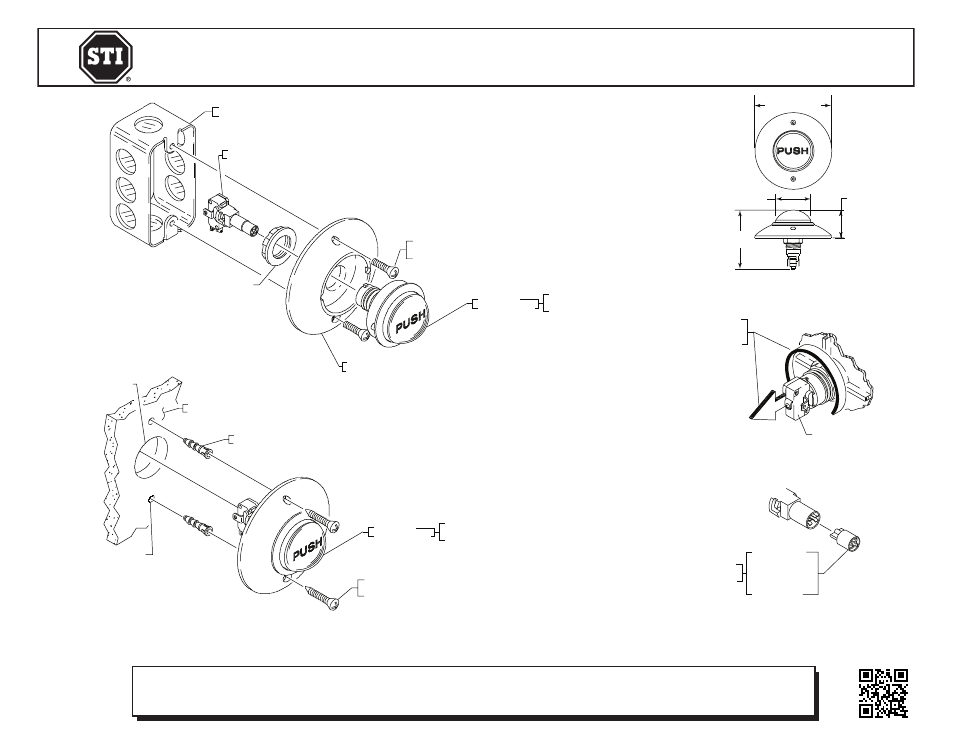

INSTALLATION OF STOPPER® STATION ROUND ILLUMINATED MOMENTARY BUTTON

All specifications and information shown were current as of publication, and are subject to change without notice.

70107-IS JAN2007



STANDARD ELECTRICAL
OUTLET BOX

SWITCH AND
BULB ASSY.

RETAINING NUT

TRIM BEZEL
(WHITE ONLY)

19010 SCREW
#6-32 x 1 in.
(2) PROVIDED

ILLUMINATED
SWITCH ASSEMBLY

SSR-2107 GREEN
SSR-2007 RED
SSR-2407 BLUE

4

PRODUCT DIMENSIONS

2.06 in.(52mm)

3.45 in.

(88mm)

1.62 in.(41mm)

4.50 in.(114mm)

D





GRASP SWITCH ASSY. AND

ROTATE SWITCH

COUNTERCLOCKWISE

AND PULL OUT

GRASP SWITCH ASSY. HERE

2





INSTALLATION AND REMOVAL

OF SWITCH ASSEMBLY

REPLACEMENT

BULB PART

NUMBERS

10140 12V BLUE
10141 24V BLUE
10142 12V GREEN
10143 24V GREEN
10144 12V RED
10145 24V RED

D





DRILL 1 1/2 in. DIA. HOLE

3/16 DIA. HOLE

WOOD, PLASTER OR
MASONRY SUBSTRATE

19018 ANCHOR
(2) PROVIDED

19039 SCREW
#6 x 1 1/4 in.
(2) PROVIDE

ILLUMINATED
SWITCH ASSEMBLY

SSR-2107 GREEN
SSR-2007 RED
SSR-2407 BLUE

S



STANDARD INSTALLATION

OPTIONAL INSTALLATION

BULB REPLACEMENT

NOTE: Illuminated button Includes one

Form “C” contact rated at 10 amp @

125/250 VAC, 1/2 HP 30 VDC, 6A.

Electronic warranty form at www.sti-usa.com/wc14
