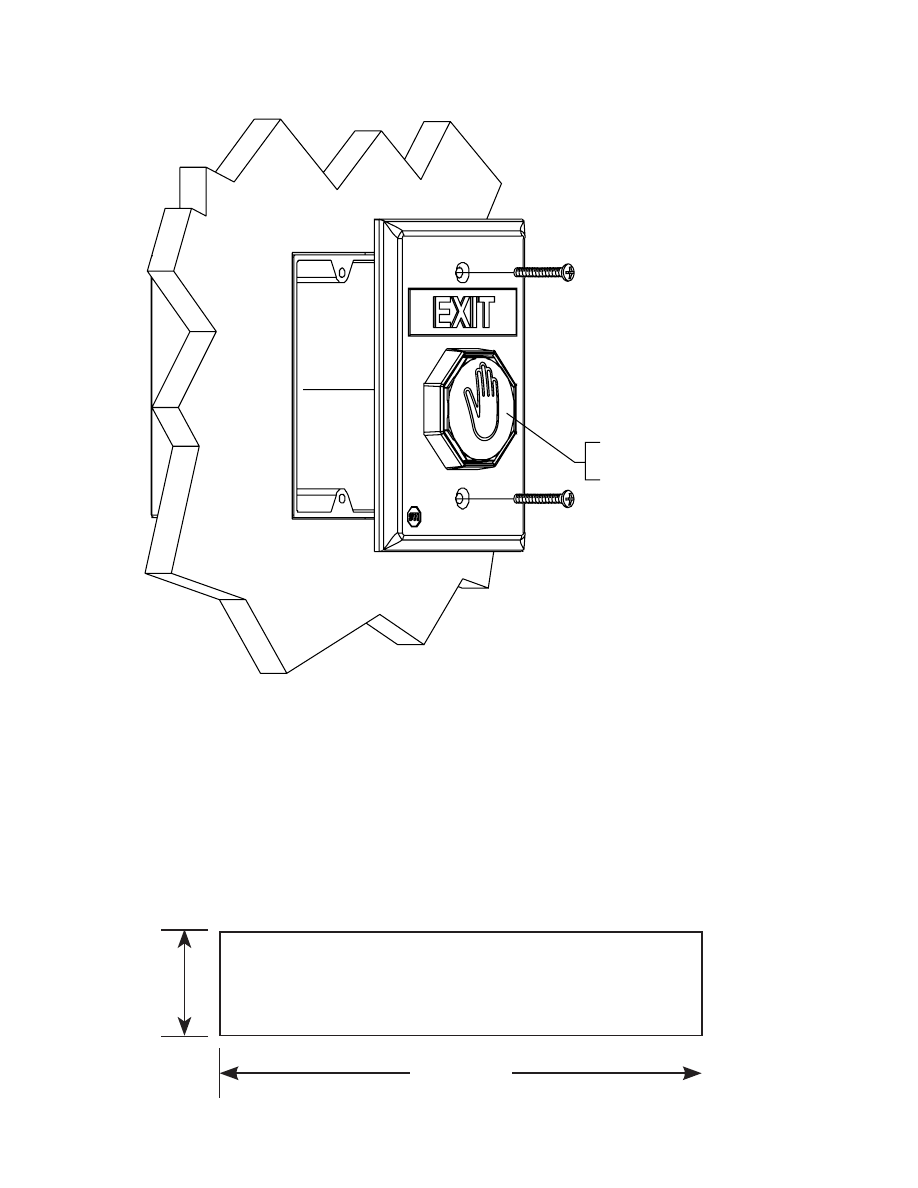

5. MOUNT BUTTON ONTO ELECTRICAL BOX
- 6 -
4.80 in.
(122mm)
3.22 in.(82mm)
6.31 in.(160mm)
.75 in.
(19mm) .77 in.
(20mm)
4.80 in.
(122mm)
3.22 in.(82mm)
6.25 in.(159mm)
.75 in.
(19mm) .77 in.
(20mm)
POWER IN
12-30 VDC/VAC
œ +
A
COLOR CODE:
RED
BLACK
GREEN
BLUE
WHITE
+12 VDC
-12 VDC
N.O.
COM
N.C.
INSERT PLUG INTO SWITCH WITH
RIBS IN THIS DIRECTION
DETAIL A
POWER
IN
12-30 VDC/
VAC œ +
NC
COM
NO
MAG LOCK
UB-1L LED PCB
UL Listed
NORMAL POSITION BUTTON ACTIVATED
MAGNETIC LOCK
BUTTON LAMP
MESSAGE LAMP
ON
GREEN
OFF
OFF
RED
ON
+
+
+
UB-1L LED PCB
NYLON WASHER
SELF TAPPING SCREW
1
2
3 4
SCREWDRIVER
Power In
12œ30 VDC/VAC
Safety Tech. Int·l Inc. P/N UB-11. Ver 1.0 wwyy
DIFFUSER
ALIGN TABS
TO NOTCHES
ON BUTTON
LENS
SWITCH NUT
DIFFUSER
MESSAGE LENS
BUTTON LENS
CONTACT LATCH TIME ADJUSTMENT:
CLOCKWISE - LONG
COUNTERCLOCKWISE - SHORT
RANGE: ~0.5 ~ 60 sec.
ACTIVATION RANGE ADJUSTMENT:
CLOCKWISE - CLOSE
COUNTERCLOCKWISE - FAR
RANGE: ~0.4 ~ 4 INCHES
~1 ~ 10 CM
12-24VDC Power Supply
19085 #6 - 32 x 1 in. OVAL
HEAD MACHINE SCREW
(2) PROVIDED
GREEN
BLUE
WHITE
BLACK
RED
N.C.
COM
+12VDC
GND
N.O.
EXIT
DEVICE
INPUT
UB-1TF LED
Message lit with button LED red
GREEN
BLUE
WHITE
BLACK
RED
N.C.
COM
+12VDC
GND
N.O.
EXIT
DEVICE
INPUT
UB-1TF LED
Message lit with button LED red
GREEN
BLUE
WHITE
BLACK
RED
N.C.
COM
+12VDC
GND
N.O.
EXIT
DEVICE
INPUT
UB-1TF LED
Message lit with button LED green
GREEN
BLUE
WHITE
BLACK
RED
N.C.
COM
+12VDC
GND
N.O.
EXIT
DEVICE
INPUT
UB-1TF LED
Message lit with button LED green
6. CUSTOM LABELS
To create your own custom label, size to fit in .48h x 2.23w as shown below.
Also available online at: www.sti-usa.com/ublabel
2.23 in.
.48 in.
