STI UB-2PN - Manual (Page 4)

- 4 -

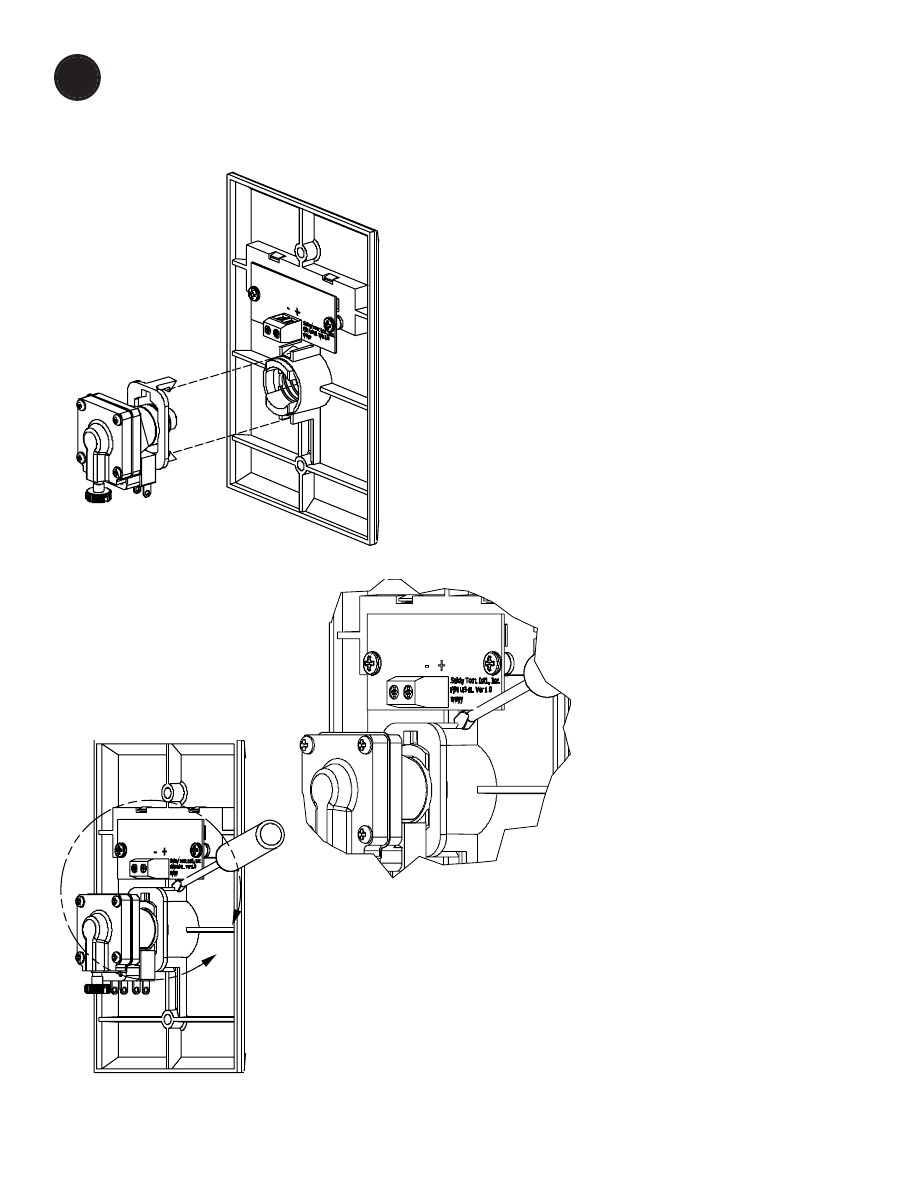

INSTALL
To attach, align tabs (as shown)
and gently snap top, then bottom.
Be sure to hear BOTH tabs snap
into place. Contacts can be rotated
180° if desired.
INSTALL OR REMOVE CONTACT BLOCK
REMOVE
To remove, use a
small flat blade
screwdriver.
Position screwdriver
blade under tab and
gently rotate
screwdriver until tab
disengages. Repeat
for opposite tab.
3
POW
ER IN 12-30
VDC/
VAC
POWER IN
12-30 VDC/VAC
A
BUTTON ACTIVATED
M
POWER IN
12-30 VDC/VAC
BUTTON ACTIVATED
M
CONTACT INFORMATION
CONTACT REMOVAL
DETAIL A
