Removing the cpu fan – Acer 7715Z User Manual
Page 88
78
Chapter 3
Removing the CPU Fan
1. See “Removing the Thermal Module” on page 76.

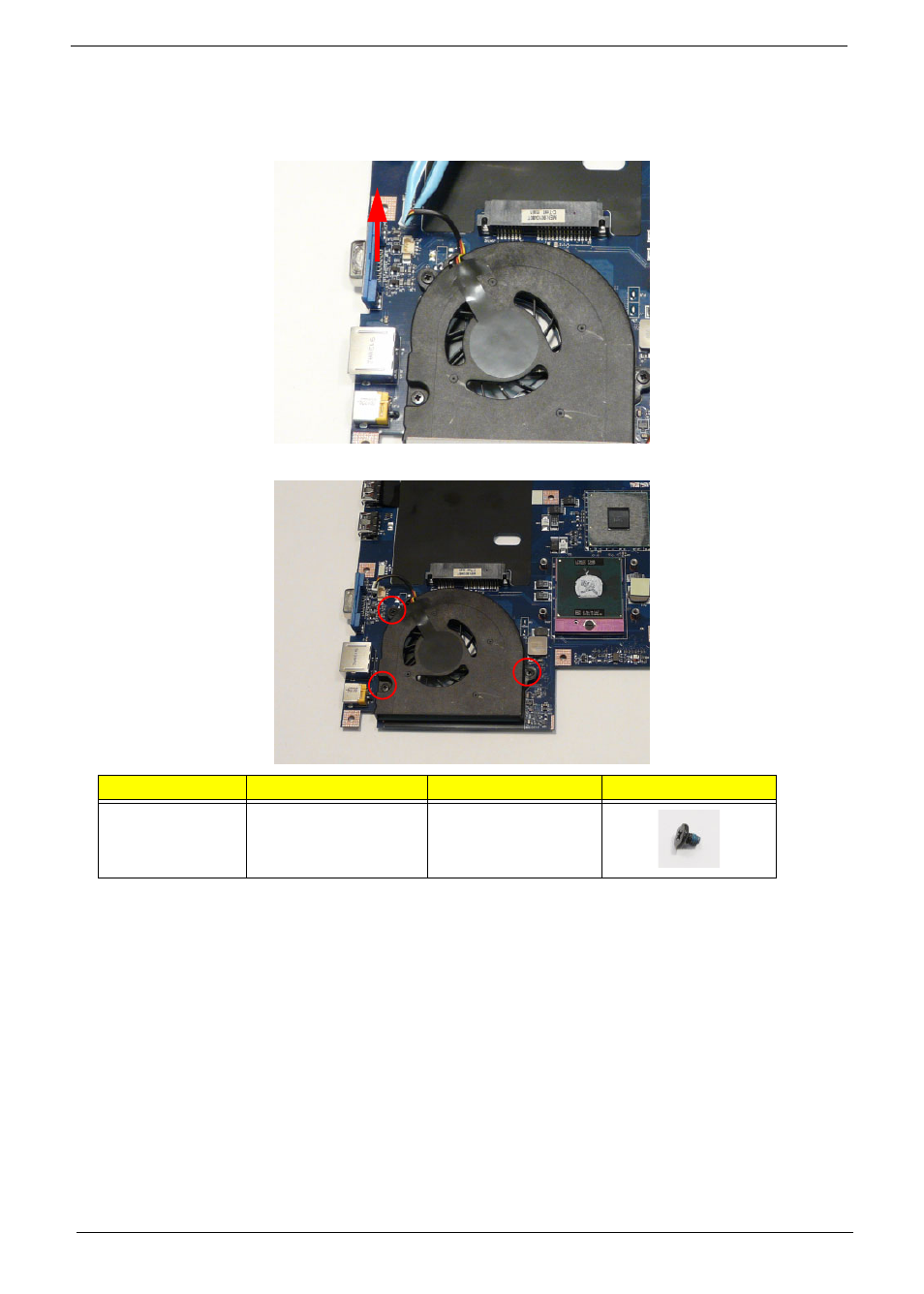

2. Disconnect the Fan cable from the Mainboard as shown.
3. Remove the three securing screws from the Fan Module.
Step
Size
Quantity
Screw Type
CPU Fan
M2*3
3
