Acer 7715Z User Manual
Page 71
Chapter 3
61

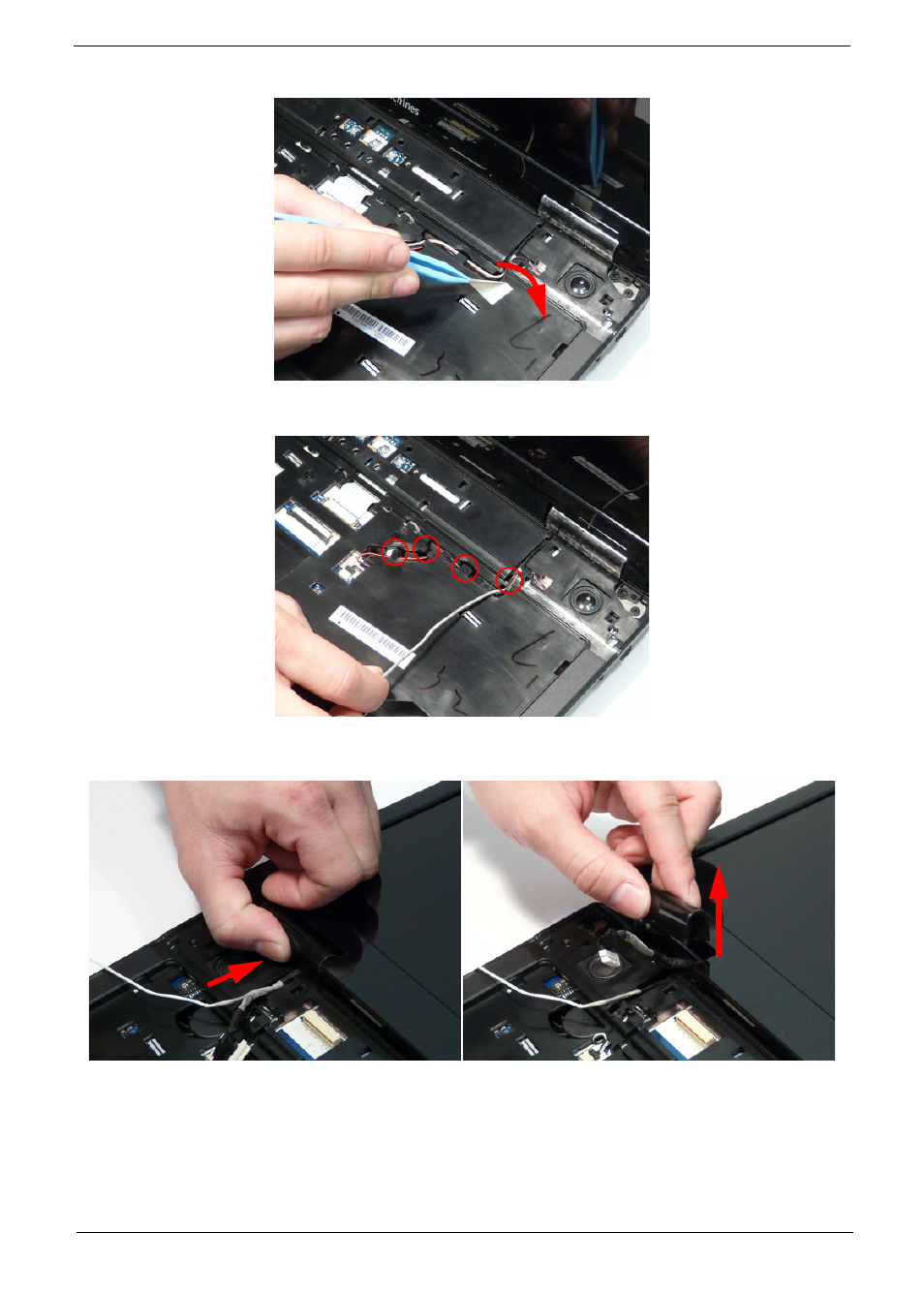

7. Remove the adhesive tape securing the Antenna cable to the Upper Cover.
8. Remove the black Antenna cable from the cable channel as shown. Ensure that the cable is completely free of
the retaining clips all the way to the hinge well.
9. Open the LCD Panel to the full extent to expose the Hinge Covers.
10. Press the left side Hinge Cover inward, as shown, and lift to remove the cover from the chassis.
11. Repeat the process for the right side Hinge Cover.
