1 Sabine, Inc.
POWER INPUT 230 VAC 50/60HZ 0.06A 10W
POWER INPUT 230 VAC 50/60HZ 0.06A 10W

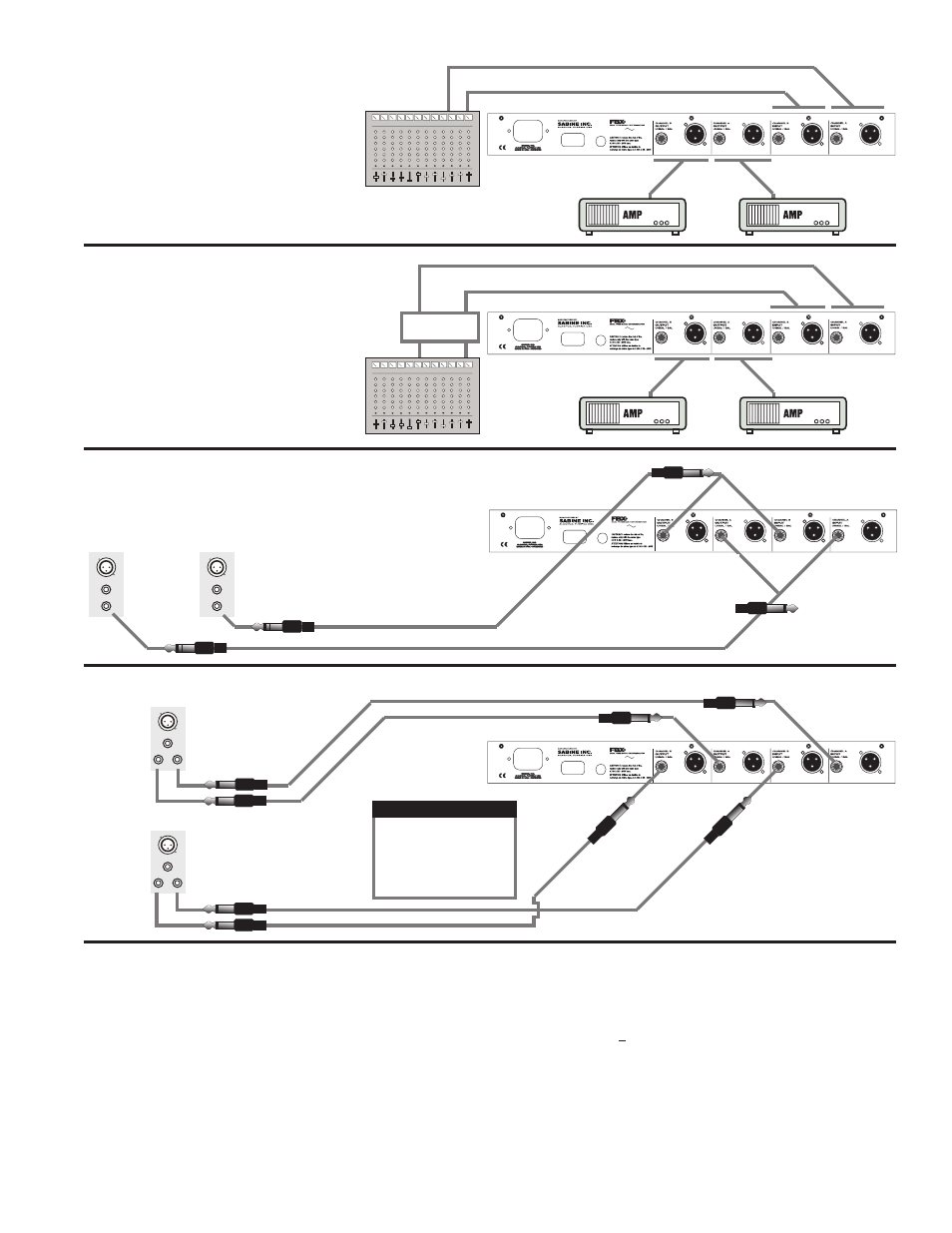

SeCtIon two — APPlICAtIonS
2.2. FBX Setup for entire Mix
2.1. FBX Setup for Monitors
2.3. FBX Setup for Single Insert Point
2.4. FBX Setup for Insert Send & return
right Main Send
left Main Send
Ch. B
IN
Ch. A
IN
All other Signal
Processing
Ch. B
OUT
Ch. A
OUT
FILTERS
• 12 independent digital notch
filters per channel, controlled au-
tomatically from 40 Hz to 20 KHz.
• Filter width: user-controllable - either
1/10 or 1/5 octave*, constant "Q"
• Resolution: 1 Hz
• Time required to find and eliminate
feedback: 0.4 seconds, typical @ 1
KHz
• Number of Dynamic vs. Fixed
filters per channel: user select-
able. Last configuration stored in
memory.
INPUT/OUTPUT**
• Input/Output Maximum Signal
Levels: Balanced +18dBV peak,
unbalanced +12 dBV peak
• Output Drive: Unit will perform
as specified driving a load >600
Ohms
• Input Impedance: Balanced or un-
balanced >40K Ohms, PIN 2 high
• Output Impedance: Balanced or
unbalanced 150 Ohms nominal, PIN
2 high
• Bypass: True power off bypass
• Headroom: +14 dB peak @ 4 dBV
nominal input, balanced
• I/O Connectors: XLR-3 and 1/4"
TRS
PERFORMANCE***
• Frequency response: 20 Hz – 20
KHz +/- 0.3 dB
• Gain matching: +/- 0.2 dB
• Spectral Variation: + .25 dB, 20
Hz to 20 KHz
• SNR - Dynamic Range: >108 dB
• THD: .005% at 1 KHz
< 0.01% 20 Hz – 10 KHz
< 0.025% 10 KHz – 20 KHz
• Dynamic Range: >105 dB
POWER INPUT
• 115 VAC: 100 – 130 VAC 50/60
Hz
• 230 VAC: 200 – 240 VAC 50/60
Hz
FUSE
• 115 VAC, 0.1 A, 10 W, 0.160 A SB
fuse
• 230 VAC, 0.06A, 10 W, 0.080 A T
fuse
DIMENSIONS
• 1-U rack mount; 19 x 1.75 x 6.25 in.
nominal (rack mountable); 48.3 x 4.5
x 15.9 cm nominal
WEIGHT
• 8.0 lbs. (3.6 kg) nominal
OPERATING TEMPERATURE
• Safe operating temperature: -15 to
+50 degrees centigrade ambient
temperature (5 to 122F)
SeCtIon tHree — enGIneerInG SPeCIFICAtIonS
TS or TRS Connectors
Ch. B OUT
Ch. A OUT
Ch. B IN
Ch. A IN
TS or TRS Connectors
Ch. 2
< >
Insert
Send
Insert
Return
Ch. 1
< >
Insert
Send
Insert
Return
IMPORTANT NOTE
• Use a ¼-inch TRS plug for
balanced sends/inserts.
• Use a ¼-inch TS plug for
unbalanced sends/inserts.
< Low Z >
< High Z >
< Insert >
Ch. 1 Ch. 2
TRS Connector
TRS Connector Y Insert Cords (TRS to TS + TS)
Ch. B OUT Ch. B IN Ch. A IN
TS "Y" Connector
Ch. A OUT
TS "Y" Connector
Monitor Mix 1
Monitor Mix 2
Ch. B
IN
Ch. A
IN
Ch. B
OUT
Ch. A
OUT
Tests performed using an Audio Precision
System One model 322 or equal.
*Below approximately 200 Hz the feedback filters
become slightly wider to increase the feedback and
rumble capture speed at these low frequencies.
