7.3.2 PS rigidly mounted on a wall or a ceiling (vertical or horizontal)
Required items
• 1 x VNI-UBRK (8 / 10 / 12) (allows all angles to be implemented)
• 4 x 12mm diameter screws (not provided)
IMPORTANT
Ensure that the surface – wall or ceiling – is strong enough to hold PS cabinet weight and
that the screws 12mm diameter and corresponding plugs required to fix the “U” bracket
on the wall or under the ceiling are properly dimensioned.
Procedure
• 12mm diameter screws (not provided) are required to secure the “U” Bracket on the wall or
ceiling;
• PS8: remove the two screws on each upper and lower side of PS8;
• PS15R2: remove the four TORX screws holding connector plates on both sides of PS15R2;
• Fill each screw hole with Locktite 243 or equivalent;
• Position the PS inside the “U” Bracket to desired angle; “U” bracket oblong holes must be
properly aligned with panels holes;
• Use the screws and washers from VNI-UBRK kit to connect “U” bracket to cabinet.

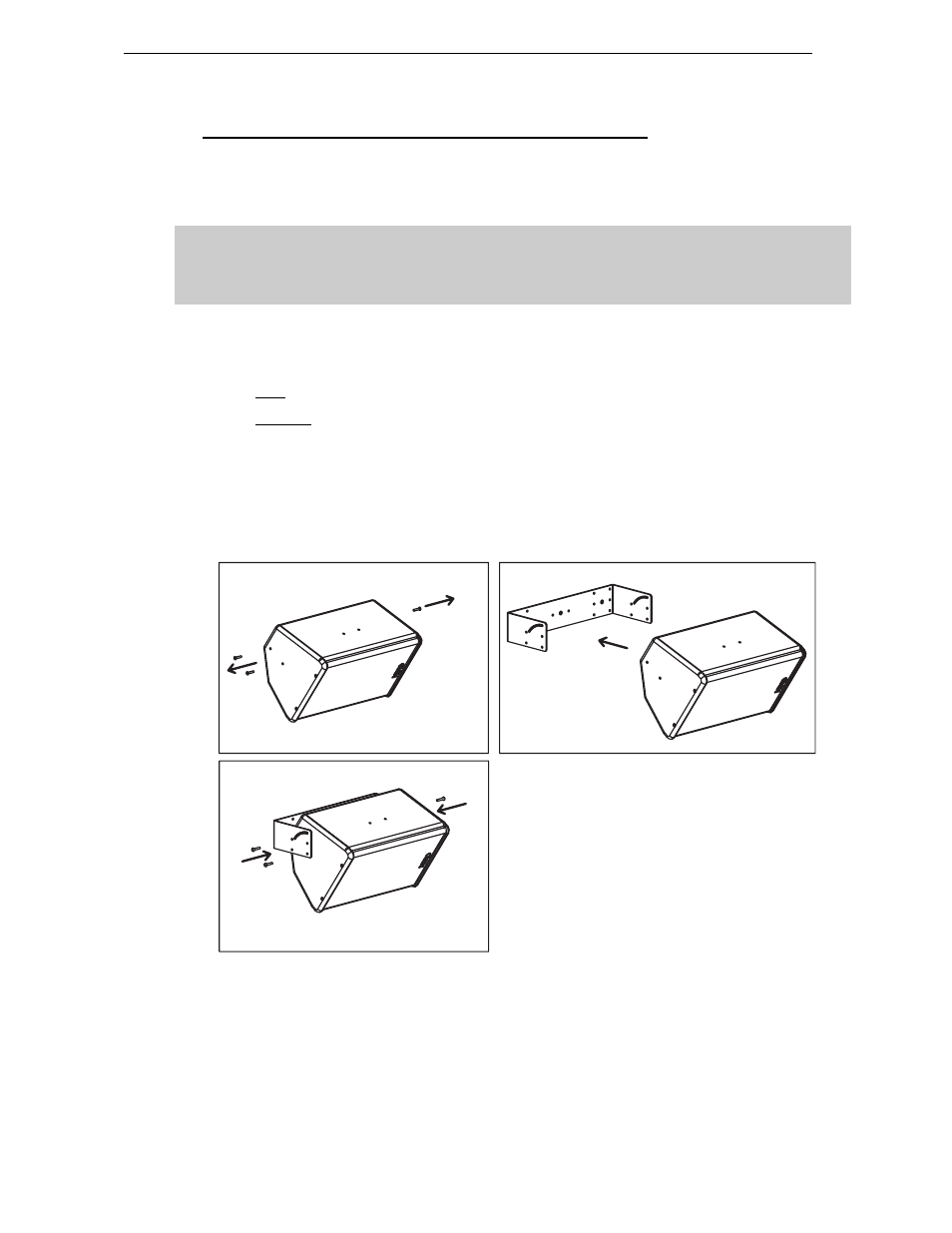

“U” BRACKET MOUNTING PROCEDURE FOR PS8
