Page 4 AXIS 221/223M Installation Guide

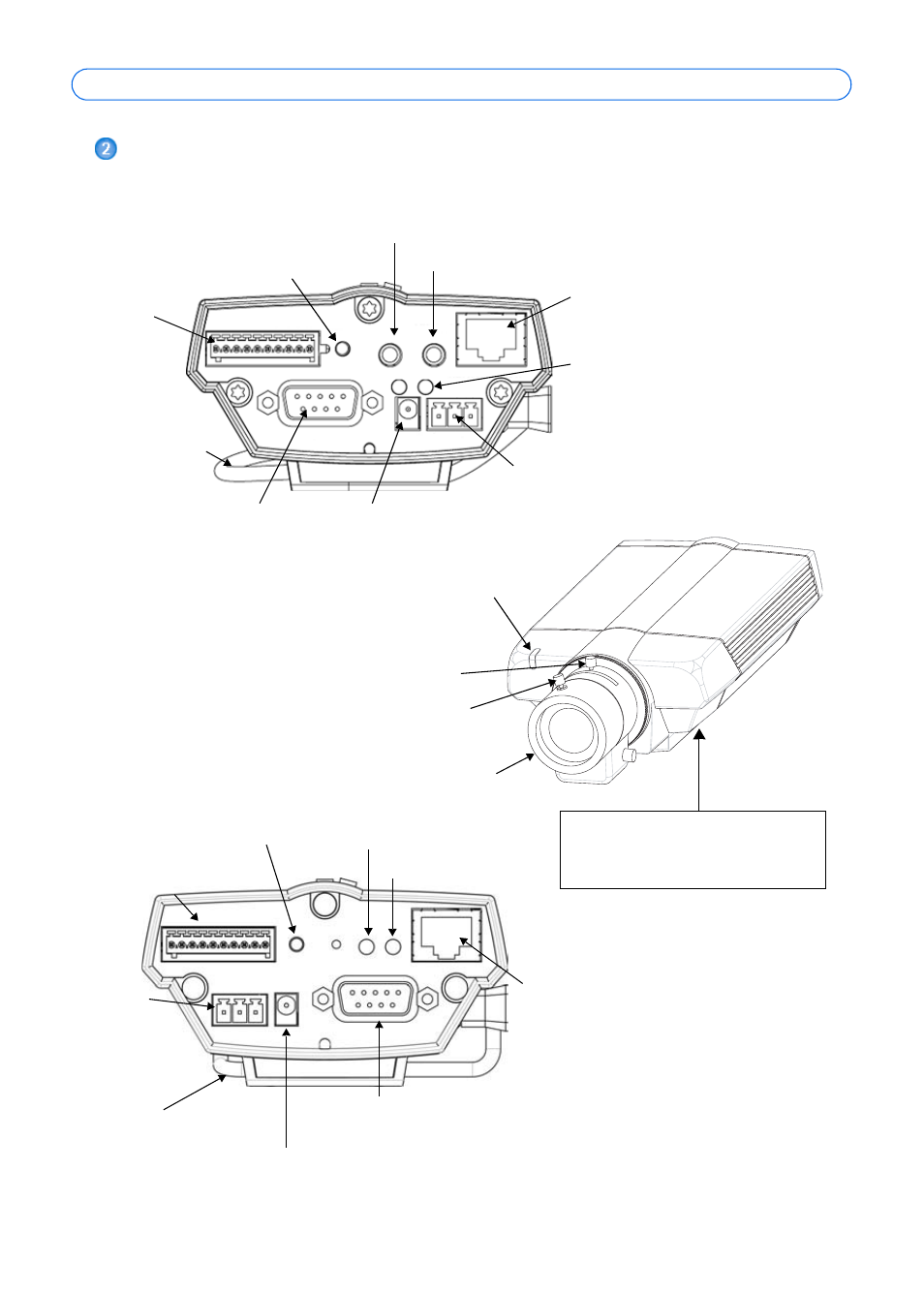

Hardware overview
Dimensions
HxWxD = 49 x 88 x 200mm (1.9" x 3.5" x 7.9")
Weight = 620g (21.9oz) (power supply not included)
Status
indicator
Zoom puller
(Tele/wide)
Focus puller
DC-Iris
PS-K power adapter
connector
10-pin I/O terminal
connector
Power
Power indicator
Network indicator
Reset/Control
button
connector
RS-232
connector
block
DC-Iris
control cable
DC-Iris
control cable
PS-K
connector
RS-232
connector
Network
(also PoE)
connector
Power and network indicators
Reset/Control
button
Audio out
Audio in
connector
10-pin I/O
AXIS 223M - Rear view
AXIS 221 - Rear view
AXIS 221/223M
Front view
Power connector
block
terminal
Product ID & Serial number (S/N).
The serial number may be
required during the installation.
Network
(also PoE)
connector
Network
(also PoE)
connector
power adapter
