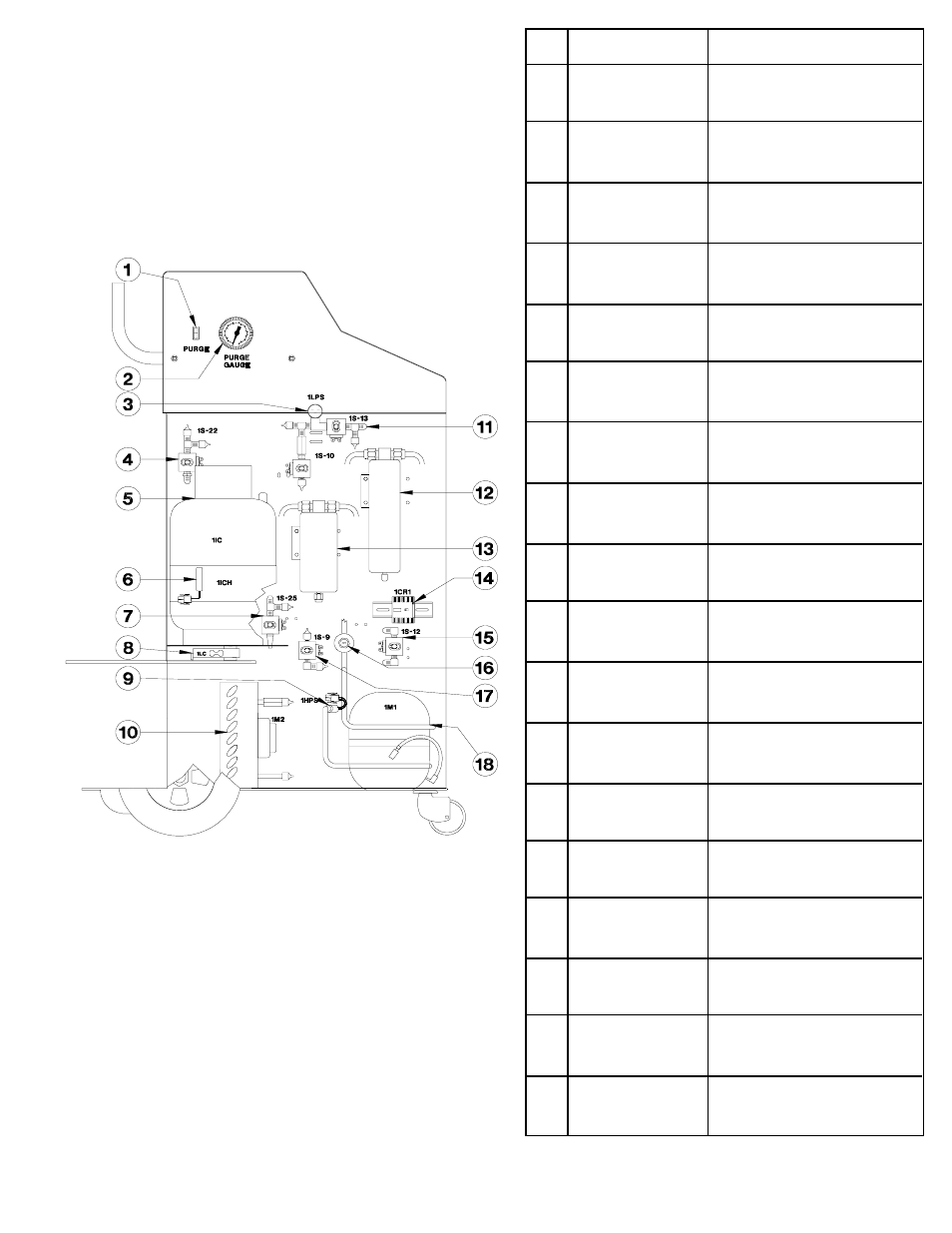

PARTS LIST - R12 SIDE
AC2880
P/N DESCRIPTION
1 024-80035-00 Rocker Switch SPST
(Mom-On)
2 026-80071-02 Purge Gauge
0-500 psig
3 360-81309-00 Low Pressure Switch
3psig - 8InHg
4 360-81436-00 Solenoid 1S22 Assy
5 360-81428-00 Internal Cylinder Assy
(DOT)
6 360-81426-01 Assy Heater Belt 120V
7 360-81385-00 Solenoid 1S25 Assy
8 031-80000-00 Load Cell 35Kg
9 360-81307-00 High Pressure Switch
261 psig
10 360-80280-00 Condenser Assy
11 360-81434-00 Manifold Assy R12
12 026-80077-00 Combo Filter 3/8 Flare
(Long)
13 026-80069-00 Combo Filter 3/8 Flare
(Short)
14 024-80037-00 Contactor ½ HP 120V 3
NO & 1 NC
15 360-81381-00 Solenoid 1S12 Assy
16 360-81389-00 Tube Assy Compressor
Inlet R12
17 360-81379-00 Solenoid 1S9 Assy
18 360-81356-01 Compressor Assy 120V
